Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-116
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Housing Dimension: |
335 * 335 * 935 Mm |
Housing Color: |
Bule, Orange, White |
Arm Length & Height: |
100* 45 Mm/ 80*45mm(swing Out ) |
Arm Length: |
Max. 6mtrs |
Housing Material: |
2mm Cold Roller Steel Plate |
Product Name: |
CE Approved Intelligent Barrier Gates Automatic Telescopic Boom Barrier |
Housing Dimension: |
335 * 335 * 935 Mm |
Housing Color: |
Bule, Orange, White |
Arm Length & Height: |
100* 45 Mm/ 80*45mm(swing Out ) |
Arm Length: |
Max. 6mtrs |
Housing Material: |
2mm Cold Roller Steel Plate |
Product Name: |
CE Approved Intelligent Barrier Gates Automatic Telescopic Boom Barrier |

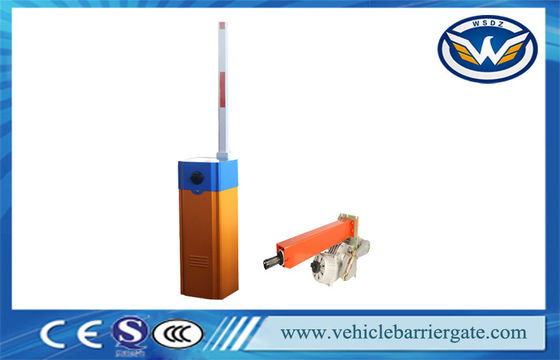

CE Approved Intelligent Barrier Gates Automatic Telescopic Boom Barrier
Specifications:
| Working temperature | -40°C to +75°C |
| Power supply | 220V±10% / 110V±10% |
| Rated power | 120W |
| Opening time | 1s, 3s, and 6s |
| Net weight | 55KGS |
Model Selection and Differences
Model | Boom Shape | Max Boom Length | Speed |
| WST-115 | Straight arm | 3M | 1S |
WST11561 | 180 degree, Articulated boom | 5m | 6 seconds |
WST11562 | 180 degree, Articulated boom | 3m | 3 seconds |
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Basic Features:
1. By-security. The barrier gate will automatically go back when meet obstacles during closing.
2. AC motor is more powerful and no maintenance.
3. Barrier Beam/arm can be chosen from 3 meters to 6 meters, and barrier gate
4. closing time is also arranged from 1 second to 6 seconds.
5. The barrier gate can be both right-installed and left-installed.
6. All the operation process is soft without any noise and shaking.
7. Infrared photocell interface, Loop detector interface and IC system
8. interface are reserved for the other functions.
9. Green light and red light are used inside for indication the position of the beam.
Specifications
Model | WSTP115 |
Working Temperature | -40℃～+75℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 48kgs |
Speed | 1S,1.8S,3S, 6S |
Max boom length | 6 meters |
Motor Rotational speed | 1400rmp |
Protection Degree | IP44 |
Service Items
1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
Communication with customers
1) Q: Motor running but automatic barrier gate arm no action?
A | Reason | Solution |
1 | Barrier arm at 45° position where is hard to move | Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
2 | Tension of balancing spring not suitable | Adjust spring exactly |
3 | Low working voltage | Check the voltage and power |
2) Q: When opening/closing, automatic barrier gate arm cannot reach right position (90° vertical
& 180° horizontal)?
A. | Reason | Solution |
1 | Length adjustment of connecting rod not correct | Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
2 | Nuts on the limit switch loose | Tighten the nuts when arm at 90° vertical and 180° horizontal position |
