Wonsun will attend CPSE Shenzhen in October, 2023   A variety of new products will be released. Welcome to visit our booth Room 3B25, hall 3 on 25th-27th 2023.

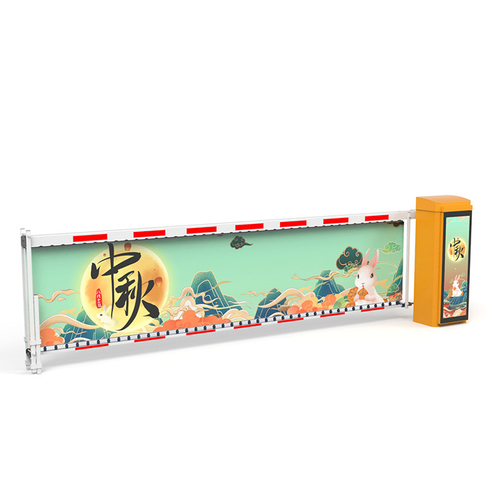

Advertising 24V DC Advertising Parking Barrier Gate Factory Price Brushless DC Motor Advertisement Barrier​ Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely. Email: keira@wonsunbarrier.com Skype: zimin1314 Whatsapp: +86 185 0748 1610     Technical parameters   1 Working temperature(motor): -35℃~+85℃ 2 Rated voltage:DC24V 3 Running speed:3s-10s 4 Rated current:9.5A 5 Rated power:250W 6 No-load speed:2500rpm 7 Rated speed:1800rpm 8 Output Power:120N.m 9 Relative humidity:≤90% 10 Remote control distance:≤100M(in the open place) 11 IP Degree:IP44 12 Max length of arm:4.5M     Features   1 The running speed can be adjusted from 3sec to 10sec. 2 Open the barrier by motor wheel when power off.Automatically reset when power on. 3 Curved crank arm three-link movement structure,operation stable 4 Wireless remote control open and close. 5 Arm auto reverse( force adjustable) 6 Infrared photocell is available 7 Loop detector is available 8 Connect parking management system open, close signal.(request open and close signal) 9 Traffic light port(2A12V/220VAC, less than 40W traffic light can be used) 10 Offering limit signal for car parking management system( output COM/NO/NC) 11 Delay closing arm function 12 RS485 or CAN internet communication interface( no need to add module) 13 Counting interface 14 24 backup battery interface(can be connected with solar power)       Arm length speed comparison table   Menu Parameter   Unit Arm length UP DOWN H00-00 H00-02 H00-04 H00-01 H00-03 H00-05 4.5M 30 35 8 30 42 8 3.8M 35 35 8 35 42 8 3M 65 30 10 60 35 10 (the parameter is based on the company’s arm)   RFQ: Q: What's the order process? A: Follow the steps on below to complete your order. - 1. Inquiry Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request -2. Quotation Official quotation form with all clear specifications according to the order -3. Invoice Invoice will be issued once the quotation is confirmed. -4. Payment Payment shall be issued once the invoice issued. Full payment is acquired. -5. Production Bulk production shall be taking 15-25 working days. -6. Delivery by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.     Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely. Email: keira@wonsunbarrier.com Skype: zimin1314 Whatsapp: +86 185 0748 1610 Max. 6m 24V 5 Million Automatic Barriers Prices Brushless DC Motor For Access Control System Max. 6m 24V 5 Million Automatic Barriers Prices Brushless DC Motor For Access Control System Max. 6m 24V 5 Million Automatic Barriers Prices Brushless DC Motor For Access Control System

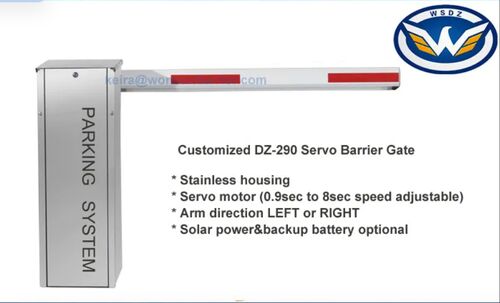

Stainless Barrier 200W Servo Motor Traffic Barrier Gate 10 Millions Lifetime With Anti-collision     Technical Parameter List   working temperature -50℃~+85℃ -50℃~+85℃ power supply 24VDC, 100/240VAC, 50/60Hz 24VDC, 100/240VAC, 50/60/Hz Open/close speed 0.9sec to 8sec (adjustable) 0.6sec to 8sec (adjustable) Rated power 200W 400W Driving method Servo motor servo motor Humidity ≤90% ≤90% Remote control distance ≤100m (open place, sunny day) ≤100m ( open place, sunny day) Protection grade IP55 IP55 Motor No-load speed 3000r/min 3000r/min Max boom length 3M-6M 2.5M-6M       Features:   1. Open and close speed adjustable 2. Arm direction Left and Right can change easily 3. When power off, manual open and close arm, and lock itself. 4. Wireless remote 5. Photocell I0 port output 6. Loop detector anti-collision I0 output 7. Open and close control input 8. 12V traffic light output 9. Traffic light signal output 10. Open and close limit signal output 11.Counting (fleet) input RS485 communication input 12. 24V battery input port 13. Delay close arm function(1-300 sec. Adjustable) 14. Open and close arm speed deceleration function 15. One-key setting arm type with corresponding speed 16. Arm auto reverse function ( Force adjustable) 17. Anti-collision alarm function (additional sensors and alarms are required) (the parameter is based on the company’s arm) Installation,dismantlement and adjustment of spring The steps as follows: 1. please keep the boom in the vertical(boom open)position, then tighten 2pcs M12 lock-nut 2. According to the balance state of the brake lever, repeatedly adjust the balance spring to adjust the tightness of M8*140mm, and then manually put the brake lever to a 45 degree angle to stop it. 3. For the three springs, three springs are required to coordinate adjustments to make the brake lever rise/drop smoothly. 4. The swing of the brake lever during lifting and lowering is shown in the figure above. When lifting the lever, the swing of the brake lever is caused by the spring is too tight, and it can be adjusted repeatedly. , Tighten the spring repeatedly.     FAQ   1-Can you install using loop detector or pressure sensor on it? Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.   2-How about the guarantee and after sale service? We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.   3-How long is the leading time? For standard item 10-50 sets:5 working days 50-100 sets:7-10 working days 200-500 sets:10-15 working days For special item, or need custom design package or logo, need 3-10 working days longer.   4-How about the payment terms? TT,western union,our company already joined the trade assurance,it will highly protect your order security.   5-How do you send the products to me,how long? As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.   6-What is the package of the barrier gate? Inside with a carton package.Then outside,there are wooden crate package.         WONSUN Barrier Series: Click the picture and leave your message. Classic AC barrier Economical DC Barrier Hot Sale DC Barrier Hot Sale DC barrier High-end Servo Barrier         Safety Precautions   To ensure your safe operation, please strictly in accordance with the provisions of this manual. To avoid personal injury, it is strictly forbidden to open the door or cover when barrier working. The barrier housing must be connected to the ground to prevent inductive electric shock. It is strictly forbidden to stand, walk or place objects under the boom/ arm when barrier working. The boom/arm and the spring have been matched to the balance state before goods leave out our factory. To avoid the danger of the balance being lost, the length and weight of the boom/arm can not be increased or decreased at random. If you need to change it, please ask the professional for advice. Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely. Email: keira@wonsunbarrier.com Skype: zimin1314 Whatsapp: +86 185 0748 1610 Wechat: Keira_Xia   Stainless Barrier 200W Servo Motor Traffic Barrier Gate 10 Millions Lifetime With Anti-collision Stainless Barrier 200W Servo Motor Traffic Barrier Gate 10 Millions Lifetime With Anti-collision Stainless Barrier 200W Servo Motor Traffic Barrier Gate 10 Millions Lifetime With Anti-collision
