2 Fence Vehicle Security Barriers Access Control / Roadway Traffic Gate 80w Motor

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: WSTP-120

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: 225usd

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

parking lot gate arms

,

automatic car park barriers

Housing Dimension:
320*250*944.5mm
Color:
Red, Yellow
Cabinet Material:
1.5mm Cold Roller Steel Plate
Boom Type:
Straight Arm, Folding Arm, Fence Arm, Optional
CE Certificate:
Yes
Product Name:
2 Fence Intelligent Barrier Of Access Control And Roadway Traffic
Housing Dimension:
320*250*944.5mm
Color:
Red, Yellow
Cabinet Material:
1.5mm Cold Roller Steel Plate
Boom Type:
Straight Arm, Folding Arm, Fence Arm, Optional
CE Certificate:
Yes
Product Name:
2 Fence Intelligent Barrier Of Access Control And Roadway Traffic
Description

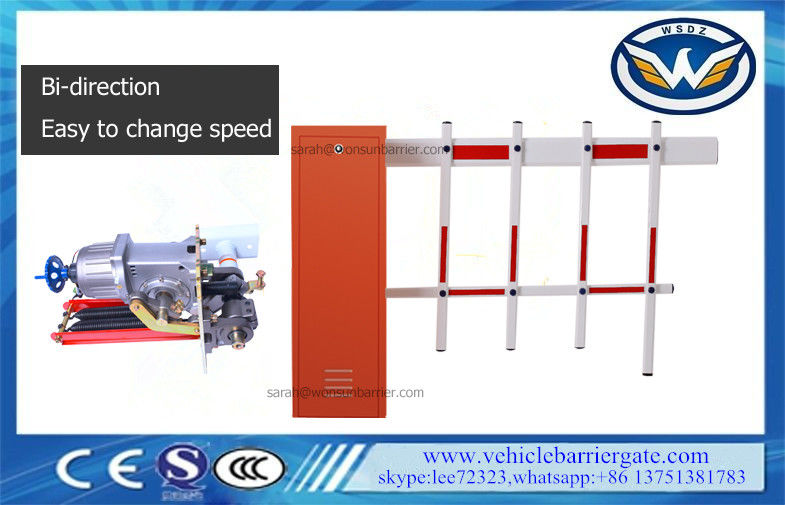

2 Fence Vehicle Security Barriers Access Control / Roadway Traffic Gate 80w Motor

2 Fence Intelligent Barrier Of Access Control and Roadway Traffic





Barrier arm lengths can be up to 4.5m, dependent upon your requirements.Asa manufacturer,we are able to offer best barriers to suit client specification, such as matching corporate colors.



Quality control is a top priority, so we are vigorously test our boom barriers to ensure long service left in the field.



The design is the result of years of experience,combining the latest technology with proven, tried and tested methods.The result is a superior product, giving long service left and peace of mind.





Technical Data



Model WSTP-120
Size 320*250*944.5mm
Rating Voltage AC 220/110V ±10%, 50/60Hz
Motor Power 80w
Speed Option from 1s to 6s
Material 1.5mm galvanized plate or cold roll plate with epoxy paint
Weight 55 KG
Operation Testing More than 2 million times
Arm Option

Straight arm, 1-6 m for option, 45*80mm or 45*100mm

Folding arm, 1-4.5 m for option, 90 degree or 180 degree

Fence arm, 1-5m for option, two fence or three fence

Working Temperature -45°C — +75°C







Features:



(1) Free-maintenance torque motor ensures 100% duty cycle operation with 2 million MTBF.
(2) Easy installation and maintenance reduces your labor cost.
(3) Anti-collision mechanism will protect the boom arm not to be damaged once boom arm was collided by vehicle.
(4) Anti-hit by pressure resistance bounce.
(5) Motor over-current protection,steady,low noise,fast speed.
(6) Manual release function.





Each barrier will include:



Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting
