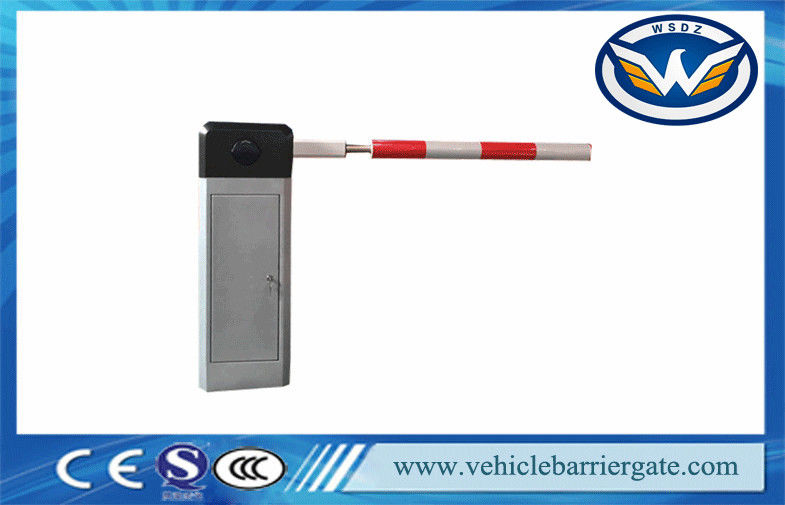

OEM Service Straight 8M Intelligent Barrier With Aluminum Alloy Boom

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

I'm Online Chat Now

OEM Service Straight 8M Intelligent Barrier With Aluminum Alloy Boom

China OEM Service Straight 8M Intelligent Barrier With Aluminum Alloy Boom supplier

Large Image :  OEM Service Straight 8M Intelligent Barrier With Aluminum Alloy Boom

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-125

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: OEM Service Straight 8M Intelligent Barrier With Aluminum Alloy Boom Time For Up/Down: 0.6s,1s,3s,4s,6s
Power Supply: 220V±10%, 110V±10%, 50/60HZ Motor Rotational Speed: 1400rmp
Relative Humidity: ≤90% Net Weight: 50KG

OEM Service Straight 8M Intelligent Barrier With Aluminum Alloy Boom



General Description

WONSUN Barrier series intelli barriers utilize innovative technology design and manufactured
with precision machinery to guarantee satisfaction in quality and reliability for years to come.
MAG intelligent barrier has been lab tested for more than 2.5 millions opening / closing and

still without any degrade in performance superb mechanical life time for heavy duty

application. It composed primarily of an electronic panel that controls the mechanical unit to

lift or release the barrier arm.




1. Manual release device to operate the barrier when power off.
2. Motor cooling fan to avoid the over-heating possibility
3. Automatic reversing when the barrier boom meets the obstruction
4. Auto closing realization through menu setting on the control panel

5. Interfaces available for infrared photocells, loop detectors, card readers,ticket dispensers, manual switch (wire control), traffic light

6. RS485 Communication Module is compatible



Application & Advantages

Wonsun barrier gate can be integrated with any vehicle access control equipment,

like UHF readers, ticket dispensers and other related car parking products.

Places like highways, toll systems, car parking lots, malls,

and other public areas needed vehicle access control.

1.durable and sturdy

2.trouble free operation

3.minimum maintenance

Package Carton or Wooden;
Trade Terms EXW, FOB, CFR, CIF are preferred
Payment Terms 100% TT before delivery or Western Union
Delivery Time

Sample:5working days;

Bulk orders: 12 to 15 days;

MOQ 1 pc
Our other products

Wonsun has other products as: tripod turnstiles, sliding gate motor,parking lock,swing gate motor, garage door opener,

pedestrian access control turnstiles and barriers,

and other related accessories.


Welcome to check our website for more information.

OEM Service Straight 8M Intelligent Barrier With Aluminum Alloy Boom



Each barrier gate will include:


1 pcs Gate Barrier

1 pcs arm boom (from 1m to 6m can customised)

1 pcs control panel(built inside)

2 pcs remote controllers

1 pcs manual book


Optional Boom


A: Booms for avoiding striking(medium-sized octagonal boom, round foam boom,elliptic boom)

B:180°articulated boom(Max 4M)

C:90° articulated boom(Max 4M)

D:2 fences boom(Max 5M)

E:3 fences boom(Max 4M)


Boom with LED lights and light colors changeable.

Light flashing pattern, speed and colors controlled by a remote control.



Anti-collision protects boom arm (optional)

Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once

boom arm was collided by a vehicle.

Safety--- Anti-hit by pressure resistance bounce

While moving down,arm will immediately go back to vertical position once it is obstructed by an

imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.

Safety--- Anti-hit by Loop Detector (Optional)

While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.

Safety--- Anti-hit by photocell (Optional)

While arm moving down, If infrared transportation between transmitter and receiver is blocked byhuman or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.

Safety--- Anti-hit by “Opening Priority”

If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by arm.

Automatically Close by loop detector (Optional)

If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered

Automatically open by loop detector (Optional)
If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered
Manually control in case of no power

Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.

Boom to open up fully or close down in case of power failure

If power is suddenly off while boom closing, boom will automatically close down fully if the angle

between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening,boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees

Anti-condensation in cold climate

The barrier remains low power consumption even without closing and opening input, which will

keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep working in frozen environment

Transparent plastic covers on Control Board

A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof, also protects operator.



Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.


Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise
