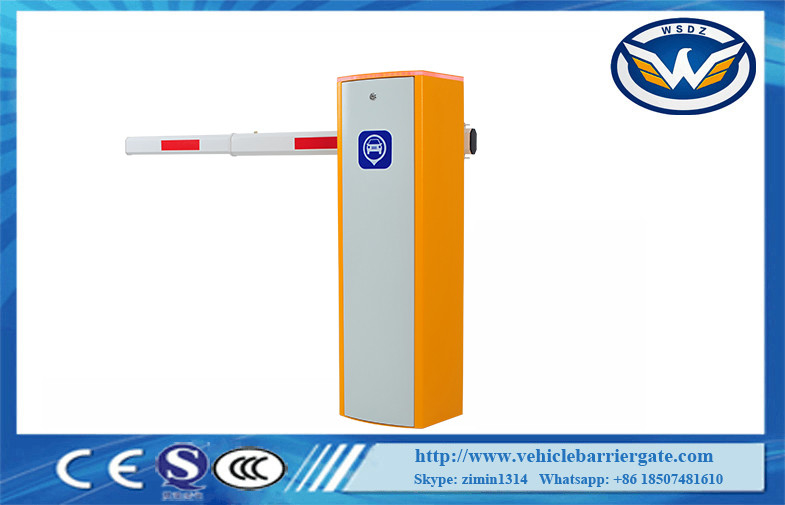

24VDC Brushless Motor Intelligent Barrier Anti Crash Parking Lot Barrier Gate

24VDC Brushless Motor Intelligent Barrier Anti Crash Parking Lot Barrier Gate
24VDC Brushless Motor Intelligent Barrier Anti Crash Parking Lot Barrier Gate
24VDC Brushless Motor Intelligent Barrier Anti Crash Parking Lot Barrier Gate 24VDC Brushless Motor Intelligent Barrier Anti Crash Parking Lot Barrier Gate 24VDC Brushless Motor Intelligent Barrier Anti Crash Parking Lot Barrier Gate 24VDC Brushless Motor Intelligent Barrier Anti Crash Parking Lot Barrier Gate 24VDC Brushless Motor Intelligent Barrier Anti Crash Parking Lot Barrier Gate

Large Image :  24VDC Brushless Motor Intelligent Barrier Anti Crash Parking Lot Barrier Gate

Product Details:
Place of Origin: shenzhen,China
Brand Name: WONSUN
Certification: CE ,ISO
Model Number: DZ-21521
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.(Vehicle Barrier Gate DC 24V Brushless Barrier Gate 6M Telescopic arm )
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 piece per month

24VDC Brushless Motor Intelligent Barrier Anti Crash Parking Lot Barrier Gate

Description
Rated Voltage:: DC24V Rated Power: 150W
Running Speed: 2.5s-8s No-load Speed: 1850rpm
Product Name: Speed Adjustable Intelligent Barrier Parking Lot Barrier Gate 24VDC Brushless Motor Anti-crash Working Temperature(motor): -30℃~+70℃
High Light:

IP54 Intelligent Barrier

,

24VDC Brushless Motor Intelligent Barrier

,

Anti crash Parking Lot Barrier Gate

Speed Adjustable Intelligent Barrier Parking Lot Barrier Gate 24VDC Brushless Motor Anti-crash





Intelligent Barrier Parameters:



Working temperature -35~+65℃
Power supply 24V DC
Open/close speed 2.5s to 6s
Rated power 150W
Driving method DC brushless motor
Output torque 59.6N.m
Protection grade IP54

Rated speed

1400rpm

Relative humidity

≥85%

Remote control distance

≤100M(in the open place)

Rated current

9.5A

Function setting parameter table:

Menu code Parameter Scale Parameter name Default Unit Remark
H00-00 25-95 Open speed adjustment 40   Corresponding PWM duty
cycle 25%-95%, step size is 1
H00-01 25-95 Close speed adjustment 40   Corresponding PWM duty cycle
25%-95%, step size is 1
H00-02 5-40 Open in place decelerate angle 35   The larger the angle value, the
less likely it is to shake the arm
when it is in place.
H00-03 5-40 Close in place decelerate angle 35   The larger the angle value, the
less likely it is to shake the arm
when it is in place.
H00-04 1-20 Open accelerate adjustment 1 ms The smaller the number, the
faster the speed
H00-05 1-20 Close accelerate adjustment 8 ms The smaller the number, the
faster the speed






Traffic Barrier Gate Features:



1 The running speed can be adjusted from 1.5s to 8s

2 Can be quickly interchanged

3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

4 Curved crank arm three- link movement structure, the operation is stable

5 Wireless remote control control open/close

6 Auto reverse function(force adjustable)

7 Infrared photocells connector is available

8 Loop detector connector is available.

9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

10 Connector for traffic light(AC220V,power less than 40W)

11 Offering dry contact signal for car parking system(COM,NC,NO)

12 Auto-delay when closing(adjustable)

13 RS485 or CAN network communication interface(no need to install module)

14 Counting interface

15 24V backup battery interface(Can be charged by using solar energy)( optional)

16 Arm open when power off ( add backup battery) (Optional)

17 Anti-collision alarm device





Intelligent Barrier arm balance adjustment



1,Please check and confirm arm status in horizon and vertical position,then tighten 2pcs M12 screw.

2,According to arm balance status, repeat adjusting the spring level of tightness of M8*140MM, make sure

the arm open and close in stable.

3,For the barrier gate with double springs,please adjust the two springs simultaneously.

4,If arm open and close shake too much, Please check below picture. Open arm shaking a lot means spring

is too tight, loose a little. Close arm shaking too much means spring too lose, repeat tighten a little spring.



Electrical installation, wiring diagram

1. The internal wiring of this machine has been completed when it leaves the factory, please do not change it,

just connect the 220V power supply and the protective ground wire to work.

2. Traffic light interface: 2A 24V voltage traffic light use.

3. Infrared anti-smashing interface: external infrared anti-radiation device, and the switch signal of the anti-radiation

output can be connected.

4. Ground sense interface: support external ground sense. When using an external ground sensor, you only need to

connect the switch signal output by the ground sensor.

5. Parking system interface wire control interface: connect the switch signal from the system to this interface to control the barrier.

6. Starting limit and landing limit signal output: output COM/NO/NC switch signal to the system to inform the current state of the barrier.

7. RS485 or CAN communication interface: PC software can be used to manage more than 15 barriers.

Service Items

1 One year’s free servicing is supplied(not including arm and remote);

2 Lifetime charged servicing is offered;

3 Technology servicing is supplied.



The following situations are charged for servicing(or changing):

1 Broken by the wrong installation.

2 Broken by improper voltage.

3 The surfaces of the system destroyed by wrong installation or use.

4 Broken by natural disaster.

5 Overdue.

6 Servicing items out of our promises.
