|Product Name:||Single Fence Parking Boom Barriers Intelligent Barrier Car Parking System||Arm Type:||Straight Articulated, Fence|
|Working Temperature::||-40°to 75°||Model Number::||WSTP-124|
parking lot gate arms,
traffic barrier gate

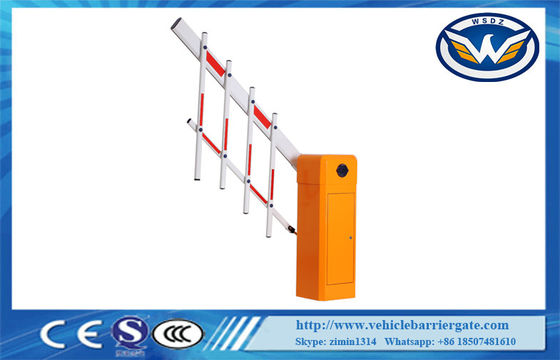

Single Fence Parking Boom Barriers Intelligent Barrier Car Parking System
Why WONSUN Intelligent Barrier?
1. Lifetime warranty motor, other parts are one year warranty.
2. Lifetime charged service.
3. OEM/ODM: Customized service accroding to your requirements.
4. Technical support and nice after-sales service.
5. Provide one-stop solution.
6. provides timely email, phone and onsite support.
|Drive||Block continues torque motor|
|Version||Left handed or Right Handed|
|Intelligence||The use of block able torque motor drive with continue torque output and the microprocessor based controller eliminates the need of friction clutches to continue maintenance free operation.|
|Power Supply||2 2 0/1 1 0 + /- 1 0 % V A C , 5 0 /60 H z|
|Colour||Different & Distinct colour pattern as decided by owner.|
|Boom Specification||Length (3, 4, 5, 6 Mtrs) straight or articulated extruded aluminum alloy.|
|Housing Dimension||W330mm, D300mm, H950mm|
|Protection||All housing and internal parts will be rust & corrosion free metals or alloys of high strength.|
|Opening & closing time||0.6s sec ,0.8 sec , 1 sec , 1.8 sec , 3 sec, 6 sec.|
|Power off||Manual opening possible|
|Safety||Loop detectors /infrared sensors to be used to prevent barriers from closing on the vehicle.|
|Integration||Capable of integration with all the surveillance and access control systems.|
|MTBF||5 million cycle|
|Material of construction||Carbon Steel with power coated finish and the housing top cover is made out of high impact engg. Plastic with customizable SS Sheet.|
|Operating temperature||- 25 ºC to + 7 5|
AC MOTOR-The Drive Unit
1 For alternating current, does not require limit switches nor a friction clutch, and maintenance-free
Compressed Balance Spring
Barrier gate arm weight is counter-balanced via a adjusted compression spring, avoid accidents caused by tension spring
Absorb vibration during the beam rises and falls, which keeps barrier run smoothly and reduce the impact on mechanism core
Photoelectronic Limit Switch
Multiple protection mechanism: photoelectric limit, motor sensor memory limit, loop detector, air pressure wave switch, infrared photocell ensure the barrier gate operate accurately and safely
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. Contact information:
If any question, please contact Keira freely!
Whatsapp: +86 18507481610
Contact Person: Keira
Tel: +86 185 0748 1610
