Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: P-613
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
LPR Parking Management System With Traffice Barrier Gate License Plate Recognition Security System |
Rating Voltage: |
220V±10%, 50HZ |
Housing Dimension: |
340mm(L)*170mm(W)*1550mm(H) |
Relative Humidity: |
≤90% (at Room Temperature, No Condensation) |
Communication Method: |
TCP/IP |
Working Temperature: |
-30℃～+50℃ |
Name: |
LPR Parking Management System With Traffice Barrier Gate License Plate Recognition Security System |
Rating Voltage: |
220V±10%, 50HZ |
Housing Dimension: |
340mm(L)*170mm(W)*1550mm(H) |
Relative Humidity: |
≤90% (at Room Temperature, No Condensation) |
Communication Method: |
TCP/IP |
Working Temperature: |
-30℃～+50℃ |

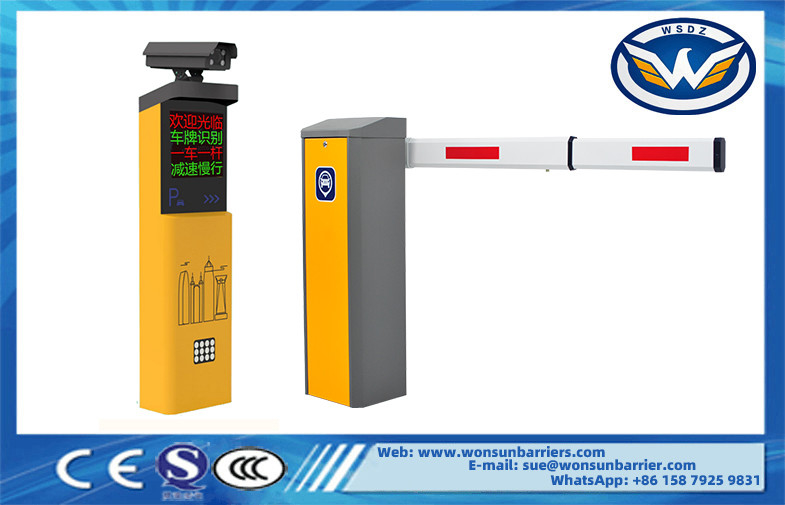

LPR Parking Management System With Traffice Barrier Gate License Plate Recognition Security System
Barrier Gate Model Selection and Differences
Why choose us?
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
Specifications
|
Model |
P-613 |
|
Working Temperature |
-30℃～+50℃ |
|
Voltage |
220V±10%, 50HZ |
|
Rated power |
65W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
48kgs |
|
License plate recognition rate |
99.8% (all-weather, typical license plate) |
|
Adaptation speed |
0-40KM/hour |
|
Effective Pixels |
Starlight 300W 2304(H)x 1296(v) |
|
Image resolution |
3 million pixels (1920*1080) |
Communication with customers
1) Q: Connected power and press open/close button but traffic barrier gate no action?
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check fuse and power in controller |
|
2 |
Battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
|
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?
|
A. |
Reason |
Solution |
|
1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
|
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal
|
Advantages
1. Patented product, the chassis body is molded in one piece, with an external camera and a multi-angle universal joint to adapt to complex environments with large angles.
2. Outdoor high-brightness dual-color LED industrial-grade display module, with a four-line four-character dual-color display.
3. Can set permissions for login accounts; can set the passing time period for vehicles; supports various types of license plate recognition.
4. Supports WeChat, Alipay, non-contact payment, central charging, electronic coupons.
5. Flexible charging rules can be set to easily cope with various charging scenarios.
6. Supports Internet cloud platform access, unmanned operation, and supports multiple payment methods such as WeChat, Alipay, UnionPay, ETC, etc. The four-row dual-color display screen supports free setting of display information and TTS universal voice custom broadcast
