Durable High Speed Toll Barrier Gate Auto Reverse Car Park Boom Gates

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: WSTP-122

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: USD200~250 per unit

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

traffic barrier gate

,

auto barrier gate system

Name:
Durable Toll Station High Speed Toll Barrier Gate Auto Reverse
Color:
Black,red,blue,white
Voltage:
220V±10%, 110V±10%, 50/60HZ
Rated Power:
80W
Capacitor:
9+9uF/450W
Telescopic Arm:
Optional
Name:
Durable Toll Station High Speed Toll Barrier Gate Auto Reverse
Color:
Black,red,blue,white
Voltage:
220V±10%, 110V±10%, 50/60HZ
Rated Power:
80W
Capacitor:
9+9uF/450W
Telescopic Arm:
Optional
Description
Durable High Speed Toll Barrier Gate Auto Reverse Car Park Boom Gates

Durable Toll Station High-Speed Toll Barrier Gate Auto Reverse




Toll Barrier Gate Applications



Fast Toll Barrier Gate adopts a special machine core, swing-away boom holder, and boom. This Toll Barrier Gate runs at high

speed but stably. The running time is 1 second. It can be used for highway tolls, parking systems, factory gates, etc.





Toll Barrier Gate Specifications:



Toll Barrier Gate Model WSTP-115
Toll Barrier Gate Working Temperature -40℃~+75℃
Toll Barrier Gate Voltage 220V±10%, 110V±10%, 50/60HZ
Toll Barrier Gate Rated power 80W
Toll Barrier Gate Relative humidity ≤90%
Toll Barrier Gate Remote control distance ≥30m
Toll Barrier Gate Net weight 60kgs
Toll Barrier Gate Speed 1S
Toll Barrier Gate Max boom length 3 meters





Toll Barrier Gate Functions & Features



1. Manual release device to operate the barrier when power failure

2. Toll Barrier Gate motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Toll Barrier Gate Motor cooling fan to avoid the over-heating possibility

4. Automatic reversing when the barrier boom meets the obstruction

5. Auto closing realization through menu setting on the control panel

6. The Toll Barrier Gate works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch

(wire control), and traffic light

7. RS485 Communication Module is compatible




Toll Barrier Gate Motor Speed and Boom Type:



Boom type Boom Length(M) Opening time(S) Height between boom and ground(M)
Straight boom 6M≥L>4.5M 6S H=0.8M
4.5m≥L>3M 3S
3m≥L 1.5S

Folding boom

90 degree

5m≥L>3M 6S
3m≥L 3S

Folding boom

180 degree



5m≥L>3M 6S
3m≥L 3S

Fence Boom

Two-level

5m≥L 6S H=0.9M

Fence boom

Three-Level

m≥L 3S H=1.5M



Warranty:


1. The Toll Barrier Gate Drive Motor is warranted against the manufacturer’s defect for the lifetime
2. Standard warranty for all components is valid for12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)





Toll Barrier Gate Arm position adjustment.



1)First please set the arm horizontally and vertically through the regulating nut to lengthen or shorten the connecting rod, and then tighten the M12 safety nuts.

2)To make the arm well-balanced, please adjust the M8*140MM spring regulating screw accordingly.

3)For the barrier gate with double springs, please adjust the springs simultaneously.




Why choose the WONSUN High-Speed Toll Barrier Gate?



1. High-speed Toll Barrier Gate adopts a special machine core, swing-away boom holder, and boom. This barrier gate runs

at high speed but stably. The running time is 1 second. It can be used for highway tolls.



2. High-Speed Toll Barrier Gate uses a swing-away, boom holder. The boom is out of the holder when it is hit, which protects

the barrier core and prolong the lifetime of the barrier.

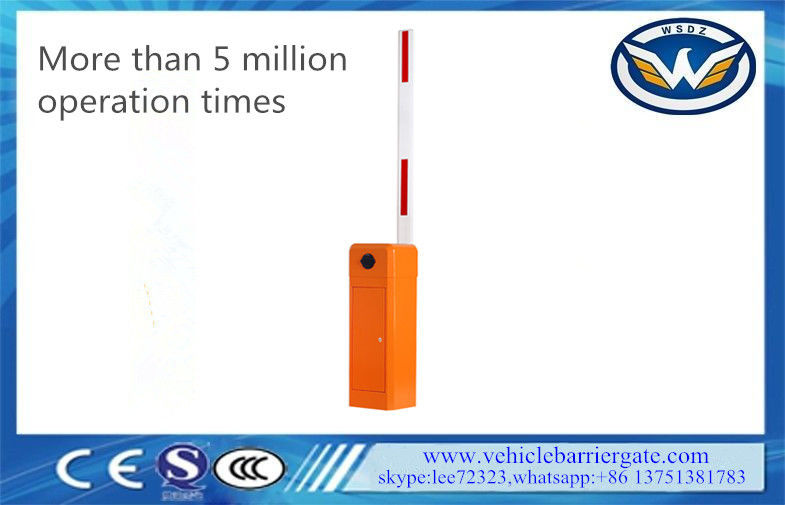

3. High-Speed Toll Barrier Gate uses the first-generation motor. It is stable and has a long service life performance, running

5 million times. Its housing is made of galvanized steel with 1.5mm thickness and painted so that the barrier can be used indoors and outdoors.



4. The Toll Barrier Gate core is special and the main parts are aluminum alloy casting. The barrier gate will automatically reverse when

the boom meets the obstruction. The barrier works well with infrared photocells, and loop detectors, the boom will automatically rise when it meets pedestrians and vehicles. A manual release device can operate the barrier when power fails.



5. WONSUN produces and processes almost all accessories. Besides standard producing, we offer OEM service in the meantime.
