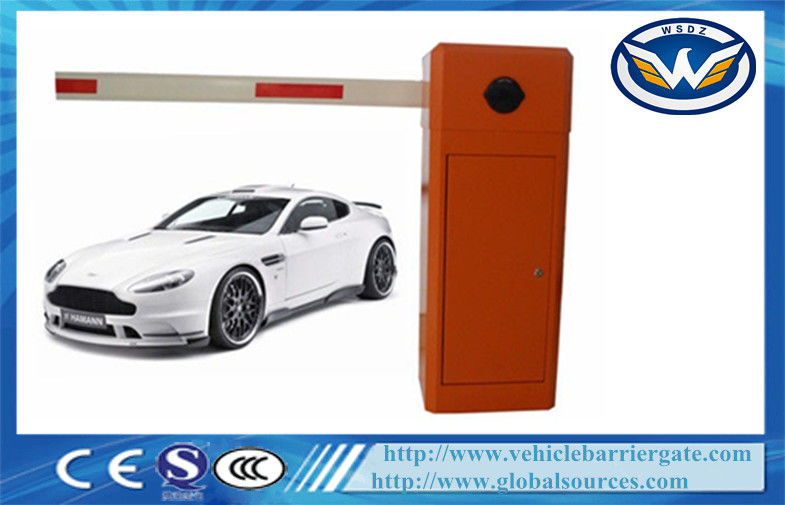

LED Boom Automatic Toll Barrier Gate , 0.6s High Speed Boom Barrier

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZTP-133-A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

auto barrier gate system

,

security barrier gate

Name:
LED Boom Automatic Toll Barrier Gate 0.6s High Speed Boom Barrier
Relative Humidity:
≤95% Coagulation Free
Voltage:
220V±10%, 110V±10%, 50/60HZ
Motor Rotational Speed:
1400rmp
Net Weight:
65KGS
Protection Degree:
IP44
Name:
LED Boom Automatic Toll Barrier Gate 0.6s High Speed Boom Barrier
Relative Humidity:
≤95% Coagulation Free
Voltage:
220V±10%, 110V±10%, 50/60HZ
Motor Rotational Speed:
1400rmp
Net Weight:
65KGS
Protection Degree:
IP44
Description
LED Boom Automatic Toll Barrier Gate , 0.6s High Speed Boom Barrier

LED Boom Automatic Toll Barrier Gate 0.6s High-Speed Boom Barrier





What are the advantages of Wonsun Toll Barrier Gate barriers?



1) The humanized clutch device: unlocking the clutch device and raising the boom manually in case of power off. When power is supplied, lick the clutch device to make it work normally again.

2) Special spring device: Both the compression spring and tension spring can be used in the machine, Using the compression spring can avoid accidents caused by the tension spring.

3) Three control buttons: for boom raising, falling, and pausing.

4) Boom backtrack function: the boom will rise if it hits something when falling.

5) Infrared photocell design: for avoiding the crash when the boom falls, to prevent the vehicles from being pressed.

6) Both external and internal loop detectors are supported.

7) "open", "close" and "stop" control interfaces

8) RS-485 communication serial interface(optional)





Toll Barrier Gate Technical Data
Toll Barrier Gate Working Temperature -35℃-75℃
Toll Barrier Gate Humidity ≤90%
Toll Barrier Gate Power Supply

220v±10%50/60Hz

110v±10%50/60Hz

Toll Barrier Gate Rated Power 120W/100W
Toll Barrier Gate Motor Rotational Speed 1400rpm
Toll Barrier Gate Protection Degree IP44
Toll Barrier Gate Remote Control Distance ≤50m
Toll Barrier Gate Max Boom Length 1-8M





LED Boom Automatic Toll Barrier Gate , 0.6s High Speed Boom Barrier 0



Toll Barrier Gate Optional Boom



A: Toll Barrier Gate Booms for avoiding striking(medium-sized octagonal boom, round foam boom, elliptic boom)

B: Toll Barrier Gate 180°articulated boom(Max 4M)

C: Toll Barrier Gate 90° articulated boom(Max 4M)

D: Toll Barrier Gate 2 fences boom(Max 5M)

E: Toll Barrier Gate 3 fences boom(Max 4M)



Toll Barrier Gate Boom with LED lights and light colors changeable.

Light flashing patterns, speed, and colors are controlled by a remote control.







Toll Barrier Gate Packing List



Toll Barrier Gate Paint-coated case       1pcs

Toll Barrier Gate Transmission               1 pcs

Toll Barrier Gate arm                   1 pcs

Toll Barrier Gate Spring                           1 pcs

Toll Barrier Gate Remote control device   2pcs

Installation kit                 1 pcs

Toll Barrier Gate Motor                             1 pcs

Limit switch                     1 pcs

Capacitor                        1 pcs

The circuit board             1 pcs

Console control device    1 pcs





Anti-collision protects boom arm (optional)

Once the anti-collision mechanism is installed, it will protect the Toll Barrier Gate boom arm not to being damaged once the boom

the Toll Barrier Gate arm collided with a vehicle.



Safety--- Anti-hit by pressure resistance bounce

While moving down, the arm will immediately go back to its vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to being hit by a Toll Barrier Gate boom arm. The sensitivity is adjustable.



Safety--- Anti-hit by Loop Detector (Optional)

The Toll Barrier Gate boom is moved down If a coming vehicle is detected to be existing on the ground

induction coil, the arm will go back to a vertical position immediately until the loop input is dismissed

and then the arm will go down immediately.



Safety--- Anti-hit by photocell (Optional)

While the arm moving down, If infrared transportation between the transmitter and receiver is blocked by

a human or vehicle, the arm will go back to a vertical position immediately. The arm will automatically

close once the infrared transportation recovers.



Safety--- Anti-hit by “Opening Priority”

If a vehicle is coming while the arm moving down, the arm will immediately go back to a vertical position

once an open command is given, which protects the vehicle not to being hit by an arm.



Automatically Close by loop detector (Optional)

If a loop detector is installed, after the vehicle passes the Toll Barrier Gate will automatically close once the loop

input was triggered



Automatically open by loop detector (Optional)

If a loop detector is installed, when the barrier boom is in a horizontal position, the Toll Barrier Gate boom will go up immediately once the loop input is triggered.



Manually control in case of no power.

Once the power is off, just open the cabinet and manually control the barrier by a gear mechanism.

Also, barrier boom can be manually locked in any position between horizontal and vertical, the

lock status will remain until unlocked manually.



Boom to open up fully or close down in case of power failure

If power is suddenly off while the Toll Barrier Gate boom is closing, the boom will automatically close down fully if the angle

between boom and vertical plane beyond 45 degrees. If a power failure occurs during boom opening,

boom will automatically continue to open up fully if the angle between the boom and the level surface

beyond 45 degrees.



Anti-condensation in cold climate

The Toll Barrier Gate maintains low power consumption even without closing and opening input, which will

keep the motor at normal temperature. The lubricant will not be frozen so the Toll Barrier Gate will keep

working in a frozen environment.



Transparent plastic covers on the Control Board.

A transparent plastic covers the Control Board to make Control Board waterproof and dust

proof also protects the operator.



Toll Barrier Gate Toll Barrier Gate Toll Barrier Gate Toll Barrier Gate Toll Barrier Gate Toll Barrier Gate Toll Barrier Gate

Toll Barrier Gate Toll Barrier Gate Toll Barrier Gate Toll Barrier Gate Toll Barrier Gate Toll Barrier Gate Toll Barrier Gate Toll Barrier Gate Toll Barrier Gate



For the things that most customers want to know:



1. MOQ: for our usual order, there is no MOQ; But for customized orders, like customized color, printing LOGO, and corrosion protection base, the MOQ is 30 sets.

2. Delivery Time: as for usual orders, 3-7 days when we receive your advance deposit or full payment(including Saturday), For customized orders, it is 10-15 days after receiving your payment(including Saturday)

3. Production Potential: 80 sets of barrier gates finished in one day for the usual order, for customized order, according to your detailed requirements

4. Toll Barrier Gate Quality Control: 3 control lines and 6 QC for Checking, first is a motor testing line which can promise you a good and durable motor; second is the machine core testing line which can promise you stable function; and final is the barrier gate testing line which can promise you perfect working with its required boom with our experienced technicist's debugging

5. Service and Support: as for presales service, we will provide all the information you need and the questions you asked; for aftersales, we will offer long-term technical support, and we're sure that any of your feedback will receive our careful attention and prompt reply.

6. Toll Barrier Gate Warranty: 12 months Since the barrier gate you receive

7. Delivery Way: we can send the goods to you by Sea, Airplane, and Express, but you need to tell us which kind of way you prefer and relative information. For example, if you want to deliver by sea, please kindly send us the shipping requirements, like FOB or CIF, and your nearby port.

8. Payment: for sample order: full payment; for usual order, 30-40% advance deposit, balance before shipment for large quantity.

As for here, if you have any pending orders or inquiries, please kindly feel free to contact us, we're sure that any of your feedback will receive our careful attention and prompt reply.





Service for free: Charging service:
1. One-year free service is supplied(not including the arm) 1. Broken by wrong installation
2. Lifetime charged service is supplied 2. Broken by improper voltage
3. Technical service is supplied 3. The surfaces of the barrier were destroyed by the wrong installation and usage
4. OEM: we can customize the machine case, color, and logo for you, according to your detailed requirements. 4. Overdue service items are out of our promise.
5. Technical support and aftersales service, is a long-term relationship between us.
6. Price can be negotiable when you have a big order quantity.
