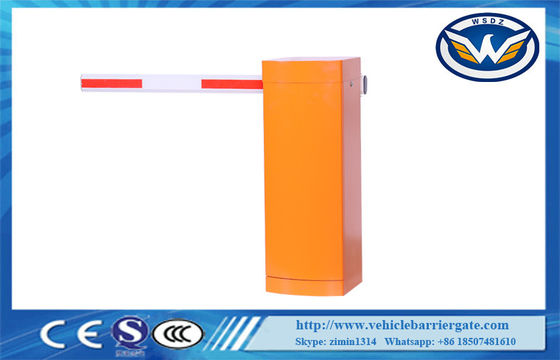

0.6S Fast Speed Servo Motor 24V Solar Toll Barrier Gate with LED Arm

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-138

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

0.6S Fast Speed Toll Barrier Gate

,

Servo Motor Toll Barrier Gate

,

24V LED Arm Toll Barrier Gate

Features:
Run Speed Adjustable, Battery Supported
Operation Time:
0.6,0.9,3,6sec
Protection System(IP):
IP55
Certificate:
Yes
Working Environment Temperature:
-40 ℃ ~ +85 ℃
Product Name:
0.6S Fast Speed Servo Motor 24V Solar Barrier Gate Toll Barrier Gate With LED Arm
Features:
Run Speed Adjustable, Battery Supported
Operation Time:
0.6,0.9,3,6sec
Protection System(IP):
IP55
Certificate:
Yes
Working Environment Temperature:
-40 ℃ ~ +85 ℃
Product Name:
0.6S Fast Speed Servo Motor 24V Solar Barrier Gate Toll Barrier Gate With LED Arm
Description
0.6S Fast Speed Servo Motor 24V Solar Toll Barrier Gate with LED Arm

0.6S Fast Speed Servo Motor 24V Solar Barrier Gate Toll Barrier Gate with LED Arm

1. Product Outline

WONSUN 2nd generation servo motor gate adopts integrated design and mold manufacturing with international leading technology, compact structure, high precision, high consistency and standardization, and use planetary reducer transmission, high efficiency, long life, no oil leakage, no blocking, low noise, the motor adopts 24V permanent magnet rare earth synchronous servo motor, small size, low power consumption, large torque, wide speed regulation, no heat, small penetration, precise limit, etc., using digital signal processor (DSP) As the control core, it can realize more complex algorithms, realize network and intelligence, (IPM) internal integrated drive circuit can detect faults and display fault codes to quickly solve fault problems. The three-bar linkage design of the machine core makes rapid rise and fall operation more stable Using solar charging applications, it is suitable for unmanned occasions such as railway crossings, fire passages, oil stations, mine tunnels, etc., without electricity, and fully realizes automatic operation control.



2. Operation Time and Boom Length Configuration Parameter

Boom Type(meter) Operation Time(seconds) Boom Height(meter)
80*45mm≥2.5m 0.6S 0.83m
80*45mm≥3m 0.9S 0.83m
100*45mm≥4.5m 3S 0.83m
100*45mm≥6m 6S 0.83m
80*45mm 90°boom≥3m 1.8S 0.83m
80*45mm 90°boom≥3.5m 3S 0.83m
80*45mm 90°boom≥5m 6S 0.83m
80*45mm 180°boom≥3m 1.8S 0.83m
80*45mm 180°boom≥4m 6S 0.83m
80*45mm 180°boom≥5m 6S 0.83m
100*45mm 2 fence boom≥3.5m 3S 0.83m, small vertical boom length is 0.8m, landing boom length 0.9m




Toll Barrier Gate Functions and Features



1. Open and close speed adjustable

2. Arm direction Left and Right can change easily

3. When power off, manual open and close arm, and lock itself.

4. Wireless remote

5. Photocell I0 port output

6. Loop detector anti-collision I0 output

7. Open and close control input

8. 12V traffic light output

9. Traffic light signal output

10. Open and close limit signal output

11.Counting (fleet) input RS485 communication input

12. 24V battery input port

13. Delay close arm function(1-300 sec. Adjustable)

14. Open and close arm speed deceleration function

15. One-key setting arm type with corresponding speed

16. Arm auto reverse function ( Force adjustable)

17. Anti-collision alarm function (additional sensors and alarms are required)



Installation,dismantlement and adjustment of spring

The steps as follows:

1. please keep the boom in the vertical(boom open)position, then tighten 2pcs M12 lock-nut

2. According to the balance state of the brake lever, repeatedly adjust the balance spring to adjust the tightness of M8*140mm, and then manually put the brake lever to a 45 degree angle to stop it.

3. For the three springs, three springs are required to coordinate adjustments to make the brake lever rise/drop smoothly.

4. The swing of the brake lever during lifting and lowering is shown in the figure above. When lifting the lever, the swing of the brake lever is caused by the spring is too tight, and it can be adjusted repeatedly. , Tighten the spring repeatedly.





Toll Barrier Gate Tension spring select table



Boom type Boom length Selection spring
Type Spec.(diameter x length)
100*45straight, folding 6m≦L<5m Tension spring 4.5+4.5+4.5
5m≤L≤4.5m 4.5+4.5+4.5
4.5m<L≤3m 4.5+4.5
80*45straight, folding 6m≦L<5m 4.0+4.0+4.0
5m≤L≤4.5m 4.0+4.0+4.0
4.5m<L≤3m 4.0+4.0
2 fence boom 5m≤L≥4m 4.5+5.5+4.5
4m<L≥3m 4.5+4.5+4.5
3 fence boom 4.5m≤L≥4m   4.5+5.5+4.5
4m<L≥3m   4.5+4.5+4.5


(the parameter is based on the company’s arm)
