Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Operation Time: |
0.6s/2.5m,0.9s/3m,2s/4m,5s/6m |
Power Consumption: |
Max.150W |
Operating Temperature Range℃: |
-45℃~+85℃ |
Power Supply: |
24/100/240VAC,50/60Hz |
Machine Case Size(W*D*H): |
342*312*959mm |
Item Name: |
Traffic Access Control Barriers And Gates Solar Power Arm Barriers Arm LED |
Operation Time: |
0.6s/2.5m,0.9s/3m,2s/4m,5s/6m |
Power Consumption: |
Max.150W |
Operating Temperature Range℃: |
-45℃~+85℃ |
Power Supply: |
24/100/240VAC,50/60Hz |
Machine Case Size(W*D*H): |
342*312*959mm |
Item Name: |
Traffic Access Control Barriers And Gates Solar Power Arm Barriers Arm LED |

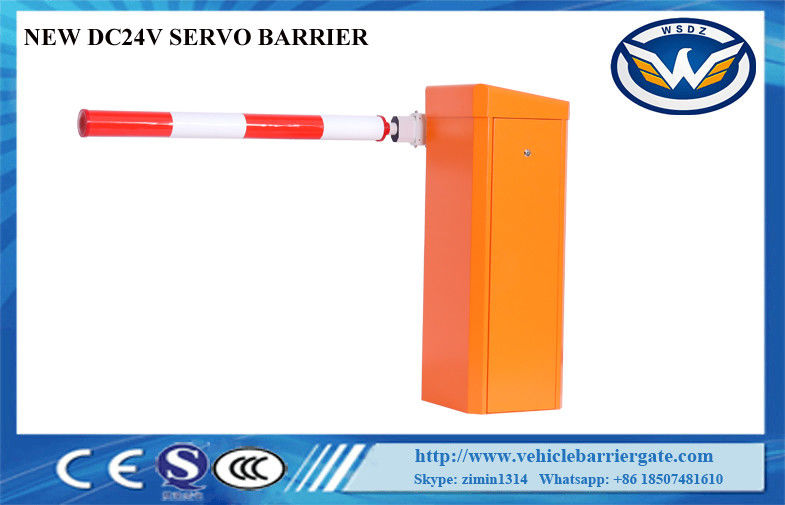

Traffic Access Control Barriers and Gates Solar Power Arm Barriers Arm LED
If you have any question, please contact us freely!
Sales representatives: Keira
Whatsapp: +86 18507481610
Skype: zimin1314
Email: keira@wonsunbarrier.com
Wechat: Keira_Xia
The parameter for selecting the balance compressed spring
| Number | The length of boom (L=meter) | Diameter of the spring (D=mm) | Link hole selection |
| 1 | 2.5＜L＜3.5 | D=4.5 | Link hole 2 |
| 2 | 3.5≤L≤4.0 | D=5.5 | Link hole 1 |
| 3 | 4.0＜L＜5.5 | D=6.5 | Link hole 2 |
| 4 | 5.5≤L≤6.0 | D=6.5 | Link hole 1 |
The parameter for selecting the balance tension spring
| Boom Type | The Length of Boom | Selection Spring | |
Boom | Spec.(diameter*Length) | ||
| 6M≥L＞5M | Extension Spring | (ø5.5MM*280)+(ø4.5MM*280) |
| 5M≥L≥4.5M | (ø5.5MM*280) | ||
| 4.5M＞L≥3M | (ø4.5MM*280) | ||
| Fence Boom | 5M≥L≥4M | (ø6.5MM*280)+(ø6.5mm*x280) | |
| 4M＞L≥3M | (ø5.5MM*280)+(ø4.5mm*280) | ||
(the parameter is based on the company’s boom)
DZ-138 barrier gate specifications:
| DZ-138 barrier gate | V06T | V09T |
| Max Boom Length and Diameter | 2500mm, Ф75mm | 3000mm, Ф75mm |
| Open/Close Time | 0.6sec | 0.9sec,2.5sec,4.5sec |
| Power Supply | 24/100/240VAC,50/60Hz | 24/100/240VAC,50/60Hz |
| Power Consumption | max.150W | 100w |
| Machine Case | Varnished 2.0mm steel plate | Varnished 2.0mm steel plate |
| Machine Case Size(W*D*H) | 342*312*959mm | 342*312*959mm |
| Net Weight | 43kg | 42.6kg |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Driving Method | Servo motor | Servo motor |
| Protection System(IP) | 54 | 54 |
| Insulation Class | F | F |
| Relative Humidity | ≤90% | ≤90% |
| Motor No-load Speed | 3000r/min | 3000r/min |
| Remote Control Distance | ≤100m (open, sunny weather) | ≤100m (open, sunny weather) |
| Output Torque | 1.2N.M*140=160N.M | 0.86N.M*140=120N.M |
| Running Noise＜ | 45dB | 45dB |
| Surface Treatment | Outdoor metal powder electrostatic spraying | Outdoor metal powder electrostatic spraying |
| DZ Controller | ||
| Voltage(±10%) | 100-240 volt | 100-240 volt |
| Frequency(Hz) | 50-60 | 50-60 |
| Max Power Consumption(watt) | 8 | 8 |
| Fuse | F5AH | F5AH |
| Control Voltage | 24V DC/max.3000mA | 24V DC/max.3000mA |
| Input-end Number | 8 | 8 |
| Open Collector Output Number | 2 | 2 |
| Zero Level Reversal Relay Number | 3 | 3 |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Protection System(IP) | 20 | 20 |
| Weight(gram) | 450gram | 450gram |
| Dimension | mm(L-W-H) | 158*126*55 |
Functions and Features:
1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple
push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid
damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality
FAQ:
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according
to quantity.We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union.
Q: Do you provide free samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pcs.
Operating Safety:
A safety distance of at least 500 mm must be provided between the end of barrier gates and the closest
physical obstructions (such as buildings, walls and fences, etc.). The activities components of barrier gates
must be able to be seen directly by operators. When the boom is moving, the personnel and other objects
are forbidden to stay near the barrier gate. If you have installed the barrier and operating elements and are
connected to a fixed main power supply, you must use a main circuit switch with full polarity insurance device.
It must be operated in accordance with this installation manual, and must be approved by the company before
making any changes. The fixing device of the boom is designed to bear winds of magnitude 10 (= 500N / ㎡.).
If it’s expected that there will be a higher speed wind, must be approved by the company before change the
fixing device of boom. A boom length more than 3.5meter will be required to install a swing support or a
support column. All of the circuit connections, wiring work and replacement of any circuit components must
be carried out by professionally trained electricians. Please firstly cutting off the connections with main power
supply before opening barrier gates. It is forbidden to make technical modification or changes to the barrier system.
After cutting off the power, please starting after at least 10 seconds.
