|Product Name:||Remoted Controlled Wonsun Barrier Gate Toll Gate Barrer For Parking Lot And Toll System||Motor Rated Power:||50W,max 100W|
|Running Speed:||0.3s/0.6s/0.9s/2s/4s||Rating Voltage:||AC90~264V,DC12V|
|Meterial:||2mm Cold-roll Steel Sheet||Housing Size:||342*312*959mm|
|Remote Control Distance:||≤100m||Keyword:||Toll Barrier Gate|
auto barrier gate system,
security barrier gate
Remoted Controlled Wonsun Barrier Gate Toll Gate Barrer For Parking Lot And Toll System

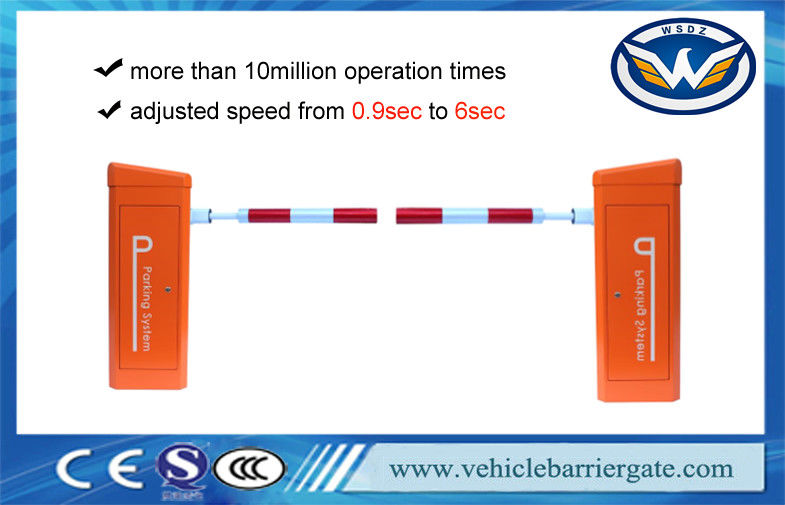

Product Pictures For Ref:
|1||Product Name||Remoted Controlled Wonsun Barrier Gate Toll Gate Barrer For Parking Lot And Toll System|
|4||Motor Power||50W,max 100W|
|5||Boom Length||2meter to 6meter(max)|
|8||Lifetime||>10 million times or 10 years|
|10||MTBF||>5 million times|
|12||Remote Controll Distance||≤100 meter|
|13||Motor Speed||3000 r/min|
|17||Application||Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Commercial Premises, Apartment Block Access
1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy
to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent
place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the
triple push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to
avoid damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
|Barrier gate boom||1||Piece|
|Machine case press board||2||piece||For fixing case|
|Expansion bolt||M16X150||4||set||For fixing case|
|Supporting pole||1||piece||Optional part|
|Expansion bolt||M8||4||unit||For fixing boom|
|Boom fixed screws||M12*70||2||unit|
|Balance spring||1||unit||For spare usage|
