Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-1191
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Housing Dimension: |
325 * 280 * 936 Mm |
Housing Material: |
2mm Cold Roller Steel Plate |
Housing Color: |
Bule, Orange, White, Yellow |
Power Supply: |
AC 220V / 110V |
Arm Material: |
Aluminum Alloy |
Arm Length: |
Max. 6mtrs |
Housing Dimension: |
325 * 280 * 936 Mm |
Housing Material: |
2mm Cold Roller Steel Plate |
Housing Color: |
Bule, Orange, White, Yellow |
Power Supply: |
AC 220V / 110V |
Arm Material: |
Aluminum Alloy |
Arm Length: |
Max. 6mtrs |

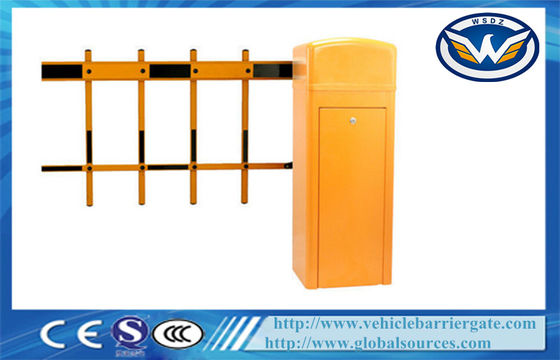

Manual release Parking Barrier Gate with Fan Colling Machine Used For Toll Gate
Quick Detail:
Name: Parking barrier gate
Speed:6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V
Model Selection and Differences
|
Model |
Boom Shape |
Max Boom Length |
Speed |
|
WST1191 |
Straight boom |
6m |
6 seconds |
|
WST1192 |
Straight boom |
4.5m |
3 seconds |
|
WST11921 |
90 degree, Articulated boom |
5m |
6 seconds |
|
WST11922 |
90 degree, Articulated boom |
3m |
3 seconds |
|
WST11961 |
180 degree, Articulated boom |
5m |
6 seconds |
|
WST11962 |
180 degree, Articulated boom |
3m |
3 seconds |
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)
Specifications
|
Model |
WST1191 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
48kgs |
|
Speed |
1S,1.8S,3S, 6S |
|
Max boom length |
6 meters |
|
Motor Rotational speed |
1400rmp |
|
Protection Degree |
IP44 |
Parking Barrier Gate Packing List
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
