Parking Lot Traffic Barrier Gate

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WST-1211

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

access control barriers and gates

,

road barrier gate

Housing Material:
2mm Cold Roller Steel Plate
Open / Closing Time:
3s, 6s
Housing Dimension:
280 * 240 * 996 Mm
Power Supply:
AC 220V / 110V
Arm Material:
Aluminum Alloy
Arm Width & Height:
100 * 45 Mm
Housing Material:
2mm Cold Roller Steel Plate
Open / Closing Time:
3s, 6s
Housing Dimension:
280 * 240 * 996 Mm
Power Supply:
AC 220V / 110V
Arm Material:
Aluminum Alloy
Arm Width & Height:
100 * 45 Mm
Description

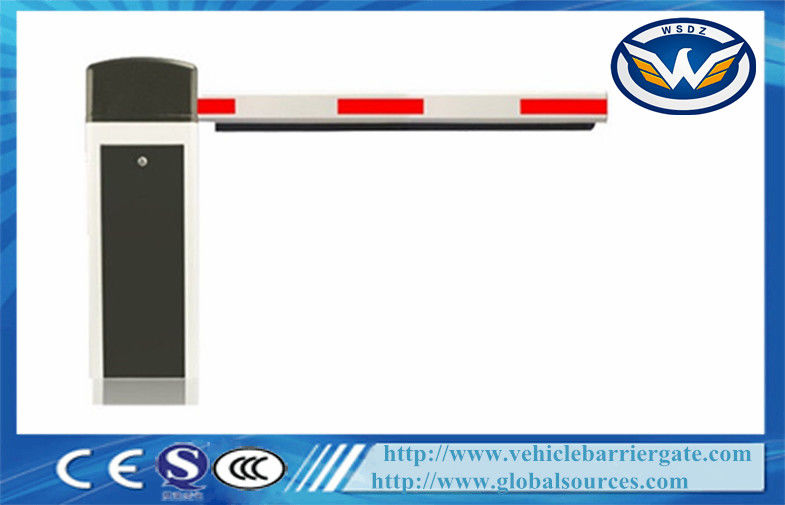

Parking Lot Traffic Barrier Gate

 AC 220V / 110V Traffic Barrier Gate with Rubber Strip 5 Million Operation Times


Traffic Barrier Gate Quick Detail:


Name: Traffic Barrier Gate

Traffic Barrier Gate Open/close time: 0.9 / 1 /1.8 / 3 /6sec. optional

Traffic Barrier Gate Max. 6m straight arm with rubber bar

Traffic Barrier Gate Max. 4.5 m folding arm with rubber bar

Traffic Barrier Gate Max. 4m fence arm with rubber bar

Traffic Barrier Gate Optional housing color: yellow (default), orange, white, red, and blue

Traffic Barrier Gate Optional boom arm direction: leftward or rightward



Traffic Barrier Gate Model Selection and Differences



Traffic Barrier Gate Model

Traffic Barrier Gate Boom Shape

Traffic Barrier Gate Max Boom Length

Traffic Barrier Gate Speed

WST1211

Straight boom

6m

6 seconds

WST1212

Straight boom

4.5m

3 seconds

WST12121

90-degree, Articulated boom

5m

6 seconds

WST12122

90-degree, Articulated boom

3m

3 seconds

WST12161

180-degree, Articulated boom

5m

6 seconds

WST12162

180-degree, Articulated boom

3m

3 seconds















Traffic Barrier Gate Functions & Features

1) Traffic Barrier Gate Manual release
2) Traffic Barrier Gate Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Inclusive of arm and "push button" which opens/closes the barrier

6) Exclusive of the LED light bar, remoter, boom bracket, and anti-collision mechanism: need to buy extra


Traffic Barrier Gate Specifications



Traffic Barrier Gate Model

WST1211

Traffic Barrier Gate Working Temperature

-40℃~+75℃

Traffic Barrier Gate Voltage

220V±10%, 110V±10%, 50/60HZ

Traffic Barrier Gate Rated power

80W

Traffic Barrier Gate Relative humidity

≤90%

Traffic Barrier Gate Remote control distance

≥30m

Traffic Barrier Gate Net weight

48kgs

Traffic Barrier Gate Speed

1S,1.8S,3S, 6S

Traffic Barrier Gate Max boom length

6 meters

Traffic Barrier Gate Motor Rotational speed

1400rmp

Traffic Barrier Gate Protection Degree

IP44
