Steel Housing Unique Design 6s Electric Barrier Gate Folding Fence Arm

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: WSTP-122

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: USD200~250 per unit

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

car park barrier gate

,

auto barrier gate

Name:
Steel Housing Unique Design 6s Automatic Barrier Gate Folding Fence Arm
Color:
Black,red,blue,white
Voltage:
220V±10%, 110V±10%, 50/60HZ
Rated Power:
80W
Capacitor:
9+9uF/450W
Telescopic Arm:
Optional
Name:
Steel Housing Unique Design 6s Automatic Barrier Gate Folding Fence Arm
Color:
Black,red,blue,white
Voltage:
220V±10%, 110V±10%, 50/60HZ
Rated Power:
80W
Capacitor:
9+9uF/450W
Telescopic Arm:
Optional
Description
Steel Housing Unique Design 6s Electric Barrier Gate Folding Fence Arm

Steel Housing Unique Design 6s Automatic Barrier Gate Folding Fence Arm



 Functions & Features:

1. Handwheel device to operate the barrier when power failure.
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking.
3. Motor cooling fan to avoid the over-heating possibility
4. Auto-reverse when the boom meets obstruction
5. Infrared photocells interface is available
6. Loop detector interface is available
7. Well-integrated with car parking system equipments, with wire control (push button)
8. Interface for traffic light
9. Offering dry contact signal for car parking system (COM, NC, NO)

10. Auto-delay when closing (adjustable)
11. Remote control frequency: 418MHz
12. Boom with protective rubber band





Parameters



Name Barrier Gate Application Parking System
Speed 1.5/3/6 second Max Boom Length 6m
Power Supply AC220V/AC110V Rated Power 80W
Motor Rotational Speed 1400rpm Protection Degree IP44
Working Temperature -35℃~60℃ Humidity ≤90%
Remote Control Distance ≥30m, ≤100m Feature Wheel Clutch
Net Weight 44kg Gross Weight 49kg
Certificate CE/ISO Boom Type Octagonal boom

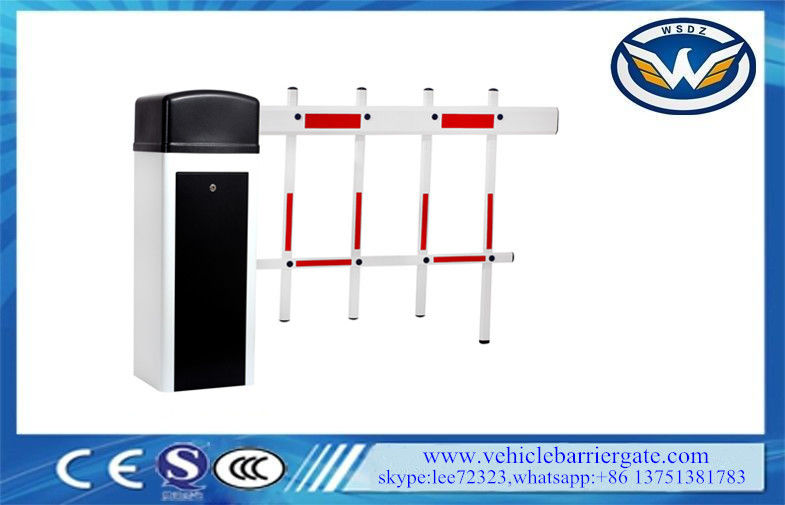

Steel Housing Unique Design 6s Electric Barrier Gate Folding Fence Arm 0







Motor Speed and Boom Type:


Boom type Boom Length(M) Opening time(S) Height between boom and ground(M)
Straight boom 6M≥L>4.5M 6S H=0.8M
4.5m≥L>3M 3S
3m≥L 1.5S

Folding boom

90 degree

5m≥L>3M 6S
3m≥L 3S

Folding boom

180 degree



5m≥L>3M 6S
3m≥L 3S

Fence Boom

Two-level

5m≥L 6S H=0.9M

Fence boom

Three-Level

m≥L 3S H=1.5M



Warranty:


1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)





Arm position adjustment.



2)First please set the arm horizontally and vertically through regulating nut to leangthen or shorten the connecting rod, and then tighten M12 safety nuts.

2)To make the arm well balanced, please adjust the M8*140MM spring regulating screw accordingly.

3)For barrier agte with double springs, please adjust the springs simultaneously.



FAQ:

1. When barrier finish closing, why does the arm open itself slowly?

the spring is too tight, you need release the spring a little, then test it again.
see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
reset the balance position and the electrical limit switch.

2. Why does the controller panel operate with "Di Di Di" abnormal noises?

As for this, it means the resistance on controller board is broken, if you have professional tools to check,
then replace that broken resistance, if not, replace that controller panel.

3. Why does the barrier finish half operation of opening and closing?

If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.

4. When barrier closed, why is there a 5 degree angle of inclination?

the model is not good, and the gear doesn't fit each other tightly.
the barrier didn't adjust well, need to reset.

5. When barrier finish open, but it closes itself without any order control, what's the problem?

To check the loop cable first, because the loop cable maybe brokem
To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.

6. Why does the arm wave a lot when opening and closing?

The spring is very tight
The Screw touches the rubber absorption tightly, need to reset again.

7. Rubber linning installation suggestion:

It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
The place with many vehicles come and go, like shopping center, carpark area.

8. Can you accept OEM/ODM order?

Absolutely, we are manufacturer of barrier gate, with 7 years researching and developing experience.
