Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE/SGS
Model Number: WSTP-115
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Product Name: |

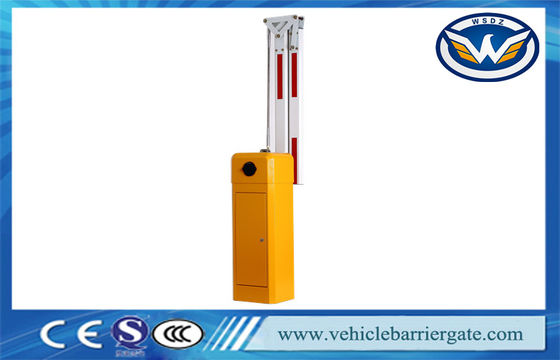

5 Million Operation Time Automatic Barrier Gate Car Gate With LED Arms |
Color: |
Yellow,orange,blue,red,black,customized |
Material: |
2.0mm Cold Roll Steel Sheet |
Opeartion Time: |
0.6s,1s,1.8s,3s,6s |
Arm Type: |
Stright Arm,fence Arm,folding Arm |
Rating Voltage: |
AC110V/220±10%，50/60HZ |
Gross Weight: |
55KGS |
Protection Grade: |
IP54 |
Size: |
320*280*920mm |
Keywords: |
Vehicle Barrier Gate System |
Product Name: |
5 Million Operation Time Automatic Barrier Gate Car Gate With LED Arms |
Color: |
Yellow,orange,blue,red,black,customized |
Material: |
2.0mm Cold Roll Steel Sheet |
Opeartion Time: |
0.6s,1s,1.8s,3s,6s |
Arm Type: |
Stright Arm,fence Arm,folding Arm |
Rating Voltage: |
AC110V/220±10%，50/60HZ |
Gross Weight: |
55KGS |
Protection Grade: |
IP54 |
Size: |
320*280*920mm |
Keywords: |
Vehicle Barrier Gate System |
Keywords: Barrier Gate, Intelligent Barrier Gate, Automatic Barrier Gate, Traffic Barrier Gate, Boom Barrier Gate, Road Barrier Gate, Parking Barrier Gate, Car Barrier Gate, Boom Gate, Boom Barrier Gate, Security Barrier Gate, Safty Barrier Gate, Gate Bridge Barrier, Barrier Arm, Boom Arm, Vehicle Barrier Gate, Vehicle Parking Barrier gate, Vehiclie Boom Gate, Industrial Barrier Gate, Remote Control Barrier Gate, Electric Barrier Gate, Folding Barrier Gate, 90 Degree Folding Barrier Gate, 180 Dgree Folding Barrier Gate, Fence Barrier Gate, 2 Fence Barrier Gate, 3 Fence Barrier Gate, Gate Barrier, Arm Gate, Arm Barrier
| Name | 5 Million Operation Time Automatic Barrier Gate Car Gate With LED Arms |
| Model | WSTP-115 |
| Size | 350*280*920mm |
| Rating Voltage | AC 220/110V ±10%, 50/60Hz |
| Color | yellow,orange,blue,red,black,customized |
| Motor Power | 80w |
| Speed Option | 0.6s,1s1.8s; 3s; 6s |
| Material | 2.0mm galvanized plate or cold roll plate with epoxy paint |
| Weight | 55 KG |
| Operation Testing | More than 5 million times |
| Arm Option |
Straight arm, 1-6 m for option, 45*80mm or 45*100mm Folding arm, 1-4.5 m for option, 90 degree or 180 degree Fence arm, 1-5m for option, two fence or three fence |
| Working Temperature | -45°C — +75°C |
| Remote Control Distance | Less than 30m |
| Application | Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center |
Functions&Features
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
8. Traffic light interface
9. Infrared Photocells (optional)
10. Support the external and internal Vehicle Loop Detector (optional)
Product Pictures
Packing&Shiping
use strong carton case with air bubble filled inside to protect products and save your cost.
shipped in 3-7days after payment
FAQ
1. Motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or not, if yes, change a new one.
b. Please check whether the balance spring is overused and distorted. If yes, change a new one.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please chek it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is enough or not.
5. There is no reaction when pressing the remote controller buttons.
a, Please check whether the power is supplied to the barrier gate or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and the control board are accordant or not.
Our Service
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
