Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-132
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: USD200~250 per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |

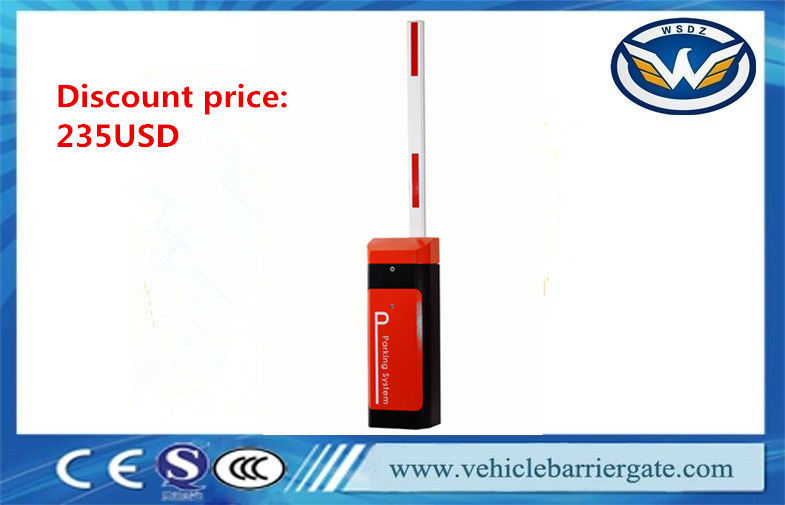

80*45 Telescopic Arm Automatic Barrier Gate For Underground Parking Lot |
Operation Time: |
1.8s.3s.6s |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Rated Power: |
80W |
Capacitor: |
9+9uF/450W |
Humidity: |
≥ 90%RH |
Name: |
80*45 Telescopic Arm Automatic Barrier Gate For Underground Parking Lot |
Operation Time: |
1.8s.3s.6s |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Rated Power: |
80W |
Capacitor: |
9+9uF/450W |
Humidity: |
≥ 90%RH |
80*45 Telescopic Arm Vehicle Barrier Gate For Underground Parking Lot
Functions & Features
1)Open the barrier gate by motor wheel when power off and automatic locking when power on. |
2)Balanced boom running with a motor transmission of cranks and shafts. |
3)Well-intergrated with car parking system equipments,with wire control(must be switch signal) |
4)Connector for traffic light(AC220v,power less than 40W) |
5)Offering dry contact signal for car parking system.(COM,NC,NO) |
Specification:
Model | DZ-132 |
Working Temperature | -35℃~+60℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Capacitor | 9+9uF/450W |
Speed | 1.8S,3S,6S |
Max boom length | 5meters |
Remote Control | 100m in the open place |
Arm position adjustment.
2)First please set the arm horizontally and vertically through regulating nut to leangthen or shorten the connecting rod, and then tighten M12 safety nuts.
2)To make the arm well balanced, please adjust the M8*140MM spring regulating screw accordingly.
3)For barrier agte with double springs, please adjust the springs simultaneously.
Motor Speed and Boom Type:
Boom type | Boom Length(M) | Opening time(S) | Height between boom and ground(M) |
Straight boom | 6M≥L>4.5M | 6S | H=0.8M |
4.5m≥L>3M | 3S | ||
3m≥L | 1.5S | ||
Folding boom 90 degree |
5m≥L>3M | 6S | |
3m≥L | 3S | ||
Folding boom 180 degree
|
5m≥L>3M | 6S | |
3m≥L | 3S | ||
Fence Boom Two-level |
5m≥L | 6S | H=0.9M |
Fence boom Three-Level |
m≥L | 3S | H=1.5M |
Selection of spring.
Spring type | Diameter | Spring Length |
Small size | 4.5MM | 280MM |
Medium size | 5.5MM | 280MM |
Big size | 6.5MM | 280MM |
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
3. Why does the barrier finish half operation of opening and closing?
4. When barrier closed, why is there a 5 degree angle of inclination?
5. When barrier finish open, but it closes itself without any order control, what's the problem?
6. Why does the arm wave a lot when opening and closing?
7. Rubber linning installation suggestion:
8. Can you accept OEM/ODM order?
