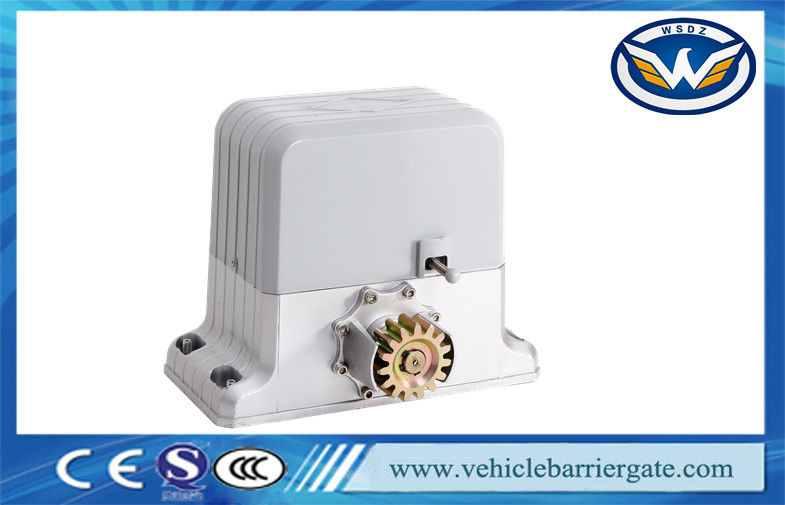

Garden Door Opener Electric Sliding Gate Motor With Steel Rack

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE/SGS/ISO

Model Number: WSSG-102

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negitiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,, Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

slide gate motor

,

automatic sliding gate opener

Product Name:
Best Quality Electric Garden Door Opener Sliding Gate Motor With Steel Rack
Power Supply:
220V±10%, 110V±10%, 50/60HZ
Maxloaad Weight:
1800kgs
Open(close) Speed:
V=12m/min
Rated Power:
350W
Motor Material:
100% Pure Copper Material
Maximun Pull:
1100N
Control Type:
Remote Control
Net Weight:
10KG
Keywords:
Sliding Gate Motor
Product Name:
Best Quality Electric Garden Door Opener Sliding Gate Motor With Steel Rack
Power Supply:
220V±10%, 110V±10%, 50/60HZ
Maxloaad Weight:
1800kgs
Open(close) Speed:
V=12m/min
Rated Power:
350W
Motor Material:
100% Pure Copper Material
Maximun Pull:
1100N
Control Type:
Remote Control
Net Weight:
10KG
Keywords:
Sliding Gate Motor
Description
Garden Door Opener Electric Sliding Gate Motor With Steel Rack

Garden Door Opener Electric Sliding Gate Motor With Steel Rack

​

  • Product Display

Garden Door Opener Electric Sliding Gate Motor With Steel Rack

Garden Door Opener Electric Sliding Gate Motor With Steel Rack

Garden Door Opener Electric Sliding Gate Motor With Steel Rack

  • Specifications
  • Power supply range: AC220V/110V±10% 50/60Hz
  • Net weight: 8.5kg
  • Max loading weight: 1800kg
  • Working temperature of motor: -25 to +55 Celsius degree
  • Working humidity: ≤85%
  • Rated power: 200w
  • Output gear module: M=4
  • Output gear number: Z=16
  • Open(close) speed: v=12m/min
  • Maximum pull: 1100N
  • Package one set in one carton



  • Functions of Sliding Gate Motor

  • Integrated mechanical and electrical, all functions on one controller
  • Radio controller or lines to control open, close and stop functions
  • Magnetic limit switch, the door stops when it moves to the limit
  • Accurate limit braking
  • Electronic soft-start
  • Dialing switches to adjust the motor rotation in both directions
  • Open and close limits have a self-locking function
  • Intelligent operation - if an obstacle is detected when the door is closing, it will reverse to open,then after 10seconds it attempts to close automatically unless you press the stop keystroke
  • Movement indication - the indicator lights up when the door is moving
  • Optional line control or remote control



  • Packing

Garden Door Opener Electric Sliding Gate Motor With Steel Rack

  • Payments&Shipment
  1. Payment: T/T,Payapl,Western Union ,30% deposit before production,70% balance paid before delivery
  2. Samples can be delivered out within 3days
  3. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
  4. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving
  5. Shipping freight are quoted based on your requests
  6. Discounts are offered based on order quantities



  • Packing List



Packing list
Name Quantity Unit Remark
Sliding gate operator 1 set Necessary
Remote control 2 pcs Necessary
Internal hexangular bolt 4 pcs M8*40
Internal hexangular bolt 4 pcs M6*16
Left limit iron 1 pcs Necessary
Right limit iron 1 pcs Necessary
Base board 1 pcs Necessary
Release key 2 pcs Necessary
Manual 1 pcs Necessary
Infrared photocell 1 set Optional
Radio emitter 1 set Optional





  • Our Service
  •  OEM Brand, Logo, Label available
  •  1 Year Standard Warranty, excellent after-sales service
  •  24h*7d at your service to give you best support
  •  Detailed installation manual and wiring diagram to make everything be easy
  •  Fast finishing time for you to become more competitive at your local market :3-5 days for small order
