|Working Temperature::||-40°to 75°||RS485:||YES|
|Arm Type:||Straight Articulated, Fence||Power Supply::||AC 220±10%, 110±10% 50/60HZ|
|Arm Material:||Aluminium Alloy||Automatic:||Manual Release|
parking lot gate arms,
automatic car park barriers

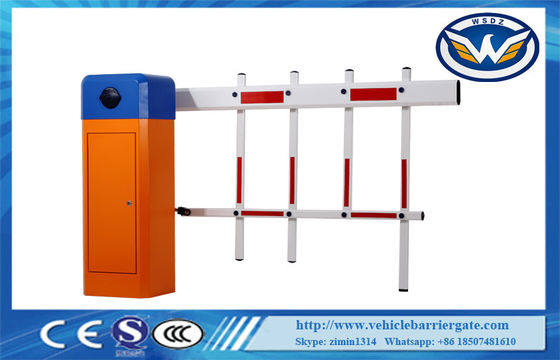

Fence Boom Intelligent Barrier , Road Security And Paking vehicle access barriers
Communication with customers
Q: What's WONSUN monthly production capacity for barrier gate?
A: 3000 units.
Q: As for the over-heating problem of barrier gate
A: WONSUN WSTP-series barrier gate has motor cooling fan which can solve the problem of over heating-protection.
DZ-series don't have motor cooling fan, but the aluminum alloy housing can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page
of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WONSUN 418 remote control can cover 100 meters, but it is not safe and stable to control the
barrier gate from 100 meters away. WONSUN recommends using the remote control within 30 meters or 50 meters.
1. By-security. The barrier gate will automatically reverse when meeting obstacles during closing.
2. AC motor is more powerful and no maintenance.
3. Barrier Beam/arm can be chosen from 3 meters to 6 meters
4. closing time is also arranged from 1 second to 6 seconds.
5. Installation Direction of the boom can be chosen——right-installed or left-installed
6. All the operation process is soft without any noise and shaking.
7. Infrared photocell interface, Loop detector interface and IC system
8. interface are reserved for the other functions.
1. Clutch key can be used to open the clutch when power off.
2. Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting.
Unique temperature calefaction design for low temperature using, prevent freezing in cold weather.
3. Exactitude aluminum alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.
4. Thimble type motor worm design for preventing plugging up in using.
5. Balance spring no noise and easy adjusting design
6. Double limit methods (electronic limit and motor sensor memory limit) for beam rises and falls.
|Voltage||220V±10%, 110V±10%, 50/60HZ|
|Remote control distance||≥30m|
|Speed||1S,1.8S, 3S, 6S|
|Max boom length||
6 meters(straight boom)
4.5 meters(2 fence boom)
4 meters(3 fence boom)
The orginal color of this model is orange. However we also provide color option for you according to your own need.
Packaging Details: carton or wooden box
Delivery Detail: 3-7 days after payment
