Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-115
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Model Number:: |
WSTP-115 |
Brand Name:: |
WONSUN |
OEM/ODM:: |
Supported |
Material:: |
2mm Cold Roll Plate |
Color:: |
Red, Orange,blue, Customized |
Housing Size:: |
320*280*920 Mm |
Arm Type:: |
Straight, Folding, Fencing |
Boom Length:: |
Boom Length:: |
Waterproof Rate:: |
IP54 |
Speed:: |
0.6s,1s, 1.8s,3s,6s |
Model Number:: |
WSTP-115 |
Brand Name:: |
WONSUN |
OEM/ODM:: |
Supported |
Material:: |
2mm Cold Roll Plate |
Color:: |
Red, Orange,blue, Customized |
Housing Size:: |
320*280*920 Mm |
Arm Type:: |
Straight, Folding, Fencing |
Boom Length:: |
Boom Length:: |
Waterproof Rate:: |
IP54 |
Speed:: |
0.6s,1s, 1.8s,3s,6s |
Commercial Intelligent Yellow Harga Vehicle Barrier Gate For Access Control
Product parameters:
| Model number: | WSTP-115 |
| Power: | 80W |
| Working environments: | indoor, outdoor |
| Voltage: | 220V ± 10%, 110V ± 10% |
| Relative Humidity | <90% coagulation free |
| Motor speed: | 30r/min |
| Boom length | Max 6 meters |
| Net weight: | 50KG |
| Housing Size | 320*280*920 |
| Arm Type |
Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy |
| Application |
Parking Lots, Toll Gates, Goods Yards, Railway Crossings, |
Function and features:
1.The humanized clutch device: in cace of power off, unlock the clutch device and raise the boom manually. By the time the power is supplied, lock the clutch device to make it working normally again.
2.Special spring device: Both the compression spring and tension spring can be used in the machine. Using the compression spring can avoid accidents caused by the tension spring.
3. Three control buttons: for boom raising, falling and parsing.
4.Boom backtrack function: the boom will rise if it hits something when falling
5. Infrared photocell design: for avoiding the crash when the boom falling,so as to prevent the vehicles from being pressed
6. Both exteral and internal loop detectors are supported.
7. 'Open','Close' and 'Stop' controlling interfaces.
8.RS-485 communication serial interface (optional)
9.Traffic light signal connection device: red linght for stop; green linght for pass.
10.Remote control and wire control for selection.

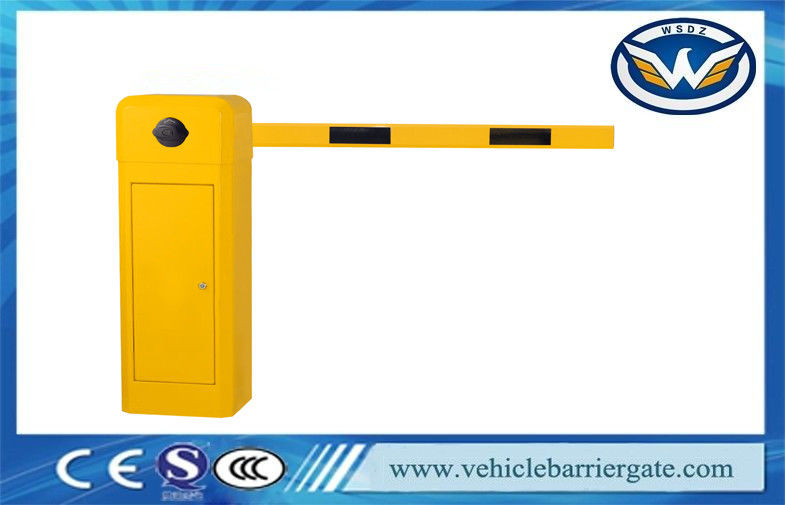

Product photograph:
