Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd

Products

Home /

Products

Solar Car Park Barrier Gate

Name: Solar Car Park Barrier Gate
Brand: Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd
SKU: DC-WS-DZ-T01
Price: 1,172.00 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen China

Brand Name: WONSUN

Certification: CE

Model Number: DC-WS-DZ-T01

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: NEGOTIABLE

Packaging Details: Packed with foam inside and carton outside

Delivery Time: More than 7 work days

Payment Terms: NEGOTIABLE, T/T

Supply Ability: 3000 sets/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              solar powered car barrier gate, vehicle parking barrier with solar, automatic solar car park gate


Package Size:	5454201740MM	Frequency:	50/60Hz
Voltage:	110-220VAC, 24VDC	Max Boom Length:	6 Meter
Rated Power:	160W/200W/120W	Protection Level:	IP54
Working Humidity:	≤90%	Speed:	1.5s-6s Adjustable

Package Size:	5454201740MM
Frequency:	50/60Hz
Voltage:	110-220VAC, 24VDC
Max Boom Length:	6 Meter
Rated Power:	160W/200W/120W
Protection Level:	IP54
Working Humidity:	≤90%
Speed:	1.5s-6s Adjustable

Description

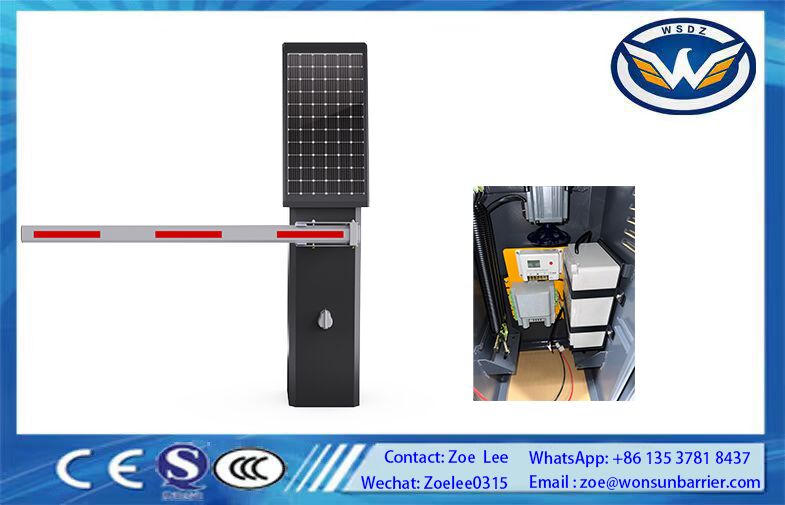

Solar Car Park Barrier Gate

Managing vehicle entry and exit has never been more efficient than with our Solar-Powered Car Park Barrier Gate. Tailored for parking facilities, residential compounds, business centers, and secured areas, this straight-arm barrier system blends rugged build quality with smart features to streamline traffic flow while boosting on-site security. It’s the all-in-one solution for modern parking management needs.

Key Highlights: Versatility Meets Reliability

A major draw of this parking barrier lies in its flexible power configurations. With selectable rated power outputs of 120W, 160W, and 200W, it adapts to diverse operational demands—delivering peak performance when needed and conserving energy during low-traffic periods, which cuts down long-term operational expenses.

Voltage compatibility is another strong suit: it works seamlessly with both 110-220VAC mains and 24VDC power sources. This broad range eliminates the need for extra voltage converters, making it suitable for installation across different countries and regions, and simplifying the setup process significantly.

Solar Energy System: Off-Grid Freedom

No access to the power grid? Not an issue. Our integrated solar system, featuring premium monocrystalline silicon panels (superior to polycrystalline alternatives), ensures independent operation. The setup includes two 40W panels (80W total) with a 90° adjustable angle—so you can always position them to capture maximum sunlight.

Solar Component	Specs	Benefits
Panels	2×40W Monocrystalline Silicon	High conversion rate, extended durability
Energy Storage	20AH Lithium Battery + Specialized Controller	Rapid charging, steady power, overload safety
Daily Output	~0.6 kWh	Covers full daily operational needs

Motor Options & Build Quality

Choose from three brushless motor setups to match your usage: Standard (energy-efficient, low noise), Upgrade (higher torque, longer life), or Custom (for heavy-duty use). The barrier’s 2.0mm thick metal frame resists impacts and wear, while its 1.7m height accommodates larger vehicles.

Technical Specs

Max Boom Length: 6m
Operation Speed: 1.5s-6s (adjustable)
Protection Grade: IP54 (dust/water resistant)
Working Temp: -35°C to 65°C
Remote Range: Up to 100m
MTBF: 5 Million Cycles

Performance Metrics

On a full charge: 13,500+ operating cycles. Standby time: 5-7 days (ideal for rainy spells). Full recharge: 1.5 days in good sunlight. Noise level: ≤55dB (quiet for residential use).

Contact

Zoe Lee

WhatsApp: 0086 13537818437.

Custom solutions available with global tech support.
