ODM SGS IP54 car barrier gate / motorised security arm gates vehicle access

ODM SGS IP54 car barrier gate / motorised security arm gates vehicle access
ODM SGS IP54 car barrier gate / motorised security arm gates vehicle access ODM SGS IP54 car barrier gate / motorised security arm gates vehicle access ODM SGS IP54 car barrier gate / motorised security arm gates vehicle access

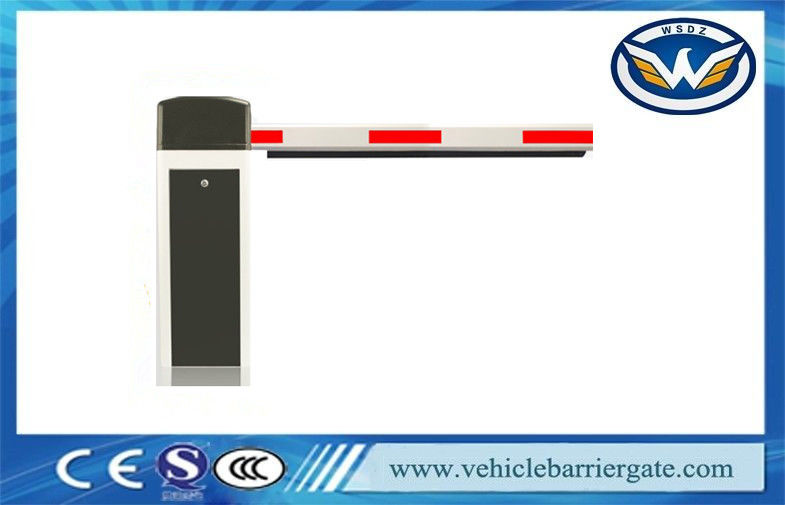

Large Image :  ODM SGS IP54 car barrier gate / motorised security arm gates vehicle access

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE/ISO/SGS
Model Number: WSTP-122
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

ODM SGS IP54 car barrier gate / motorised security arm gates vehicle access

Description
Name: Traffic Light Interface Barrier Gate Material: 2mm Cold Rolled Steel Plate
Voltage: AC220/110V,50/60HZ OEM/ODM: Accepted
Operation Time: 0.6,1.8s,3s,6s Net Weight: 60KG
Protection Grade: IP54 Keywords: Traffic Barrier Gates
Color: Black And White As Standard One More Remote: Optional
High Light:

electric barrier gate

,

car park barrier gate



ODM SGS IP54 car barrier gate / motorised security arm gates vehicle access


WHAT IS IT ?

Barrier Gate, also known as the block device, was originally introduced from abroad, the English name Barrier Gate, is dedicated to the road on the restricted motor vehicle access channel management equipment, is widely used in highway toll stations, parking system management vehicle access, In the management of vehicle access. Electric barrier can be achieved through the wireless remote control landing gear alone, can also be through the parking management system (IC card management system) to implement automatic management of the state, admission card to take off the vehicle, the appearance of parking fees automatically after the release of vehicles.

WHY CHOOSE US ?

The Wonsun barrier gate series ,which manufactured by our company,adopt the latest automatic technology and intelligent desigh ahead in this field .Meanwhile our barrier gates series have the promethean design,such as humanization clutch device,balance device,which makes our barrier gates work more safely and conveniently.And we believe our barrier gate series can meet your high quality demand.

HOW TO USE ?

1. Please select the right type of the barrier gates according to the specifications of the place.Fix the barrier gate case board with expansion bolts.
2. Fix the boom to the boom tray with the boom press board, then cover the boom capuche with the screws. After that ,fix the cover of the boom to the splint and fasten them with four screws of 4*16, and slip the cover tap with the cover by two 3*10 screws.
3. Unlock the clutch device with the clutch key clockwise .Move the boom to the horizontal and vertical manually to make sure there is no obstruction.Then turn on the power .


MORE DETAILS ABOUT LENGTH AND SPEED YOU NEED ,
AND THE TYPE OF ARM YOU WANT ,WELCOME CONTACT.


Before you order ,something you need to know :





Model WSTP-122
Size 325*280*936mm
Voltage AC 220V/110V±10%, 50/60HZ
Rated Power 120W
Operation time 0.6s, 1s, 1.8s, 3s,4s,6s. Customized
Working Temperature -40℃~+75℃
Boom type  staight boom ,90°folding boom ,180° folding boom ,two fence boom ,three fence boom
Material

Galvanized plate or Cold roll plate, 2.0mm thickness sheet
3 years without rust, shedding and fading

Spring And Bearing Heat Treatment: more durable, more than 5 million times through operation testing
Remote Control Distance
Usually 80-120meters, if there is less obstacles, even 150 meters or more
Packing Size

1020*375*467mm , with seven layers carton case
inside with air bubble film for protection

Delivery

By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested

machine core Third generation





  • Application Range

This automatic gate barrier provides a secure and convenient solution of stopping unauthorized vehicle of giving access :airport, shopping mall,warehouse,hotel, factories, condominium, car rental companies, Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Highway, Hotel, Community,Bus Station,Commercial Premises, Aparment Block ,etc



  • Functions & Features

1) Manual release
2) Machine core with compression spring,effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor,prescision and good at thermal riadiating
4) Motor cooling fan,sloving the probelm of heat-protection
5) Double safety limit switches(photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anto-bumping function(optional)
9) Suppot the external and internal VEHICLE LOOP DETECTOR(optional)
10) Traffic light interface
11) Wire control(switch signal)/ Remotte control(418MHZ)
12) RS485 communication module(optional)

Third generation machine core
 ODM SGS IP54 car barrier gate / motorised security arm gates vehicle access 0




Packing&Shipping
We use strong carton case with air bubble filled inside to protect products and save your cost.




boom lenghths with speeds



description Max boom length Action time (s) boom height ( m)
Slow speed ,straight L ≤ 6 m 6 0.83
Medium speed ,straight L ≤ 4.5 m 3 0.83
Quick speed,straight L ≤ 3 m 1-2 0.83
Fastest speed ,straight L ≤ 2.5 m 0.6-0.8 0.83
90° Folding boom L ≤ 5 m 0.6-6 0.83
180° Folding boom L ≤ 5 m 0.6-6 0.83
fence boom (2/3) L ≤ 4.5 m 6 0.9/1.5


  • Our Services
  • Your inquiry concerns about our products or prices will be replied in 12 hours
  • Well-trained and experienced sales staffs answer all your enquires in fluent English
  • OEM & ODM, any your customized products we can help you to design and put into production
  • Protection of your sales area, ideas of design and all your private information
  • Deliver by air mail or ship for your orders

The explaining authority of this product instruction and service article belongs to the production factory.
