|Name:||High Quality Machinery Barrier Gate||Material:||2mm Cold Rolled Steel Plate|
|Operation Time:||0.6,1.8s,3s,6s||Net Weight:||60KG|
|Protection Grade:||IP54||Keywords:||Parking Barrier Gates|
|Color:||Orange, Blue, Customized||One More Remote:||Optional|
electric barrier gate,
car park barrier gate

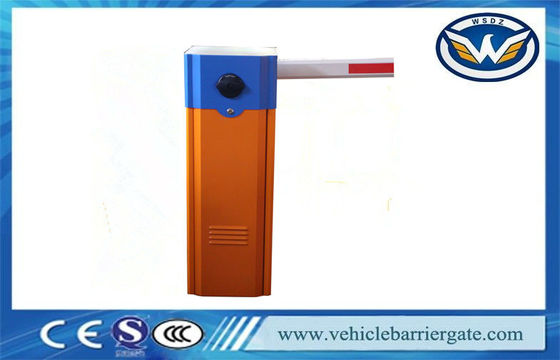

Machinery Car Parking Barrier Gate / Vehicle Access Gates For Highway Toll System
WHAT IS IT ?
Barrier Gate, also known as the block device, was originally introduced from abroad, the English name Barrier Gate, is dedicated to the road on the restricted motor vehicle access channel management equipment, is widely used in highway toll stations, parking system management vehicle access, In the management of vehicle access. Electric barrier can be achieved through the wireless remote control landing gear alone, can also be through the parking management system (IC card management system) to implement automatic management of the state, admission card to take off the vehicle, the appearance of parking fees automatically after the release of vehicles.
WHY CHOOSE US ?
The Wonsun barrier gate series ,which manufactured by our company,adopt the latest automatic technology and intelligent desigh ahead in this field .Meanwhile our barrier gates series have the promethean design,such as humanization clutch device,balance device,which makes our barrier gates work more safely and conveniently.And we believe our barrier gate series can meet your high quality demand.
HOW TO USE ?
1. Please select the right type of the barrier gates according to the specifications of the place.Fix the barrier gate case board with expansion bolts.
2. Fix the boom to the boom tray with the boom press board, then cover the boom capuche with the screws. After that ,fix the cover of the boom to the splint and fasten them with four screws of 4*16, and slip the cover tap with the cover by two 3*10 screws.
3. Unlock the clutch device with the clutch key clockwise .Move the boom to the horizontal and vertical manually to make sure there is no obstruction.Then turn on the power .
MORE DETAILS ABOUT LENGTH AND SPEED YOU NEED ,
AND THE TYPE OF ARM YOU WANT ,WELCOME CONTACT.
Before you order ,something you need to know :
|Voltage||AC 220V/110V±10%, 50/60HZ|
|Operation time||0.6s, 1s, 1.8s, 3s,4s,6s. Customized|
|Boom type||staight boom ,90°folding boom ,180° folding boom ,two fence boom ,three fence boom|
Galvanized plate or Cold roll plate, 2.0mm thickness sheet
|Spring And Bearing||Heat Treatment: more durable, more than 5 million times through operation testing|
Remote Control Distance
|Usually 80-120meters, if there is less obstacles, even 150 meters or more|
1020*375*467mm , with seven layers carton case
By Sea: big order(more than 100 sets), Cheap, suggested
This automatic gate barrier provides a secure and convenient solution of stopping unauthorized vehicle of giving access :airport, shopping mall,warehouse,hotel, factories, condominium, car rental companies, Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Highway, Hotel, Community,Bus Station,Commercial Premises, Aparment Block ,etc
1) Manual release
2) Machine core with compression spring,effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor,prescision and good at thermal riadiating
4) Motor cooling fan,sloving the probelm of heat-protection
5) Double safety limit switches(photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
8) Support the INFRARER PHTOCELL for anto-bumping function(optional)
9) Suppot the external and internal VEHICLE LOOP DETECTOR(optional)
10) Traffic light interface
11) Wire control(switch signal)/ Remotte control(418MHZ)
12) RS485 communication module(optional)
First generation machine core
We use strong carton case with air bubble filled inside to protect products and save your cost.
|description||Max boom length||Action time (s)||boom height ( m)|
|Slow speed ,straight||L ≤ 6 m||6||0.83|
|Medium speed ,straight||L ≤ 4.5 m||3||0.83|
|Quick speed,straight||L ≤ 3 m||1-2||0.83|
|Fastest speed ,straight||L ≤ 2.5 m||0.6-0.8||0.83|
|90° Folding boom||L ≤ 5 m||0.6-6||0.83|
|180° Folding boom||L ≤ 5 m||0.6-6||0.83|
|fence boom (2/3)||L ≤ 4.5 m||6||0.9/1.5|
The explaining authority of this product instruction and service article belongs to the production factory.
