Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-130
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Brand Name: |
Wonsun |
Model Number: |
DZ-130 |
Arm Type: |
Straight, Folding, Fencing |
Housing Material: |
2mm Cold Roller Steel Plate |
Size: |
1000*352*302mm |
Color: |
Yellow,Red,Blue,Orange,White Grey Customized |
Brand Name: |
Wonsun |
Model Number: |
DZ-130 |
Arm Type: |
Straight, Folding, Fencing |
Housing Material: |
2mm Cold Roller Steel Plate |
Size: |
1000*352*302mm |
Color: |
Yellow,Red,Blue,Orange,White Grey Customized |

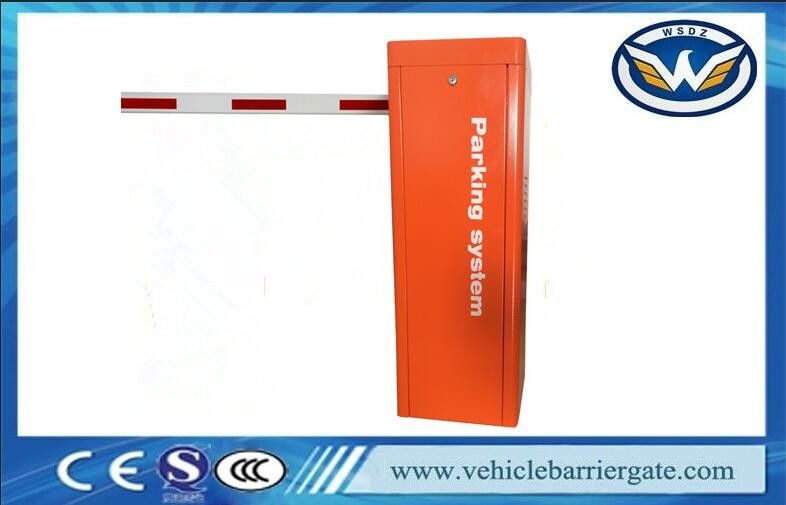

Electronic Automatic Parking Barriers , Road Barrier Gate Straight / Folding / Fence Arm
1. Why choose us ?
Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd cares about the success of its customers. Wonsun believes in helping coustomers define the best soultion for their particulate application. With our barrier gate expertise, Wonsun can help customer desigh customers in taking the complexity out of barrier gate, pedestrian barrier series and parking system.Because our focus is on Quality with a capital Q.We just won’t settle for less.
2.Product Details
| Model | DZ-130 |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Size | 1000*352*302mm |
| Operation time | 3s,6s. Customized |
| Rated Power | 100W/120W |
| Working Temperature | -40℃~+75℃ |
| Remote Control Distance | ≥30M |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
| Material |
Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
| Packing Size |
1020*375*467mm , with seven layers carton case inside with air bubble film for protection |
| Delivery |
By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested |
3. Functions and Features
1.The humanized clutch device: in cace of power off, unlock the clutch device and raise the boom manually. By the time the power is supplied, lock the clutch device to make it working normally again.
2.Special spring device: Both the compression spring and tension spring can be used in the machine. Using the compression spring can avoid accidents caused by the tension spring.
3. Three control buttons: for boom raising, falling and parsing.
4.Boom backtrack function: the boom will rise if it hits something when falling
5. Infrared photocell design: for avoiding the crash when the boom falling,so as to prevent the vehicles from being pressed
6. Both exteral and internal loop detectors are supported.
7. 'Open','Close' and 'Stop' controlling interfaces.
8.RS-485 communication serial interface (optional)
9.Traffic light signal connection device: red linght for stop; green linght for pass.
10.Remote control and wire control for selection.
4.Common malfunctions and solutions
1. Motor works but there is no reacion on the arm;
a. Please check whether the clutch device is locked or not.
2.The boom could not rise up or fall down to the end;
a. When change a long boom to a short one, please readjust it ,
b. The sensor dose not plug well, please check it.
c. The "Speed adjust switch" is wrong adjust, please readjust it.
3.The distance of the charge capacity of the remote controller is enough or not
4. There is no reaction when pressing the remote controller buttons,
a. Please check whether the power is supplied to the barrier gate or not,
b. Please check whether the fuse is burnt out or not
c.Please check whether the code both in the remote controller and the controller board are accordant or not
5.Service items
1.One year's free servicing is supplied(not including the arm);
2.Lifetime charged servicing is offered;
3.Technology servicing is supplied;
The following situations are charged for servicing(or changing);
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the system destroyed by wrong installation or use
4. Broken by natural disaster
5. Overdue
6. Servicing items out of our promises
Any question about toll gate price, quality, shipment, please don’t hesitate to contact us. Becky
will reply your within 5 minutes when I am in office during 8:00 am to 22:00pm in Chinese Time.
Many thanks in advance .
