Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132C
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Color: |
Black, Red, Blue , Orange |
Open / Close Time: |
1.8s, 3s, 6s |
Housing Dimension: |
302 * 352 * 1000 Mm |
Arm Type: |
Straight Arm, Folding Arm, Fence Arm, Optional |
Housing Material: |
1.5mm Cold Roller Steel Plate |
Power Supply: |
AC 220V / 110V |
Color: |
Black, Red, Blue , Orange |
Open / Close Time: |
1.8s, 3s, 6s |
Housing Dimension: |
302 * 352 * 1000 Mm |
Arm Type: |
Straight Arm, Folding Arm, Fence Arm, Optional |
Housing Material: |
1.5mm Cold Roller Steel Plate |
Power Supply: |
AC 220V / 110V |

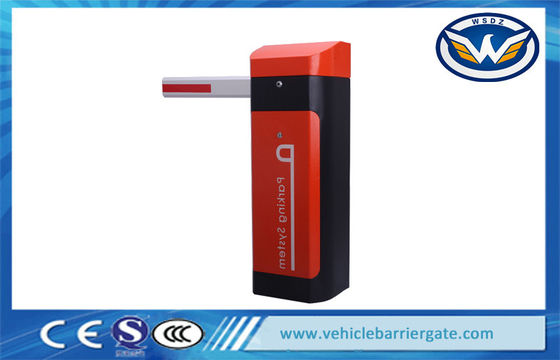

Motorised Remote Control Automatic Barrier Gate For Community Parking Area
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
Optional Accessories:
1. Loop detector: single loop detector or dual channel loop detector
2. Photocell
3. Flash light
4. Boom rest/ arm holder
5. Control board
Automatic Barrier Gate Functions&Features:
1) Machine core with tension spring, effectively avoids the accidents caused by spring breaking
2) Die-casting aluminum alloy motor, precision and good at thermal radiating
3) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
4) Arm swing out
5) Support the INFRARER PHTOCELL for anti-bumping function (optional)
6) Support the external and internal VEHICLE LOOP DETECTOR (optional)
7) Traffic light interface
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)
Automatic Barrier Gate Technical data:
| Name | Automatic Barrier gate |
| Model | DZ-132C |
| Size | 302*352*1000mm |
| Rating Voltage | AC 220/110V ±10%, 50/60Hz |
| Motor Power | 120w |
| Speed Option | 1.8s; 3s; 6s |
| Material | 1.5mm galvanized plate or cold roll plate with epoxy paint |
| Weight | 55 KG |
| Operation Testing | More than 5 million times |
| Arm Option |
Straight arm, 1-6 m for option, 45*80mm or 45*100mm Folding arm, 1-4.5 m for option, 90 degree or 180 degree Fence arm, 1-5m for option, two fence or three fence |
| Working Temperature | -45°C — +75°C |
| Remote Control Distance | Less than 30m |
| Package |
Packing size: 1040*352*470mm, standard export carton case Inside with PE foam for collision protection |
| Application | Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center |
Parking list:
| Items | quantity | items | quantity |
| Paint-coated case | 1 | motor | 1 |
| Transmission | 1 | limit switch | 1 |
| Barrier arm | 1 | capacitor | 1 |
| Spring | 1 | circuit board | 1 |
| Remote control device | 2 | console control device | 1 |
| Installation kit | 1 |
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Communication with customers
1) Q: Connected power and press open/close button but car parking barrier gate no action?
| A | Reason | Solution |
| 1 | Fuse blown | Check fuse and power in controller |
| 2 | Battery of remote control powered off | Change a new one |
| 3 | External protection circuit break or at protecting status | Open the barrier door and click OPEN/CLOSE button on control box |
| 4 | Same frequency interference | Check photocell and loop detector |
2) Q:Connected power and press open/close button, car parking barrier gate will move but even when it is at right position, the motor still running and not stop?
| A | Reason | Solution |
| 1 | Limit switch | Adjust the horizontal/vertical limit switch to correct position |
| 2 | Main controller failure | Change a new one |
3) Q: Motor running but car parking barrier gate arm no action?
| A | Reason | Solution |
| 1 | Barrier arm at 45° position where is hard to move | Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
| 2 | Tension of balancing spring not suitable | Adjust spring exactly |
| 3 | Low working voltage | Check the voltage and power |
4) Q: When opening/closing, car parking barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?
| A. | Reason | Solution |
| 1 | Length adjustment of connecting rod not correct | Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
| 2 | Nuts on the limit switch loose | Tighten the nuts when arm at 90° vertical and 180° horizontal position |
