Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-131
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Features: |
Heavy Duty, Manual Release, Swing Out, Remote Control |
Name: |
AC 100% Heavy Duty Intelligent Automatic Barrier Gate For Vehicle Use |
Housing Material: |
2mm Cold Roller Steel Plate |
Package: |
Carton |
Car Parking: |
Vehicle Control Barriers Gate |
Power Consumption: |
80w |
Features: |
Heavy Duty, Manual Release, Swing Out, Remote Control |
Name: |
AC 100% Heavy Duty Intelligent Automatic Barrier Gate For Vehicle Use |
Housing Material: |
2mm Cold Roller Steel Plate |
Package: |
Carton |
Car Parking: |
Vehicle Control Barriers Gate |
Power Consumption: |
80w |

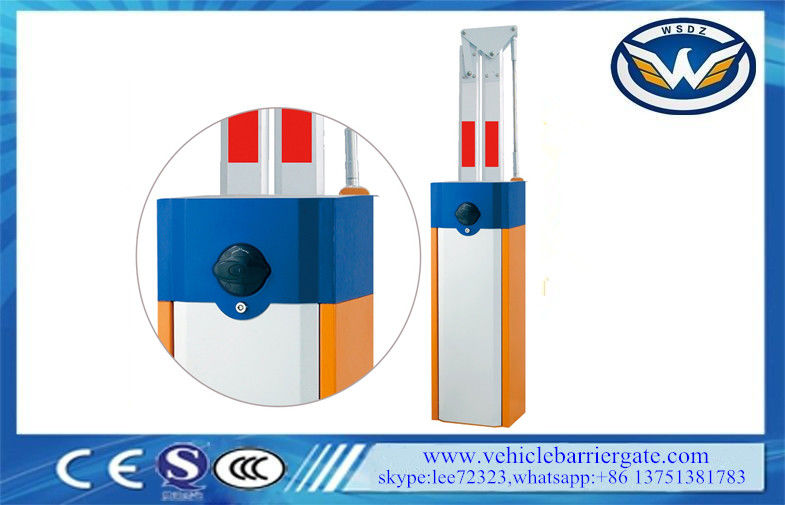

AC 100% Heavy Duty Intelligent Automatic Barrier Gate For Vehicle Use
Quick Detail:
Name:Parking barrier gate
Speed:1s,1.8s.3s 6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V
Technical Data
| Model |
DZTP-131(WONSUN 1st generation machine core) |
| Mechanical temperature |
-40°C to 75°C |
| Electrical temperature |
-10°C to 75°C |
| Power supply input |
220V ± 10% AC, 50 / 60Hz |
| Power consumption |
80 watt |
| Relative humidity |
<90% |
| Relative Humidity |
<90% coagulation free |
| Arm speed |
0.6,1,1.8, 3, 6,8 second |
| Boom length |
Max 6 meters |
| Net weight: |
50Kg |
| MCBF |
≥5, 000, 000 times |
| Internal lubrication |
Grease |
| Max starting torque | Max torque : 1 second : 1.4±0.2 N.M | 3 / 6 second : 2.1 ± 0.1 N.M |
| AC rotation speed | AC rotation speed :1 second : 900 ± 50 RPM | 3/6 second : 460 ± 40 RPM |
Features
|
Intelligent. Advanced smart motor control system is combined with unique lever design to achieve swift arm movement that reduces bouncing at end position. Dual Spring mechanism to achieve two times smoother arm motion. Combination of different tension force reduced vibration as the arm stop. Well balanced arm weight reduces the possibility of broken spring thus reducing down time. Dual Sensor Detection to achieve double safety. Innovative design monitors current spike and motor rotation simultaneously to auto-reverse arm if blocked by obstacle. This is an important safety feature to prevent further damage in the event when arm hit car or pedestrian. motor uses lowest possible rotation speed (RPM) with our force rotation ratio technology to achieve high speed opening. This reduces mechanical wear and effectively eliminates any maintenance servicing on the motor. Improved air ventilation. New fan design located at top instead of sideways. This allowed cool air enter from bottom and exit from top to achieve more efficient cooling this enabling to support higher flow of traffic. Safe. Arm will auto-reverse when hitting an obstacle during closing. Photo beam can be added to autoreverse the arm ahead of time before hitting approaching vehicle or human. Arm will swing out during direct collision from front avoid arm frequently broken . Traffic light (red & green) can be added to indicate permission to pass through and further enhance safety usage. Built-in MCB to protect against any electric hazard. Heavy Duty. eliminates the use of mechanical limit switch thus reducing mechanical wear and tear. Innovative counter weight spring design avoids possibility of motor over-stressed and break due to high volume continuous open/close cycle. All these allow to work harder and work longer for you. Fast speed. 0.8 sec fast opening / closing speed allow more car to pass through faster thus effectively reducing congestion during peak hours. User Friendly. In the event of power failure, arm can be easily lifted up by insert a key from outside to unlock the clutch. There is no need to open up entire casing to avoid any vandalism attempt of internal parts. Easy maintenance. Epoxy powder paint will keep the unit looking clean and new for years. Damaged barrier arm can be replaced easily. AC based motor is stronger and maintenance free (no need to change carbon). |
Built in spring mechanism to counter balance arm’s weight allow for effortless motor drive and longer mechanical life span.
Control panel Consist of advance intelligent microprocessor based board and transformer housed in a weather resistant plastic casing. It controls the operation of the barrier system.
Function:
A)Support 4 types of speed – 1 ,1.8, 3 , and 6 second
B)Support separate push button for opening , closing and stop
C)Support motor encoder sensor
D)Support traffic light (red – green) output AC230
E)Optical slot sensor to control up and down limit
Casing is made from weather proof ABS plastic.
Casing dimension: 211mm x 95mm x 118mm
.
FAQ
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
my dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or
call me!
We will provide our best professional service for you.
7.How to import your machines?
* We will prepare gate barrier and shipment for you after payment;
*We will give you bill of loading after gate barrier depart our shipping port;
*Our shipping agent will contact you when gate barrier arrival
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
7. Best service barrier gate motor can accepted old to change new motor. The barrier gate is production by our factory.
.
Our Sevice
1.Professional staff answer your questions in English.
2.Customized design and OEM/ODM.
3.Supported by our professional engineers.
4.Special discount of our distributors or agents in their area.
5. Welcome you to visit our factory.
