|Name:||Remote Control Automatic Barrier Gate Controllable Car Stopper||Time For Up/Down:||0.6s,1s,3s,4s,6s|
|Power Supply:||220V±10%, 110V±10%, 50/60HZ||Color:||Grey,Black|
|Relative Humidity:||≤90%||Install Direction:||Right/Left|
electric barrier gate,
auto barrier gate

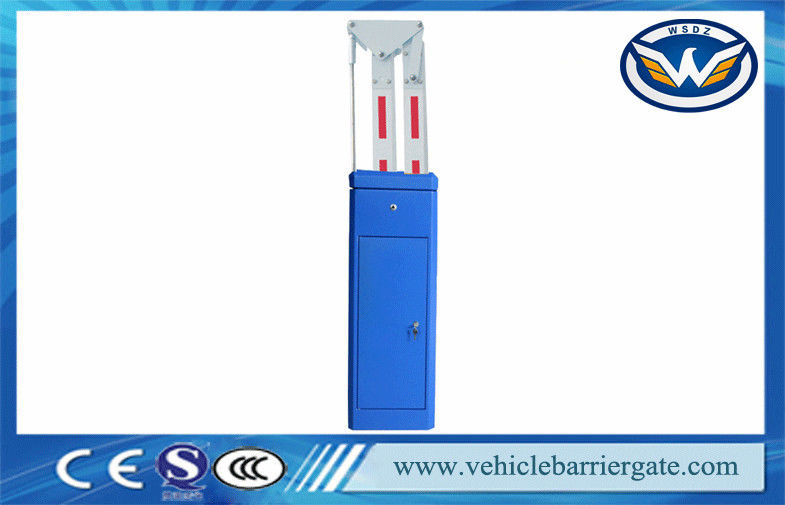

Remote Control Automatic Barrier Gate Controllable Car Stopper
1. Working temperature:-40~+75 degree centigrade.
2.Power: 220V±10%, 110V±10%, 50/60HZ
3.Rated power: 80W
4.Relative humidity: ≤90%
5.Remote control distance: ≥30m
6.Net weight: 56kgs
7.Speed: 1S, 3S, 6S
8.Protection Class: IP54
Why choose us?
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for
1. Manual release device to operate the barrier when power off.
2. Motor cooling fan to avoid the over-heating possibility
3. Automatic reversing when the barrier boom meets the obstruction
4. Auto closing realization through menu setting on the control panel
5. Interfaces available for infrared photocells, loop detectors, card readers,ticket dispensers, manual switch (wire control), traffic light
6. RS485 Communication Module is compatible
Application & Advantages
Wonsun barrier gate can be integrated with any vehicle access control equipment,
like ticket dispensers and other related car parking products.
Places like highways, toll systems, car parking lots, malls,
and other public areas needed vehicle access control.
1.durable and sturdy
2.trouble free operation
|Package||Carton or Wooden;|
|Trade Terms||EXW, FOB, CFR, CIF are preferred|
|Payment Terms||100% TT before delivery or Western Union|
Bulk orders: 12 to 15 days;
Our other products
Wonsun has other products as: tripod turnstiles, sliding gate motor,parking lock,swing gate motor, garage door opener,
pedestrian access control turnstiles and barriers,
and other related accessories.
Welcome to check our website for more information.
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
A: Booms for avoiding striking(medium-sized octagonal boom, round foam boom,elliptic boom)
B:180°articulated boom(Max 4M)
C:90° articulated boom(Max 4M)
D:2 fences boom(Max 5M)
E:3 fences boom(Max 4M)
Boom with LED lights and light colors changeable.
Light flashing pattern, speed and colors controlled by a remote control.
Anti-collision protects boom arm (optional)
Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once
boom arm was collided by a vehicle.
Safety--- Anti-hit by pressure resistance bounce
While moving down,arm will immediately go back to vertical position once it is obstructed by an
imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.
Safety--- Anti-hit by Loop Detector (Optional)
While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.
Safety--- Anti-hit by photocell (Optional)
While arm moving down, If infrared transportation between transmitter and receiver is blocked byhuman or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.
Safety--- Anti-hit by “Opening Priority”
If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by arm.
Automatically Close by loop detector (Optional)
If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered
Automatically open by loop detector (Optional)
If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered
Manually control in case of no power
Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.
Boom to open up fully or close down in case of power failure
If power is suddenly off while boom closing, boom will automatically close down fully if the angle
between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening,boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees
Anti-condensation in cold climate
The barrier remains low power consumption even without closing and opening input, which will
keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep working in frozen environment
Transparent plastic covers on Control Board
A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof, also protects operator.
