IP44 LED Boom Gate Intelligent Barrier Parking Lot Management System

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZTP-133-A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

parking lot gate arms

,

automatic car park barriers

Name:
LED Boom Gate Intelligent Barrier Parking Lot Management System
Relative Humidity:
≤95% Coagulation Free
Voltage:
220V±10%, 110V±10%, 50/60HZ
Rated Power:
80w
Net Weight:
65KGS
Payment:
30% T/T As Deposit In Advance And 70%T/T Before Loading
Name:
LED Boom Gate Intelligent Barrier Parking Lot Management System
Relative Humidity:
≤95% Coagulation Free
Voltage:
220V±10%, 110V±10%, 50/60HZ
Rated Power:
80w
Net Weight:
65KGS
Payment:
30% T/T As Deposit In Advance And 70%T/T Before Loading
Description

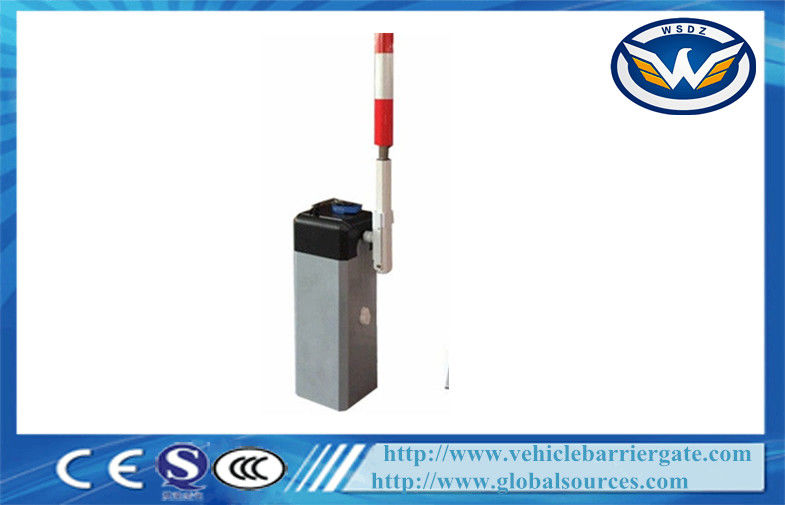

IP44 LED Boom Gate Intelligent Barrier Parking Lot Management System

LED Boom Gate Intelligent Barrier Parking Lot Management System





What is the davantages of Wonsun barriers?



1) The humanized clutch device:in case of power off, unlock the clutch device and raise the

boom manufally. By the time the power is supplied, lick the clutch device to make it working

normally again.

2) Special spring device:Both the compression spring and tension spring can be used in the

machine, Using the compression sprin can avoid accidents caused by the tension spring.

3) Three control buttons:for boom raising, falling and pausing.

4) Boom backtrack function:the boom will rise if hits something when falling.

5) Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent

the vehicles from being pressed.

6) Both external and internal loop detectors are supported.

7) "open","close" and "stop" controlling interfaces

8) RS-485 communication serial interface(optional)

9) Traffic light signal connection device: red light for stop,green light for pass.

10) Remote control and wire control for selection.





Technical Data
Working Temperature -35℃-75℃
Humidity ≤90%
Power Supply

220v±10%50/60Hz

110v±10%50/60Hz

Rated Power 120W/100W
Motor Rotational Speed 1400rpm
Protection Degree IP44
Remote Control Distance ≤50m
Max Boom Length 1-8M





IP44 LED Boom Gate Intelligent Barrier Parking Lot Management System 0



Optional Boom



A: Booms for avoiding striking(medium-sized octagonal boom, round foam boom,elliptic boom)

B:180°articulated boom(Max 4M)

C:90° articulated boom(Max 4M)

D:2 fences boom(Max 5M)

E:3 fences boom(Max 4M)



Boom with LED lights and light colors changeable.

Light flashing pattern, speed and colors controlled by a remote control.







Packing List



Items quantity items quantity
Paint-coated case 1 motor 1
Transmission 1 limit switch 1
Barrier arm 1 capacitor 1
Spring 1 circuit board 1
Remote control device 2 console control device 1
Installation kit 1





Anti-collision protects boom arm (optional)

Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once

boom

arm was collided by a vehicle.



Safety--- Anti-hit by pressure resistance bounce

While moving down,arm will immediately go back to vertical position once it is obstructed by an

imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is

adjustable.



Safety--- Anti-hit by Loop Detector (Optional)

While barrier boom moving down, If a coming vehicle was detected to be existing on the ground

induction coil, the arm will go back to vertical position immediately until loop input was dismissed

and then the arm will go down immediately.



Safety--- Anti-hit by photocell (Optional)

While arm moving down, If infrared transportation between transmitter and receiver is blocked by

human or vehicle, the arm will go back to vertical position immediately. The arm will automatically

close once the infrared transportation recovers.



Safety--- Anti-hit by “Opening Priority”

If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position

once a open command is given, which protect the vehicle not to be hit by arm.



Automatically Close by loop detector (Optional)

If loop detector is installed, after vehicle passed the barrier will automatically close once the loop

input was triggered



Automatically open by loop detector (Optional)

If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered



Manually control in case of no power

Once power is off, just open the cabinet and manually control the barrier by a gear mechanism.

Also barrier boom can be manually locked in any position between horizontal and vertical, the

lock status will remain until unlock manually.



Boom to open up fully or close down in case of power failure

If power is suddenly off while boom closing, boom will automatically close down fully if the angle

between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening,

boom will automatically continue to open up fully if the angle between boom and level surface

beyond 45 degrees.



Anti-condensation in cold climate

The barrier remains low power consumption even without closing and opening input, which will

keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep

working in frozen environment



Transparent plastic covers on Control Board

A transparent plastic covers on the Control Board to makes Control Board water proof and dust

proof, also protects operator.







For the things that most customer want to know:



1. MOQ: for our usual order, there is no MOQ; But for customized order, like customize color, printing LOGO, corrosion protection base, the MOQ is 30 sets.

2. Delivery Time: as for usual order, 3-7 days when we received your advance deposite or full payment(including Saturday), For customized order, it is 10-15 days after receiving your payment(including Saturday)

3. Production Potential: 80 sets of barrier gate finished in one day for usual order, for customized order, according to your detailed requirements

4. Quality Control: 3 control lines and 6 QC for Checking, first is motor testing line which can promise you good and durable motor;second is machine core testing line which can promise you stable function;final is barrier gate testing line which can promise you perfect working with its required boom with our experienced technicist's debugging

5. Service and Support: as for presales service, we will provide all the information you need and questions you asked; for aftersales, we will offer long term technical support, and we're sure that any of your feedback will receive our careful attentions and prompt reply.

6. Warranty: 12 months Since the barrier gate you recieve

7. Delivery Way: we can send the goods to you by Sea, Airplane and Express, but you need tell us which kind of way do you prefer and relative information. for example, if you want to delivery by sea, please kindly send us the shipping requirements, like FOB or CIF, and your nearby port.

8. Payment: for sample order: full payment; for usual order, 30-40% advance deposite, balance before shipment for large quantity.

As for here, if you have any pending orders or inquiry, please kindly feel free to contact us, we're sure that any of your feedback will receive our careful attentions and prompt reply.





Service for free: Service for charging:
1. One year free service is supplied(not including the arm) 1. Broken by wrong installation
2. Lifetime charged service is supplied 2. Broken by improper voltage
3. Technical service is supplied 3. The surfaces of the barrier destroyed by wrong installation and usage
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements. 4. Overdue service items are out of our promise.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
