|Name:||Parking System Automatic Barrier Gate For Parking Fee Payment||Housing Size:||320*250*944mm|
|Voltage:||220V±10%, 110V±10%, 50/60HZ||Net Weight:||65kgs|
|Motor Rotational Speed:||1400rmp|
electric barrier gate,
car park barrier gate

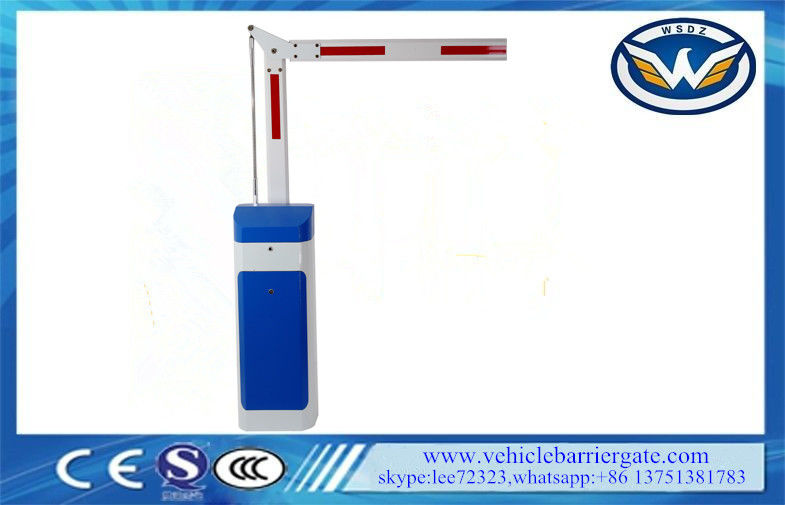

Parking System Automatic Barrier Gate For Parking Fee Payment
|Voltage||AC 220V/110V±10%, 50/60HZ|
|Operation time||3s,6s. Customized|
Galvanized plate or Cold roll plate, 2.0mm thickness sheet
3 years without rust, shedding and fading
|Spring And Bearing||Heat Treatment: more durable, more than 5 million times through operation testing|
Remote Control Distance
|Usually more than 30 meters, if there is less obstacles, even 50 meters or more|
|Packing Size||1020*375*467mm , with seven layers carton case
inside with air bubble film for protection
|Delivery||By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested
1) The humanized clutch device:in case of power off, unlock the clutch device and
raise the boom manufally. By the time the power is supplied, lick the clutch device to
make it working normally again.
2) Special spring device:Both the compression spring and tension spring can be used in
the machine, Using the compression sprin can avoid accidents caused by the tension
3) Three control buttons:for boom raising, falling and pausing.
4) Boom backtrack function:the boom will rise if hits something when falling.
5)Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent
the vehicles from being pressed.
6) Both external and internal loop detectors are supported.
7) "open","close" and "stop" controlling interfaces.
8) RS-485 communication serial interface(optional)
9) Traffic light signal connection device: red light for stop,green light for pass
10) Remote control and wire control for selection.
Each barrier gate will include:
|1 pcs Gate Barrier|
|1 pcs arm boom (from 1m to 6m can customised)|
|1 pcs control panel(built inside)|
|2 pcs remote controllers|
|1 pcs manual book|
Packaging & Shipping
1. Strong carton case with cushion for safety, air bubble film inside for protect ing the apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and express, which according to your detail requirements.
1-Can you install using loop detector or pressure sensor on it?
Yes, the barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have LIFETIME guarantee for our machine core, Wehave our technical team & after- sale
services who can speak fluent Engligh.
3-How long is the leading time?
For standard item
10-50 sets: 3 working days
50-100 sets:5-8 working days
200-500 sets:7-10 working days
For special item, or need custom design package or logo, need 3-7 working days longer
4-How about the payment terms?
TT,western union,paypal, L/C
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can
also choose your own shipping forwarder. it normally takes 7-60 days depend on different
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,according to the different shipping method, they
will be packaged wooden crate
7-Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your requirements,we can make a
design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own techinical team & after- sale services who can speak fluent Engligh.
3. We offer OEM services. Can print your own logo on the products , can customize the retail
box packing and other things.
4. We have very experienced engineers ,can help you better use it.
Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and
has long service life performance, running one million times. And the barrier can work with
parking system very well, and can be used in door and outdoor.
