Product Details:
|
| Name: | 8M Straight Boom Vehicle Barrier Gate Automatic Gate Opener CE | Voltage: | 220V±10%, 110V±10%, 50/60HZ |
|---|---|---|---|
| Rated Power: | 80W | Relative Humidity: | ≤95% Coagulation Free |
| Net Weight: | 60kg | ||
| High Light: | vehicle access control barriers,security barriers and gates,8M Boom Barrier Gate |
||

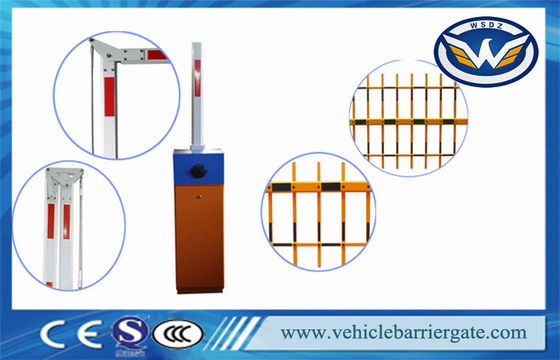

8M Straight Boom Vehicle Barrier Gate Automatic Gate Opener CE
Advantages
1. steady function, sensitive reaction, low noise
2. The case shell is made of thickened steel which is shaped by 13 process flow. Without fading ,waterproofing, not rusty, durable.
3. high sensitive limit switch, pole can be instant turn on and off .accurate location.
4. control system adopts hi-tech digital chip technology.
5. the anti-collision function. Protecting the passenger
6. the inductive function ,with the digital vehicle detector
7. the movements adopts the most steady running mode –non-constant speed mode. Or the variable speed excogitation. (Slow – quick – slow ) .This function makes the operation steady and prolongs the working life.
Specifications
|
Model |
WST1211 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
48kgs |
|
Speed |
1S,1.8S,3S, 6S |
|
Max boom length |
6 meters |
|
Motor Rotational speed |
1400rmp |
|
Protection Degree |
IP44 |
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
Communication with customers
1) Q: Connected power and press open/close button but traffic barrier gate no action?
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check fuse and power in controller |
|
2 |
Battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
|
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?
|
A. |
Reason |
Solution |
|
1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
|
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal
|
Packaging & Shipping
1. Strong carton case with cushion for safety, air bubble film inside for protect ing the apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and express, which according to your detail requirements.
| Market | Revenue(Previous Year) | Total Revenue (%) |
| North America | USD 63,608 | 1 |
| South America | USD 508,869 | 8 |
| Eastern Europe | USD 3,180,436 | 50 |
| Southeast Asia | USD 318,043 | 5 |
| Oceania | USD 127,217 | 2 |
| Mid East | USD 190,826 | 3 |
| Western Europe | USD 1,017,739 | 16 |
| Domestic Market | USD 954,130 | 15 |
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
FAQ:
1-Can you install using loop detector or pressure sensor on it?
Yes, the barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have LIFETIME guarantee for our machine core, Wehave our technical team & after- sale services who can speak fluent Engligh.
3-How long is the leading time?
For standard item
10-50 sets: 3 working days
50-100 sets:5-8 working days
200-500 sets:7-10 working days
For special item, or need custom design package or logo, need 3-7 working days longer
4-How about the payment terms?
TT,western union,paypal, L/C
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,according to the different shipping method, they will be packaged wooden crate
7-Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
8-Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own techinical team & after- sale services who can speak fluent Engligh.
3. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.
4. We have very experienced engineers ,can help you better use it.
