3rd Gen AC Brushless Barrier Gates with Adjustable Speed

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE ISO SGS

Model Number: DZ-2035

Payment & Shipping Terms

Minimum Order Quantity: 2 set

Price: $900/set

Packaging Details: Packed in bubble wrap firstly,and then reinforced with carton for outer packing

Supply Ability: 2000 set/sets per month

Get Best Price
Contact Now
Specifications
Highlight:

3rd Gen AC brushless barrier gate

,

adjustable speed barrier gate

,

vehicle barrier gate with warranty

Model:
DZ-132
Model:
DZ-132
Description
3rd Gen AC Brushless Barrier Gates with Adjustable Speed
Key Features
  • Ultra-Fast Operation: Adjustable running speed from 0.9s to 8s, driven by a 3000 r/min servo motor (no-load speed).
  • All-Weather Durability: Operates reliably from -35°C to +85°C, with IP54 protection class and humidity tolerance of ≤90%.
  • Energy-Efficient: 200W rated power with multi-voltage support (AC200V / AC110V, 50/60Hz).
  • High-Quality Design: Advanced 2nd Gen Servo High-Speed Barrier Gate system for enhanced robustness and precision.
  • Wide Compatibility: Supports 3m–6m boom lengths and a remote control distance of up to 100m (open and sunny weather).
Technical Parameters
Parameter Value
Product Name DC 2nd Gen Servo High-Speed Barrier Gate
Model No. DC-SF-DZ-2035
Driving Method Servo Motor
Dimension 340 × 340 × 1047 × 2.0 (MM)
Power Supply AC200V / AC110V, 50/60Hz
Rated Power 200W
Motor No-load Speed 3000 R/MIN
Running Speed / Opening Time 0.9S–8S
Beam Length / Adaptable Boom Length 3M–6M
Remote Control Distance ≤100M (Open & Sunny Weather)
Protection Class IP54
Humidity ≤90%
Working Temperature -35°C ~ +85°C

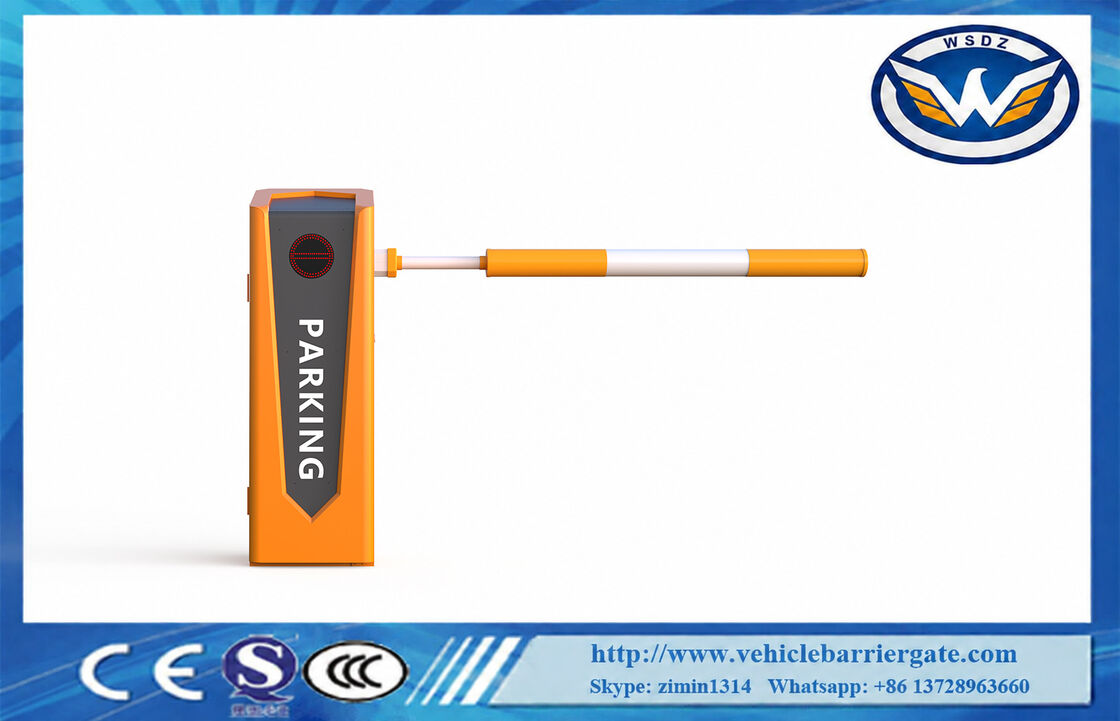

3rd Gen AC brushless barrier gate product overview showing housing and boom assembly
Servo high-speed barrier gate detailed structural view with dimension and component layout
Our Services
Free Services
  1. One year of free service is supplied (excluding the boom arm and remote control).
  2. Lifetime charged service is supplied.
  3. Technical service is supplied.
  4. OEM: we can customize the machine case, color, and logo for you according to your detailed requirements.
  5. Technical support and after-sales service — a long-term relationship between us.
  6. Price is negotiable for large order quantities.
Charged Services
  1. Damage caused by incorrect installation.
  2. Damage caused by improper voltage.
  3. Barrier surfaces damaged by incorrect installation and usage.
  4. Overdue service items that fall outside our warranty promise.
FAQ
Q: Are you a trading company or a manufacturer?

A: We are a professional barrier gate manufacturer with integrated industry and trade operations.

Q: How long is your delivery time?

A: Generally 2–5 days if the goods are in stock, or 5–7 days if the goods are not in stock, depending on quantity. We can ship via DHL, FedEx, TNT, sea, or air according to your requirements.

Q: What payment terms does your company provide?

A: T/T or Western Union.

Q: Do you provide samples?

A: No, we do not provide free samples. The MOQ of our products is 1 pc.
