High Speed RFID Vehicle Barrier Gate For Automatic Car Parking System

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-126

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

vehicle access control barriers

,

security barriers and gates

,

CE Vehicle Barrier Gate

Operation Time:
0.6s, 1s, 1.8s, 3s, 6s
Color::
Yellow, Orange, Blue, Customized Optional
Material:
AC220V 100% Heavy Duty Automatic Barrier Gate For Vehicle Access Control
OEM/ODM:
Supported
Certificate:
CE
Boom Length::
Max 6 Meters
Operation Time:
0.6s, 1s, 1.8s, 3s, 6s
Color::
Yellow, Orange, Blue, Customized Optional
Material:
AC220V 100% Heavy Duty Automatic Barrier Gate For Vehicle Access Control
OEM/ODM:
Supported
Certificate:
CE
Boom Length::
Max 6 Meters
Description

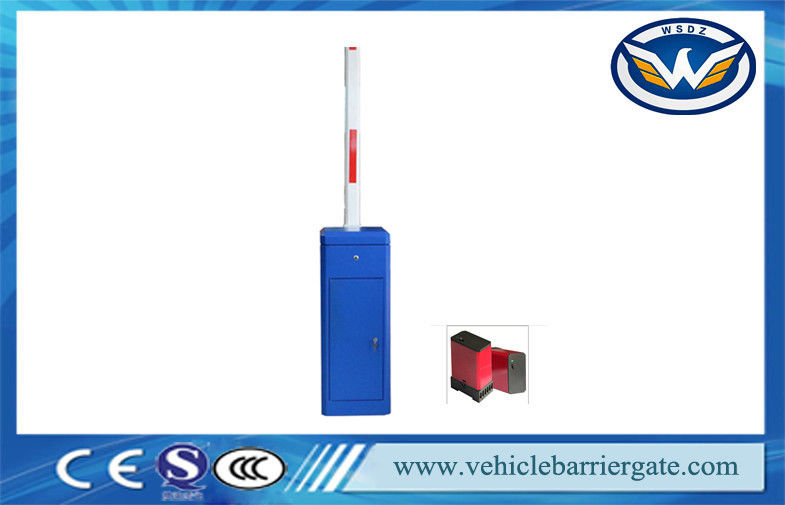

High Speed RFID Vehicle Barrier Gate For Automatic Car Parking System

High Speed RFID Vehicle Barrier Gate For Automatic Car Parking System



Wonsun vehicle barrier is designed using innovative technology and manufactured with precision

machinery to guaarantee satisfaction in quality and reliability for years to come.

Wonsun vehicle barrier  has been lab tested for more than 5 millions opening / closing and still without any degrade in performance. No limit switch design minimizes mechanical wear and enchances barrier life time.

WSTP-126 series can use WONSUN 1st generation machine core




Specifications:



Model



WSTP-126  (WONSUN 1st generation machine core)

Power



120w

Material



Cold roll plate, Galvanized plate or stainless steel

varnish baking, 3 years without fading

Running Time



0.6s, 1s, 1.8s, 3s, 6s

Operating Temperature



-45°C to 75°C

Voltage:



220V ± 10%, 110V ± 10%

Relative Humidity



<90% coagulation free

Motor speed



30r/min

Boom length



Max 6 meters

Net weight:



50Kg

MCBF



≥5, 000, 000 times

Housing Size



320*280*935mm

Traffic light



Optional

Rail material



Aluminum Alloy

Boom Type



Straight arm: Mar 1- 6 meters optional, size 45×100mm  aluminum

 alloy.

Folding arm: 90°folding arm / 180°folding arm, aluminum alloy

Fence arm: Two or three fence arm, Mar1- 6  meters, aluminum alloy

Related accessories



infrared sensors, loop detectors,traffic light, UHF readers

Application



Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block

Advantages



1. quick delivery time, 3-5 days for 50 sets after received advance deposite

2. 7 years OEM/ODM experience

3. quick response for handling problems





Functions & Features:



AC motor is strong and powerful,can easily lift up even with additional singnage installed on to

the barrier arm . AC motor is maintenance free, as there is no carbon in the AC motor, Built in intelligent fan cool the motor during heavy usage.



Wonsun clutch device can be conveniently unlocked to manually open or close the arm

without removing the whole top cover or body housing, Resulting in hassle free operation

and all components inside the barrier body are safe from danger and vandalism.



Sturdy housing, Housing is made with 2.0 mm cold rolled steel sheet for extra durability to

support longer arm. Housing body is coated with epoxy paint for weatherprof protection



Photoelectrical limit switch uses smart motor counter to auto detect open/close position

for higher accuracy and better stability. No more mechianical wear and tear which causes

the arm to tilts up or down



Arm auto reverse. Built in smart collision detection technology  allows arm to auto reverse

when hit with an obstacle during closing to prevent further scratches & dents on the vehicle.

Optional photo beam allows arm to auto reverse earlier before hitting the vehicle..Optional

rubber lining to protect the vehicle from further damages.



Arm swing out, Arm will swing out when hit directly by vehicle to avoid further damage

on the vehicle.



European lever design, European lever design ensure smooth opening arm and reliable

consistent performance for years to come.



Full spare part are manufactured by ourselves, All of the original spare parts are

manufactured by ourselves that can make your barrier gate up deliver and running in

shortest tirre possible.





Market Revenue(Previous Year) Total Revenue (%)
North America USD 63,608 1
South America USD 508,869 8
Eastern Europe USD 3,180,436 50
Southeast Asia USD 318,043 5
Oceania USD 127,217 2
Mid East USD 190,826 3
Western Europe USD 1,017,739 16
Domestic Market USD 954,130 15




Parking & Shipping:



1. Strong carton case with cushion for safety, air bubble film inside for protect  ing the apperance

from damaging.

2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.

3. As for shipping, we can send you the goods by air, sea and express, which according to your

detail requirements.





Each barrier gate will include:



1 pcs Gate Barrier

1 pcs arm boom (from 1m to 6m can customised)

1 pcs control panel(built inside)

2 pcs remote controllers

1 pcs manual book





FAQ:



1. Are you manufacturer or trade company?

We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.



2. What is your MOQ?

As for usual order, there is no MOQ; For OEM order, at least 30 sets.



3. What is your delivery time?

As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.

For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.



4. What is the terms of payment?

30%-40% advance deposite, 60%-70% balance before shipment for large quantity.



5. How long will your gate barrier working?

 Gate barrier life span is 5-10 years.



6. What should we do if there have problems during using?

 My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome

 email or call me! We will provide our best professional service for you.
