|Material:||2mm Cold Roll Plate Or Galvanized Plate||Speed:||0.6s, 1s, 1.5s, 1.8s, 3s, 4s, 5s, 6s, Optional|
|Color:||Epoxy Painting, Can Be Customized||Arm Type:||Straight Arm, Fence Arm And Folding Arm|
|Arm Material:||1.5mm Thickness Aluminium Alloy||Rating Voltage:||AC 220/110V±10%, 50/60Hz|
parking lot gate arms,
automatic car park barriers

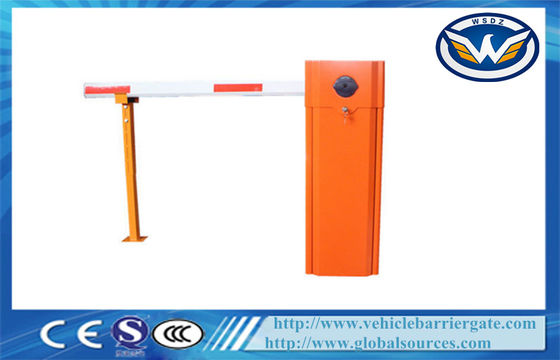

AC220v / 110v Powder Coating Economic Intelligent Barrier Outdoor Or Indoor
|Operation time||0.6s, 1s,1.5s, 1.8s, 3s, 4s, 5s, 6s. Customized|
|Arm Type||Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy
Fence Arm: Two or three fence arm, Max 4.5 meters, aluminum alloy
Folding Arm: 90 or 180 degree folding arm, max 5 meters, aluminum alloy
Galvanized sheet or Cold roll sheets, 2mm thickness, can be heavy duty
Coated with epoxy paint for weatherproof protection
|Spring And Bearing||Heat Treatment: more durable, more than 5 million times through operation testing|
|Rating Voltage||AC 220V/110V±10%, 50/60HZ|
|Remote Control Distance||less than 50 meters|
|Packing Size||1020*375*467mm , strong carton case with cushion
inside with air bubble film for protection
|Delivery||By Sea: big order(more than 100 sets), Cheap, suggested
If urgent, can be delivery by Airplane
|Payment||Sample: full payment
Order: usually 30%-40% advance deposite, balance before shipment
1. quick delivery time, 3-5 days for 50 sets after received advance deposite
2. 7 years OEM/ODM experience
3. quick response for handling problems
Suitable for indoor as well as outdoor parking area at airport, shopping mall,
warehouse,hotel, factories, condominium, car rental companies, etc. It can
also be customized to beused together with any auto-pay ticketing parking
or access control system
1. Mould production with accurate grinding and heat treatment of worm and main rod, which is high accuracy, low comsumption and less noises.
2. Arm Reverse Function: Arm will be automatically reverse when it hits obstacles when closing.
3. Arm Swing Out Function: Arm will be swing out when vehicle hits the arm which can avoid further damage to the vehicle.
4. Cooling Fan Device: It will be automatically opened when the motor works in heavy duty and high temperature.
5. Manual Release Cluntch: When loss of power, it can manually open and close the barrier.
6. Sturdy Housing: 2mm thickness cold roll plate or galvanized plate with expoxy paiting, which can be heavy duty.
7. Anti-freezen oil can make our barrier gate working in -45 degree.
8. Spring sleeve can protect the accessories inside the machine case from damaging by spring broken.
9. Module production with all accessories, can be replced easily, and save cost.
10. Pressure spring can avoid damage casued by tention spring, which is more safety.
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. Are there any problems of your barrier gate?
As for now, don't receive any complaint of quality problems from our customer.
5. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
6. Whta is your Warranty?
Our Warranty is 1 year.
|Machine core||Good in working||1||Main part|
|Barrier arm||Straight, folding or fence arm||1||Optional|
|Boom press board||1||Fixing the boom|
|Self-tapoing screw||ST4*16||Fixing the boom|
|Self-tapoing screw||st3*10||4||Fixing the boom|
|Supporting pole||1||Fupporting the boom|
|Expanion bolt||M16*150||4||Fixing the case|
|Hexagonal Inner Screw||M8*35||4||fixing the case|
|Clutch key||1||clutch device|
|Case Key||2||for case and cover locking|
|Balance spring||According to length of barrier arm||1||for sapre usage|
|Remote emitter||less than 30m is available||1||For remote control|
|Remote conrol handles||less than 30m is available||2||For remote control|
|Instruction||in English||1||For reference|
|Cover head||1||3 years without fading|
|Expanion nut||M8||4||Fixing the supporting pole
|Sea||As for shipment by Sea, we can provide FOB, C&F, CIF, DDP and DDU, which can satisfy all your requirements by Sea|
|Air||As for shipment by Air, if you really need the product for installation, and for airplane, there is length limitation, can not over 3m, so we suggest u not shipping with arm|
|Express||For Express, there is less customer choose it for shipment, because for its price, it is high, but not quicker than Airplane, and also there is limitation of length, but if you want to shipment by Express, we also can provide you this service.|
Contact Person: Wonsun
