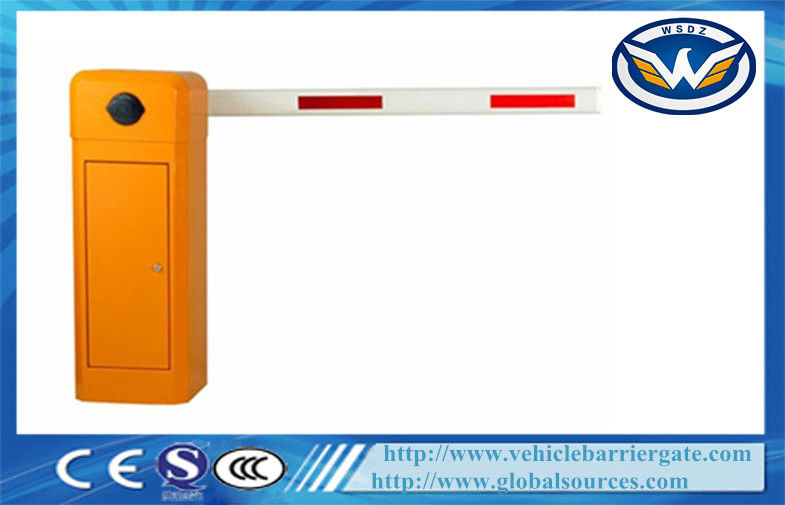

Heavy Duty Gate Arms Barrier Gates With Max 6 Meters Straight Boom

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZTP-133-A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

automatic car park barriers

,

traffic barrier gate

Name:
Heavy Duty Intelligent Barrier Gate With Max 6 Meters Straight Boom Barrier Gate Price
Product Brand:
WONSUN
Rating Power:
120W
Max Boom Length:
8 Meters
Payment:
1.) 30% T/T As Deposit In Advance And 70%T/T Before Loading
Delivery Time:
Delivery The Guardrail In10days After Receiving The Deposit
Name:
Heavy Duty Intelligent Barrier Gate With Max 6 Meters Straight Boom Barrier Gate Price
Product Brand:
WONSUN
Rating Power:
120W
Max Boom Length:
8 Meters
Payment:
1.) 30% T/T As Deposit In Advance And 70%T/T Before Loading
Delivery Time:
Delivery The Guardrail In10days After Receiving The Deposit
Description
Heavy Duty Gate Arms Barrier Gates With Max 6 Meters Straight Boom



Heavy Duty Intelligent Barrier Gate Arms Barrier Gates With Max 6 Meters Straight Boom



Intelligent Barrier Gate

1. steady function, sensitive reaction, low noise

2. The case shell is made of thickened steel which is shaped by 13 process flow. Without fading, waterproofing is not rusty and is durable.

3. High-sensitive limit switch, the pole can be instantly turned on and off accurate location.

4. The control system adopts hi-tech digital chip technology.

5. the anti-collision function. Protecting the passenger

6. the inductive function, of the digital vehicle detector

7. the movements adopt the most steady running mode –non-constant speed mode. Or the variable speed excogitation. (Slow – quick – slow). This function makes the operation steady and prolongs the working life.





Intelligent Barrier Gate Model Selection and Differences



Heavy Duty Gate Arms Barrier Gates With Max 6 Meters Straight Boom 0




Intelligent Barrier Gate Specifications



Intelligent Barrier Gate Model

WST1211

Intelligent Barrier Gate Working Temperature

-40℃~+75℃

Intelligent Barrier Gate Voltage

220V±10%, 110V±10%, 50/60HZ

Intelligent Barrier Gate Rated power

80W

Intelligent Barrier Gate Relative humidity

≤90%

Intelligent Barrier Gate Remote control distance

≥30m

Intelligent Barrier Gate Net weight

48kgs

Intelligent Barrier Gate Speed

1S,1.8S,3S, 6S

Intelligent Barrier Gate Max boom length

6 meters

Intelligent Barrier Gate Motor Rotational speed

1400rmp

Intelligent Barrier Gate Protection Degree

IP44




Intelligent Barrier Gate Communication with customers

1)     Q: Connected power and pressed the open/close button but the traffic barrier gate did not action.



A

Reason

Solution

1

Fuse blown

Check the fuse and power in the controller

2

The battery of the remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click the OPEN/CLOSE button on the control box

4

Same frequency interference

Check photocell and loop detector


2) Q: Connected power and press the open/close button, the traffic barrier gate will move but even when it is in the right position, the motor still runs and does not stop.



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to the correct position

2

Main controller failure

Change a new one


3)   Q: The motor running but the traffic barrier gate arm is not in action?



A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock the clutch and manually rotate the arm to a horizontal or vertical position then try again

2

The tension of the balancing spring is not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing, traffic barrier gate arm cannot reach the right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open the barrier door and unlock the clutch to check when the arm is at 90° vertical position if the master rod covers slave one; when the arm is at 180° horizontal position if the master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal







Intelligent Barrier Gate

Market Revenue(Previous Year) Total Revenue (%)
North America USD 63,608 1
South America USD 508,869 8
Eastern Europe USD 3,180,436 50
Southeast Asia USD 318,043 5
Oceania USD 127,217 2
Mid East USD 190,826 3
Western Europe USD 1,017,739 16
Domestic Market USD 954,130 15





Why choose us?



1. OEM Brand, Logo, Label available
2. 1-Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you the best support
4. Detailed installation manual and wiring diagram to make everything easy
5. Fast finishing time for you to become more competitive in your local market :3-5 days for small orders.
