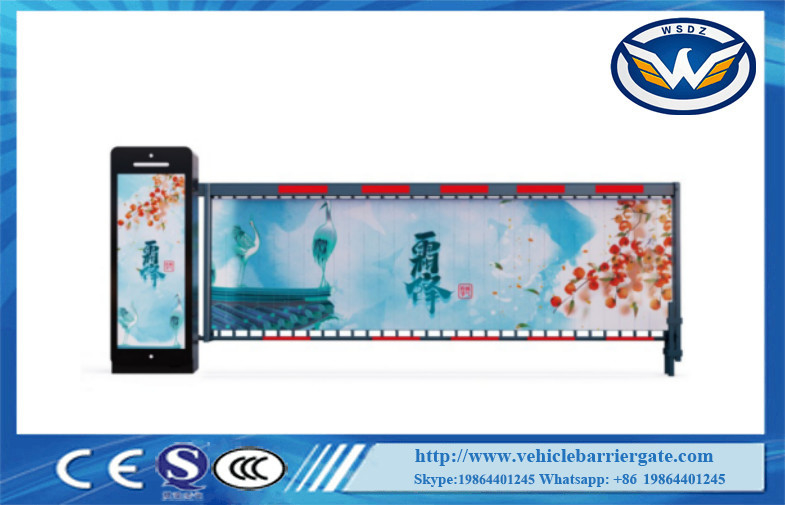

Heavyweight Brushless Advertising Gate For Commercial Areas And Residential Areas

Product Details

Place of Origin: CHINA

Brand Name: WONSUN

Certification: CE

Model Number: DZ-2332

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: $579/Set

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing

Delivery Time: 5-8 work day

Payment Terms: L/C, T/T, Western Union

Supply Ability: 3000 Set/Sets per Month

Get Best Price
Contact Now
Specifications
Highlight:

Heavyweight Brushless Advertising Gate

,

Residential areas Brushless Advertising Gate

,

Commercial areas Brushless Advertising Gate

Name:
Heavyweight Brushless Advertising Gate
Boom Length:
3~4 Meters
Net Weight:
48kg
Power Supply:
DC24V/AC110v/AC220v;50/60HZ
Speed:
2.5sec~8sec
Fetures:
Heavy Duty, Swing Out, Remote Control
Name:
Heavyweight Brushless Advertising Gate
Boom Length:
3~4 Meters
Net Weight:
48kg
Power Supply:
DC24V/AC110v/AC220v;50/60HZ
Speed:
2.5sec~8sec
Fetures:
Heavy Duty, Swing Out, Remote Control
Description
Heavyweight Brushless Advertising Gate For Commercial Areas And Residential Areas

Heavyweight Brushless Advertising Gate can be wildly use in Commercial areas and residential areas



product description

Model No. DZ-2332 Heavyweight Brushless Advertising Gate
Framework Material Cold-roll sheet
Beam Aluminum alloy
Dimension 460 * 380 * 1280mm
Net Weight 48KG
Input Interface Photo cell, loop detector, parking system,wire control
Input 12V relay signal or Pulse Wide>100MS
Power Supply DC24V/AC110v/AC220v;50/60HZ
Motor Consumption 200W
Working Temperature -35°C to +65°C
Relative Humidity ≥90%
MCBF 5million time
Push Button Support
Remote Control Two button remote transmitter, Distance≤100m
Optional Accessories Loop detector; IR photo cell
Beam Length 3M - 4M
Opening/Close Time

2.5sec~8sec



Functions and Features:

1 The running speed can be adjusted from (2.5sec-8sec)

2 Arm direction can be quickly interchanged

3 Barrier gate up and down signal relay switch output

4 External loop detector signal anti-smashing interface

5 Infrared sensor signal anti-smashing interface

6 R&G Traffic light relay switch signal output

7 Count mode interface

8 Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage on the vehicle barrier machinery core

9 High-sensitivity Arm auto reverse function(intensity can be adjusted)

10 Parking system interface

11 RS485 communication interface

12 Power off the backup battery interface

13 Automatic Arm lift function when power off(need to add more power storage module)



Heavyweight Brushless Advertising Gate For Commercial Areas And Residential Areas 0Heavyweight Brushless Advertising Gate For Commercial Areas And Residential Areas 1Heavyweight Brushless Advertising Gate For Commercial Areas And Residential Areas 2Heavyweight Brushless Advertising Gate For Commercial Areas And Residential Areas 3Heavyweight Brushless Advertising Gate For Commercial Areas And Residential Areas 4



Heavyweight Brushless Advertising Gate For Commercial Areas And Residential Areas 5Heavyweight Brushless Advertising Gate For Commercial Areas And Residential Areas 6





FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.



7-Can you do OEM service?

We offer below OEM services:

1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.

2)Can print your logo on turnstiles, can customize the retail box packing and other things.


8-Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-tranied and passional sales & after- sale services who can speak fluent English language
3. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.

4. We have very experienced engineers ,can help you better use it.
