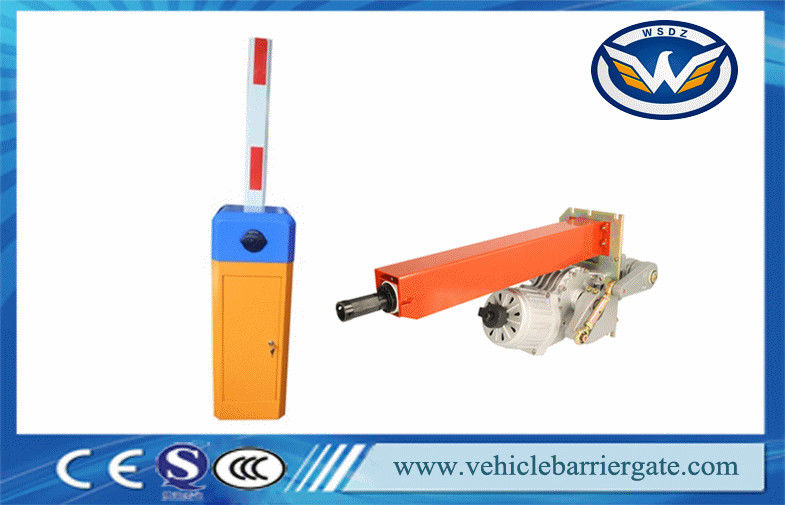

Alarm Flashing Straight Arm Automatic Barrier Gate Light Highway Toll

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WST-1201

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

electric barrier gate

,

car park barrier gate

Name:
Alarm Flashing Straight Arm Automatic Barrier Gate Light Highway Toll
Arm Type:
Straight Arm, Folding Arm, Fence Arm, Optional
Housing Material:
2mm Cold Roller Steel Plate
Open / Close Time:
1s, 1.8s, 3s, 6s
Power Supply:
AC 220V / 110V
Remote Control Distance:
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More
Name:
Alarm Flashing Straight Arm Automatic Barrier Gate Light Highway Toll
Arm Type:
Straight Arm, Folding Arm, Fence Arm, Optional
Housing Material:
2mm Cold Roller Steel Plate
Open / Close Time:
1s, 1.8s, 3s, 6s
Power Supply:
AC 220V / 110V
Remote Control Distance:
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More
Description
Alarm Flashing Straight Arm Automatic Barrier Gate Light Highway Toll

Alarm Flashing Straight Arm Automatic Barrier Gate Light Highway Toll


 Basic Features:



1. Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life.

2. Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-running, slow-stopping.

3. It is running without arm-shaking.

4. The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.

5. Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation.

6. The driving mechanism has the desiging of intelligent overheating protection system, in frequent use, it can control the warming of the motor, makes the motor not burned easily.

7. The main engine adopts mechanical limit switch and photoelectric limit switch dual protection, to avoid the problems caused by using traditional magnetic switch which is easily interfered by the external environment.

8. Barrier gae tcan be chosen from 1m to 6m.



Advanced Features:



1. Manual release device to operate the barrier when power failure

2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Motor cooling fan to avoid the over-heating possibility

4. Automatic reversing when the barrier boom meets the obstruction

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. RS485 Communication Module is compatible




Model Selection and Differences



Model Boom Shape Max Boom Length Speed
WST1201 Straight boom 6m 6 seconds
WST1202 Straight boom 4.5m 3 seconds
WST1203 Straight boom 3m 1s 1.8second
WST12021 90 degree, Articulated boom 5m 6 seconds
WST12022 90 degree, Articulated boom 3m 3 seconds
WST12061 180 degree, Articulated boom 5m 6 seconds
WST12062 180 degree, Articulated boom 3m 3 seconds
WST12082 Two-level, fence boom 4.5m 6 seconds
WST12081 Three level, fence boom 4m 6 seconds






What is the davantages of Wonsun barriers?


1)The humanized clutch device:in case of power off, unlock the clutch device and raise the boom manufally. By the time the power is supplied, lick the clutch device to make it working normally again.
2)Special spring device:Both the compression spring and tension spring can be used in the machine, Using the compression sprin can avoid accidents caused by the tension spring.
3)Three control buttons:for boom raising, falling and pausing.
4)Boom backtrack function:the boom will rise if hits something when falling.
5)Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.
6)Both external and internal loop detectors are supported.
7)"open","close" and "stop" controlling interfaces.
8)RS-485 communication serial interface(optional)
9)Traffic light signal connection device: red light for stop,green light for pass.
10)Remote control and wire control for selection.



Specifications


Model
Item

WST115 WST115
Opening Time 3S 6S
Boom Type Straight, square-shaped
Boom Length 3M 4M
Voltage 110V/220V
Motor/Power AC/120W
Working Temperature -35℃ - 75℃
Protection Grade IP44
Remote Control Distance 30M~100M



Applications:

Automatic boom barrier adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.



With WONSUN, your job gets easier.


Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.


Our Car Park Barriers Packing List



Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole




Why choose us?



1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining  authority of this product instruction and service article belong to the production factory.





Market Revenue(Previous Year) Total Revenue (%)
North America USD 63,608 1
South America USD 508,869 8
Eastern Europe USD 3,180,436 50
Southeast Asia USD 318,043 5
Oceania USD 127,217 2
Mid East USD 190,826 3
Western Europe USD 1,017,739 16
Domestic Market USD 954,130 15





Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?



A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?



A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position
