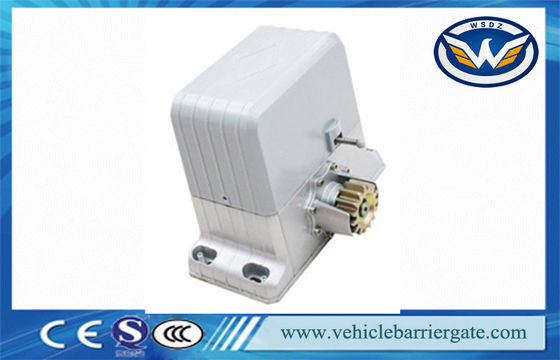

Residential Sliding Gate Motor Electric Automatic remote control

Name: Residential Sliding Gate Motor Electric Automatic remote control
Brand: WONSUN
SKU: WSTP120
Rating: 4.9 (107 reviews)

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP120

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      automatic sliding gate opener, electric sliding gate motor


Max Loading Weight:	1500kg	Power Supply Range:	AC220V/110V±10% 50/60Hz
Open(close) Speed:	V=12m/min	Rated Power:	200w
Working Temperature Of Motor:	-25 To +55 Celsius Degree	Output Gear Module:	M=4

Max Loading Weight:	1500kg
Power Supply Range:	AC220V/110V±10% 50/60Hz
Open(close) Speed:	V=12m/min
Rated Power:	200w
Working Temperature Of Motor:	-25 To +55 Celsius Degree
Output Gear Module:	M=4

Description

Residential Sliding Gate Motor Electric Automatic remote control

specifications:

Power supply range: AC220V/110V±10% 50/60Hz
Net weight: 8.5kg
Max loading weight: 1500kg
Working temperature of motor: -25 to +55 Celsius degree
Working humidity: ≤85%
Rated power: 200w
Output gear module: M=4
Output gear number: Z=16
Open(close) speed: v=12m/min
Maximum pull: 1100N
Package one set in one carton

Each kit includes:

1 x motor
2 x remote controllers
1 x control panel
1 x base plate
2 x magnets
1 x user's manual

Functions of sliding gate operators:

Totally integrated electrical mechanical system (excludes racks)
Control board interface for optional impact-proof infrared photocells
Alarm lamp interface
Automatic delayed closing
Adjustable resistance sensitivity
Auto gate stop and re-open when an obstacle is encountered
Wireless remote control or wired remote control are optional

Sliding gate operators description:

Single phase
Speed up to 600mm per second
Manual override release clutch
Basic features means easy to set up
Soft starting and stopping function
All electric enclosed in a protective enclosure
100% duty cycle

Others information of sliding gate opener:

Guarantee time: 1 year
Delivery deadline: 8 days delivery after receive your payment
Package: 1 set in a standard carton packing
Minimum order

Packing list
Name	Quantity	Unit	Remark
Sliding gate operator	1	set	Necessary
Remote control	2	pcs	Necessary
Internal hexangular bolt	4	pcs	M8*40
Internal hexangular bolt	4	pcs	M6*16
Left limit iron	1	pcs	Necessary
Right limit iron	1	pcs	Necessary
Base board	1	pcs	Necessary
Release key	2	pcs	Necessary
Manual	1	pcs	Necessary
Infrared photocell	1	set	Optional
Radio emitter	1	set	Optional

AC Motors are looking at the quality of the used oil from a 5-star average rating in each of such

quality,price,design and quiet operation. Remote Operation Known that flawless quality. The motor,

remote door version of the company's success. Most find that after installation due to more than two

years without a loss. And no fussy time applications such as motor noise. Door ajar The main

farthest distance using a remote is more than 50 meters in general use,and more than 100 meters

in open space. Never heard of the door flows into the motor locked rotor Stopper, which is why it

can not be unlocked with Manual, which lead to customer dissatisfaction. Another advantage of

the motor and out the door is a Soft-Start will not jump like BSM brand or multiple brands in our

model, which is a block away, making noise and reduced motor life. If the cost and quality of the

product, I recommend this product I purchased. Do not worry that it will live up to your expectations?

Customers. Do not fight it later The company's product Willing to submit to foreign countries such as

Myanmar,Laos without having to worry about losing customers or customer relationships offline.
