Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTT661
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |

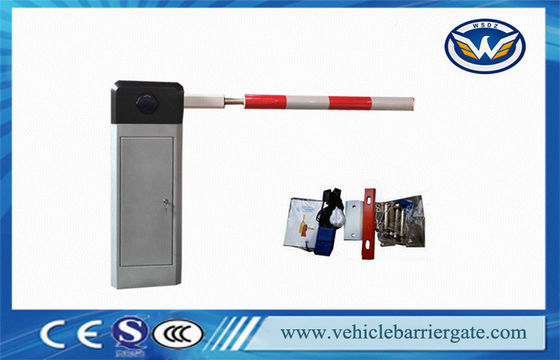

6s Remote Control Folding Type 8m Boom Straight Boom Barrier Gate |
Item Number: |
WSTP115 |
Material: |
2mm Cold Rolled Steel Sheet |
Remote Distance: |
>30m |
Color: |
Grey Or Black Can Be Customized |
Name: |
6s Remote Control Folding Type 8m Boom Straight Boom Barrier Gate |
Item Number: |
WSTP115 |
Material: |
2mm Cold Rolled Steel Sheet |
Remote Distance: |
>30m |
Color: |
Grey Or Black Can Be Customized |
Quick Detail:
1)Power:AC220C±10V,50/60HZ
2)Machine core:Automatic, 1st generation machine core
3)Operating Temperature:-45℃-60℃
4)Relative Humidity:≤95%, No Condensation
| Running time | 1 sec | 3 sec | 6 sec | 3 sec | 6 sec | 3 sec | 6 sec | 3 sec | 6 sec |
| Boom type | Straight | 90°folding | 180°folding | 2 fence | 3 fence | ||||
| Max boom length | 3m |
4.5m
|
6m | 3m | 5m | 3m | 5m | 4.5m | 4m |
| Boom weight | 3kg | 4.5kg | 5kg | 6.5kg | 8kg | 9kg | 11kg | 7kg | 7.5kg |
Operation time:0.6s, 1s, 1.8s, 3s,4s,6s. Customized
Arm Type:Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy
Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy
Material:Galvanized plate or Cold roll plate, 2.0mm thickness sheet
3 years without rust, shedding and fading
Size:320*280*935 mm
Spring And Bearing:Heat Treatment: more durable, more than 5 million times through operation
testing
Rating Power:120W
Communication with customers
1. Motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or not, if yes, change a new one.
b. Please check whether the balance spring is overused and distorted. If yes, change a new one.
b. Please check whether the balance spring is overused and distorted.If yes, change a new one, or
spin
bottom adjust nut.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please chek it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is enough or not.
5. There is no reaction when pressing the remote controller buttons.
a, Please check whether the power is supplied to the barrier gate or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and the control board are accordant
or not.
6 There is no reaction on the motor when the user changes a control board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not.
