Payment & Shipping Terms:
|Name:||Falling Protection Easy Maintenance Reliable Highway Automatic Traffic Barrier Gate 50 / 60H||Weight:||55kg|
|Warranty:||1 Year||Communication Interface:||RS485|
|Operation Time:||0.6s,1s.1.8s.3s.6s||Working Temperature:||-40°C~60°C|
driveway barrier gates,
folding barrier gate

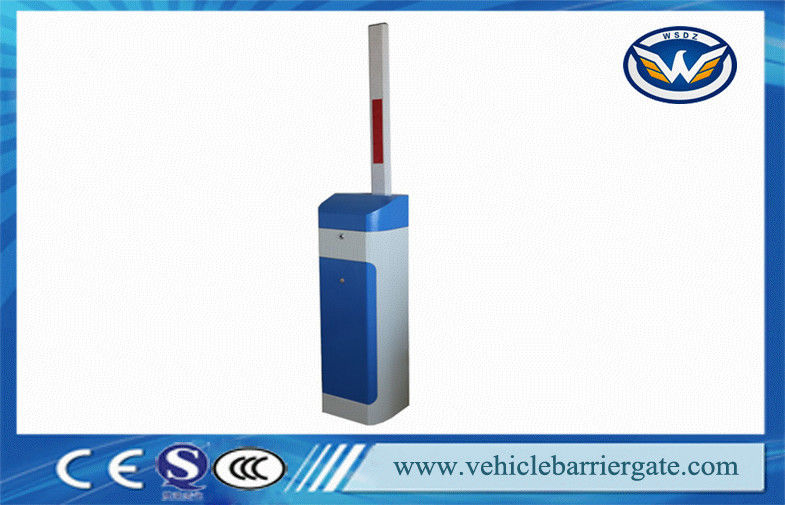

Reliable Highway Barrier Gate Operator 50 / 60H Easy Maintenance
WONSUN BARRIER GATE employs special torque motor and master controller with high integration and stong logic function. Multiple working modes to meet different demands and several interfaces for external device.
1. The master controller employs the hi-reliable microprocessor
a. high integration and strong logic function
b. multiple operation modes available
c. several interfaces for external devices available
2. The core technology employs the special AC220V torque motor
a. maintenance-free motor, work normally under extremely climates
b. use sine generator to reduce mechanical failure greatly
c. power protection in case of instant heavy current, voltage fluctuation
3. All-round safety protection
a. collision prevention
b. LED traffic signal (optional)
c. infrared ray protection (optional)
d. remote control (optional)
e. falling protection (optional)
Package: export standard wood carton
Delivery date: 7-10 days after payment confirmed
Payment terms: 50% T/T in advance, the balance 50% paid before shipment
OEM/ ODM service acceptable
Communication with customers
1. Motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or not, if yes, change a new one.
b. Please check whether the balance spring is overused and distorted. If yes, change a new one.
b. Please check whether the balance spring is overused and distorted.If yes, change a new one, or spin
bottom adjust nut.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please chek it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is enough or not.
5. There is no reaction when pressing the remote controller buttons.
a, Please check whether the power is supplied to the barrier gate or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and the control board are accordant or not.
6 There is no reaction on the motor when the user changes a control board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not.
