Product Details
Place of Origin: CHINA
Brand Name: WONSUN
Certification: CE
Model Number: DZ-830
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Sets/Month
Driving Method: |
3rd Generation DC Brushless |
Running Speed: |
1.5 Sec To 6 Sec |
MTBF: |
Over 5 Million Times |
Adaptation Of Arm: |
Straight Max Barrier Arm 6M, Two Fence Max Barrier Arm 4.5M, Three Fence Max Barrier Arm 4M |
Driving Method: |
3rd Generation DC Brushless |
Running Speed: |
1.5 Sec To 6 Sec |
MTBF: |
Over 5 Million Times |
Adaptation Of Arm: |
Straight Max Barrier Arm 6M, Two Fence Max Barrier Arm 4.5M, Three Fence Max Barrier Arm 4M |

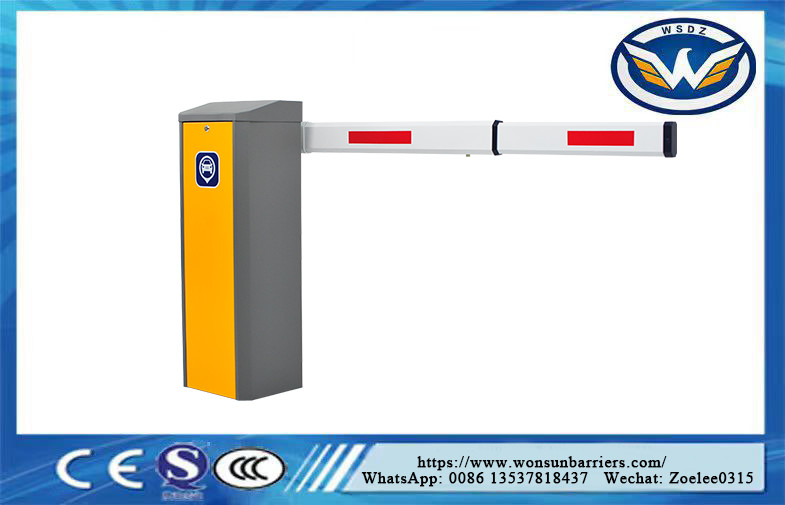

24V DC Brushless Motor Fast Speed Parking Access Control Barrier Gate
Product Description
DZ-830 adopts 3rd generation brushless motor, which uses the latest mold design technology, mold die-casting manufacturing technology and brushless control speed regulation technology. The arm left and right interchangeable quickly. No clutch design is convenient to use. The movement adopts two-stage worm gear drive, curved crank with three-link structure, the speed of opening and closing is fast and stable. Easy maintenance and long service life.
Features & Functions
| ☆Advanced mechatronics Side-mounted design concept: structure compact, quickly assembly, easy maintenance. |
| ☆Molding production: high precision, fast efficiency, and guaranteed quality. |
| ☆Worm-gear secondary variable speed transmission: high precision, long lifetime, motor wheel design, gate opening manually when power off, no blocking, no oil leakage, large torque, low noise, can normally operation at the temperature of minus 35 degrees, etc. |
| ☆DC brushless motor design: low consumption, high efficiency, no overheating, wide speed adjustment. |
| ☆Hall limit: automatically detects the limit when power on without debugging, detecting the motor speed at all times and running at a constant speed and stable. |
| ☆ Curved triple connecting rod structure design concept, makes arm in a vertical and horizontal position, easy to adjust the arm balance, avoid to lift arm violently. |
| ☆Arm direction quickly interchanged: interchanged according to different directions on construction site, reduce inventory and capital pressure. |
| ☆Advanced DC brushless controller: use integrated chip drive, fast processing speed, large memory, good control effect, powerful function, high degree of automation; 24V low voltage power supply, adapt to global voltage, safe and reliable. |
| ☆Arm direction can be quickly interchanged. |
| ☆Barrier gate up &down signal relay switch output. |
| ☆R&G Traffic light relay switch signal output. |
| ☆External loop detector signal anti-smashing interface. |
| ☆Infrared sensor signal anti-smashing interface. |
| ☆Count mode interface. |
| ☆Arm swing-out function, when the vehicle hit the barrier gate, the arm can be swung out to avoid further damage to the vehicle and barrier machine core. |
| ☆High-sensitivity arm auto-reverse function (intensity can be adjusted). |
| ☆Parking system interface. |
| ☆RS485 communication interface. |
| ☆The backup battery interface. |
| ☆Automatic arm lift function when power off (need to add power storage module). |
