Product Details
Place of Origin: CHINA
Brand Name: Wonsun
Certification: CE
Model Number: WSTP-101/102
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: The outside is a strong cardboard box, and the inside is filled with foam to wrap the product. We will cover the outside of the carton with a film to make it waterproof.
Delivery Time: 7 Workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 3000PCS
Power Supply: |
110V/220~230V AC |
Color: |
BLUE,gray |
Usage: |
Universal,residential Sliding Gates,Industrial Sliding Gate,Industrial Door Operator |
Name: |
Sliding Gate Operator,Sliding Gate Opener Sliding Door Motor Sliding Gate Motor |
Application: |
Sliding Door.Industrial Door |
Protection Class: |
IP55 |
Environment Temperature: |
-25°C ~ +55°C |
Limit Switch: |
Magnetic Limit Switch Or Spring Limit Switch |
Certification: |
CE |
Voltage: |
220 V / 110 V |
Power Supply: |
110V/220~230V AC |
Color: |
BLUE,gray |
Usage: |
Universal,residential Sliding Gates,Industrial Sliding Gate,Industrial Door Operator |
Name: |
Sliding Gate Operator,Sliding Gate Opener Sliding Door Motor Sliding Gate Motor |
Application: |
Sliding Door.Industrial Door |
Protection Class: |
IP55 |
Environment Temperature: |
-25°C ~ +55°C |
Limit Switch: |
Magnetic Limit Switch Or Spring Limit Switch |
Certification: |
CE |
Voltage: |
220 V / 110 V |

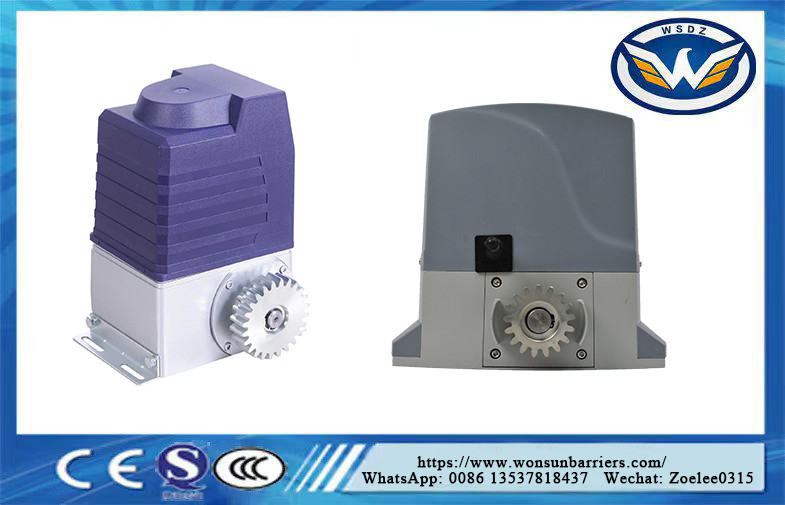

Intelligent Automatic Sliding Gate Opener With Steel Rack And Clutch Structure
Product Overview
This is a conventional sliding gate operator, with brand-new design, brand-new clutch structure, fashionable exterior design and new control technique, making the motor more humanistic. Furthermore, the Integrated electromechanical design and the streamlined appearance also make our product look more fashionable and elegant.
Function and Features
| ☆Integrated structure of the mechanic and electron. No need to install other controllers. |
| ☆Electronic soft-start. |
| ☆Automatically restraining when meets obstacle 4.4. Crash proof and automatically restraining socket. |
|
☆Crash proof (photocell). |
|
☆Alarm light socket. |
| ☆Infrared sensor signal anti-smashing interface. |
|
☆Line control and Remote control are optional. |
| ☆Intelligent automatic heating function. |
| ☆Automatically increase the temperature when the temperature is below 0 degree. |
Technical Parameters
| Model | WSTP-101 | WSTP-102 | ||
| Voltage | 220V±10% | 110V±10% | 220V±10% | 110V±10% |
| Frequency | 50Hz | 60Hz | 50Hz | 60Hz |
| Current | 2A | 4.5A | 2.7A | 5.8A |
| Motor Voltage | AC220V/110V | AC220V/110V | ||
| Capacitor | 18μF | 60μF | 20μF | 60μF+14μF |
| Power | 250W | 350W | ||
| Absorbed Power | 440W | 495W | 594W | 638W |
| Torque | 22.5nm | 35nm | ||
| Mode Number | M=4 | M=4 | ||
| Motor Speed | 1350rpm | 1620rpm | 1350rpm | 1620rpm |
| Reduction Ratio | 23:1 | 23:1 | ||
| Gear Speed | 58.5rpm | 70.2rpm | 58.5rpm | 70.2rpm |
| Travel Speed | 11m/min | 13.2m/min | 11m/min | 13.2m/min |
| Working Temperature | -40℃~+55℃ | -40℃~+55℃ | ||
| Overload Protection Temperature | 130℃ | 130℃ | ||
| Relative Humidity | ≤90% | ≤90% | ||
| Motor Making Technique | Die casting aluminum alloy | Die casting aluminum alloy | ||
| Manual Release | Yes | Yes | ||
| Remote Distance | ≥30m | ≥30m | ||
| Product Gross Weight, Approx | 14kg | 14kg | ||
| Max Weight of Gate | 1000kg | 2000kg | ||
