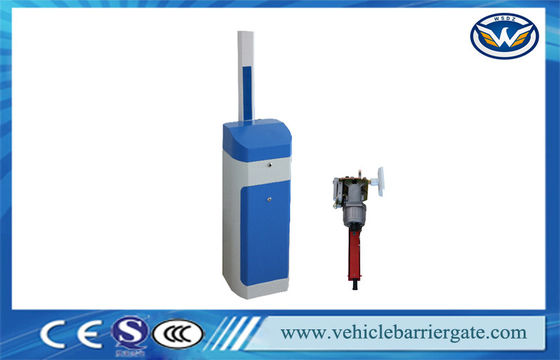

Remote Control automatic car barrier system Heavy Duty / Electric Motor security gate barriers

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-129

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

driveway barrier gates

,

folding barrier gate

Features:
Heavy Duty, Manual Release, Swing Out, Remote Control
Housing Dimension:
320 * 280 * 935 Mm
Housing Material:
2mm Cold Roller Steel Plate
Color:
Yellow, Orange, Blue,customized Optional
Model Number:
Remote Control Car Heavy Duty Security Electric Motor Automatic Gate Barrier
OEM/ODM:
Supported
Features:
Heavy Duty, Manual Release, Swing Out, Remote Control
Housing Dimension:
320 * 280 * 935 Mm
Housing Material:
2mm Cold Roller Steel Plate
Color:
Yellow, Orange, Blue,customized Optional
Model Number:
Remote Control Car Heavy Duty Security Electric Motor Automatic Gate Barrier
OEM/ODM:
Supported
Description
Remote Control automatic car barrier system Heavy Duty / Electric Motor security gate barriers



Remote Control automatic car barrier system Heavy Duty / Electric Motor security gate barriers



WONSUN SUMMER PROMOTION: BUY 20 SETS, GET 1 FOR FREE

IF INTEREST, PLEASE CONTACT ME FREELY

SKYPE: zimin1314

Whatsapp: +86 18507481610





Quick details:



1) Beam length: <=6m

2) Opening (Closing) time: 1s, 1.8s,3s, 6s

3) Machine core working temperature: -40 degrees to +75 degrees

4) Electric working temperature: -20 degrees to +75 degrees

5) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz

6) Rated power: 120W

7) Relative humidity: <=90%

8) Remote control distance: <=30m

9) Net weight: 55KGS





Functions:


1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle,
Auto-closing
7) Support the INFRARER PHTOCELL for anti-bumping function (optional)
8) Support the external and internal VEHICLE LOOP DETECTOR (optional)
9) Traffic light interface
10) Wire control (switch signal)/ Remote control (418MHZ)
11) RS485 communication module (optional)





They are sereval features that make it different ,as follows:

1) The top of cover is square and it looks elegant.
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Torque motor,steady,low noise,long life
5) This barrier gate provides optional case color as yellow/orange/white/red/blue
6) This automatic barrier gate provides optional boom arm direction as leftward/rightward
7) This type of barrier could match with direct boom( pole) , fold boom or fence boom.





Each barrier gate will include:



1 pcs Gate Barrier

1 pcs arm boom (from 1m to 6m can customised)

1 pcs control panel(built inside)

2 pcs remote controllers

1 pcs manual book

1 pair photocell( optional)

1 loop detector( optional)

1 RS485( optional)





FAQ:



1. When barrier finish closing, why does the arm open itself slowly?

  • the spring is too tight, you need release the spring a little, then test it again.
  • see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
  • reset the balance position and the electrical limit switch.



2. Why does the controller panel operate with "Di Di Di" abnormal noises?

  • As for this, it means the resistance on controller board is broken, if you have professional tools to check,
  • then replace that broken resistance, if not, replace that controller panel.



3. Why does the barrier finish half operation of opening and closing?

  • If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.



4. When barrier closed, why is there a 5 degree angle of inclination?

  • the model is not good, and the gear doesn't fit each other tightly.
  • the barrier didn't adjust well, need to reset.



5. When barrier finish open, but it closes itself without any order control, what's the problem?

  • To check the loop cable first, because the loop cable maybe brokem
  • To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.



Service items


1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.





Application


Suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse, hotel, factories, condominium, car rental companies, etc. It can also be customized to be used together with any auto-pay ticketing parking or access control system
