24V BLDC Automatic Barrier Gate Arm Speed Adjustable With Fence Boom

24V BLDC Automatic Barrier Gate Arm Speed Adjustable With Fence Boom
24V BLDC Automatic Barrier Gate Arm Speed Adjustable With Fence Boom
24V BLDC Automatic Barrier Gate Arm Speed Adjustable With Fence Boom 24V BLDC Automatic Barrier Gate Arm Speed Adjustable With Fence Boom 24V BLDC Automatic Barrier Gate Arm Speed Adjustable With Fence Boom 24V BLDC Automatic Barrier Gate Arm Speed Adjustable With Fence Boom 24V BLDC Automatic Barrier Gate Arm Speed Adjustable With Fence Boom

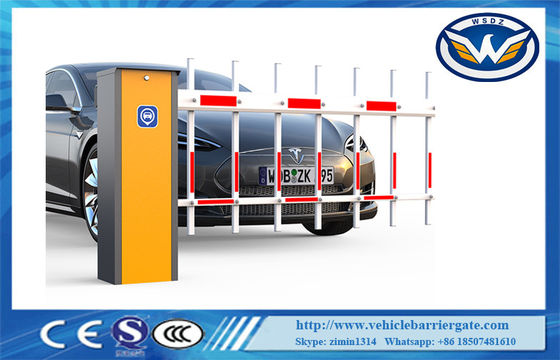

Large Image :  24V BLDC Automatic Barrier Gate Arm Speed Adjustable With Fence Boom

Product Details:
Place of Origin: shenzhen,China
Brand Name: WONSUN
Certification: CE ,ISO
Model Number: DZ-220B
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.(Vehicle Barrier Gate DC 24V Brushless Barrier Gate 6M Telescopic arm )
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 piece per month

24V BLDC Automatic Barrier Gate Arm Speed Adjustable With Fence Boom

Description
Rated Voltage:: DC24V Housing Thickness: 1.5mm
Running Speed: 2.5s-8s Relative Humidity: ≤70%
Product Name: 24V BLDC Barrier Gate Automatic Barrier Gate Arm Speed Adjustable With Fence Boom IP: IP 54
High Light:

24V BLDC Automatic Barrier Gate

,

IP 54 Automatic Barrier Gate

,

BLDC motor fence boom barrier

Speed Adjustable Intelligent Barrier Parking Lot Barrier Gate 24VDC Brushless Motor Anti-crash





Product overviw:



The brushless DC motor is composed of a motor main body and a driver. It is a typical mechatronic
product. It has the characteristics of small size, low noise, high efficiency, wide speed range, and
small steady-state speed error. The fifth-generation gearbox dedicated for barrier gates, multiple
speed ratios to choose from, stable operation, customized gear transmission with higher efficiency
and high stability, is more and more praised by the market.





Automatic Barrier Parameters:



Working temperature -35~+65℃
Power supply 24V DC
Open/close speed 2.5s to 6s
Rated power 150W
Driving method DC brushless motor
Output torque 59.6N.m
Protection grade IP54

Rated speed

1400rpm

Relative humidity

≥85%

Remote control distance

≤100M(in the open place)

Rated current

9.5A





Vehicle Barrier Gate Features:



1 The running speed can be adjusted from 2.5s to 8s

2 Can be quickly interchanged

3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

4 Curved crank arm three- link movement structure, the operation is stable

5 Wireless remote control control open/close

6 Auto reverse function(force adjustable)

7 Infrared photocells connector is available

8 Loop detector connector is available.

9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

10 Connector for traffic light(AC220V,power less than 40W)





5th BLDC motor general technical conditions:

1. Normal insulation resistance: the insulation resistance of the motor is not less than
100MΩ;
2. Electric strength: between the conductive part of the motor and the shell should be
able to withstand 1760VAC/min without breakdown;
3. Motor temperature rise: ≤75K;
4. Motor noise: ≤55dB;
5. Work system: S1 work system;
6. Protection level: IP54;
Insulation class: Class A





Precautions:

1. Follow the correct wiring method to avoid the motor not rotating or burning.
2. The motor should not be overloaded and locked for a long time to avoid
excessive temperature rise.
3. Don't disassemble and assemble the assembled gear reducer casually, so as to
avoid the entry of sundries or the bad gear meshing and make noise.
4. When connecting the output shaft of the motor and the gear reducer to the load,
it cannot be struck or squeezed by gravity, so as to avoid internal deformation and
misalignment, resulting in serious noise or jamming.
5. The lead wire of the motor cannot be pulled with force to avoid electric shock
accidents.
6. Avoid touching the rotating parts when the motor is running to avoid human
injury; the motor casing should be well grounded.

Service Items

Motor is one year warraty, remote and arm do not have warranty.
