Automatic Sliding Gate Motor Magnet Limit Quick Release DC24V 1500kg

Name: Automatic Sliding Gate Motor Magnet Limit Quick Release DC24V 1500kg
Brand: Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd
SKU: WSTP120
Price: 214.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP120

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      slide gate motor, automatic sliding gate opener


Power Supply Range:	AC220V/110V±10% 50/60Hz	Max Loading Weight:	1500kg
Open(close) Speed:	V=12m/min	Rated Power:	200w
Working Temperature Of Motor:	-25 To +55 Celsius Degree	Output Gear Module:	M=4

Power Supply Range:	AC220V/110V±10% 50/60Hz
Max Loading Weight:	1500kg
Open(close) Speed:	V=12m/min
Rated Power:	200w
Working Temperature Of Motor:	-25 To +55 Celsius Degree
Output Gear Module:	M=4

Description

Automatic Sliding Gate Motor Magnet Limit Quick Release DC24V 1500kg

Automatic Sliding Gate Opener Magnet Limit Quick Release DC24V

specifications:

Power supply range: AC220V/110V±10% 50/60Hz
Net weight: 8.5kg
Max loading weight: 1500kg
Working temperature of motor: -25 to +55 Celsius degree
Working humidity: ≤85%
Rated power: 200w
Output gear module: M=4
Output gear number: Z=16
Open(close) speed: v=12m/min
Maximum pull: 1100N
Package one set in one carton

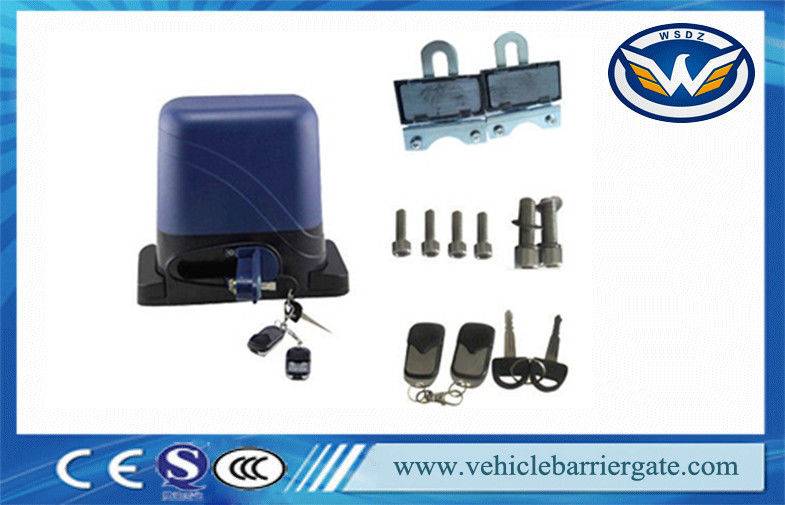

Each kit includes:

1 x motor
2 x remote controllers
1 x control panel
1 x base plate
2 x magnets
1 x user's manual

Functions of sliding gate operators:

1.) Totally integrated electrical mechanical system (excludes racks)

2.) Control board interface for optional impact-proof infrared photocells

3.) Alarm lamp interface

4.) Automatic delayed closing

5.) Adjustable resistance sensitivity

6.) Auto gate stop and re-open when an obstacle is encountered

7.) Wireless remote control or wired remote control are optional

Sliding gate operators description:

Single phase
Speed up to 600mm per second
Manual override release clutch
Basic features means easy to set up
Soft starting and stopping function
All electric enclosed in a protective enclosure
100% duty cycle

Others information of sliding gate opener:

Guarantee time: 1 year
Delivery deadline: 8 days delivery after receive your payment
Package: 1 set in a standard carton packing
Minimum order

Packing list
Name	Quantity	Unit	Remark
Sliding gate operator	1	set	Necessary
Remote control	2	pcs	Necessary
Internal hexangular bolt	4	pcs	M8*40
Internal hexangular bolt	4	pcs	M6*16
Left limit iron	1	pcs	Necessary
Right limit iron	1	pcs	Necessary
Base board	1	pcs	Necessary
Release key	2	pcs	Necessary
Manual	1	pcs	Necessary
Infrared photocell	1	set	Optional
Radio emitter	1	set	Optional
