Wires / Remote Control Delay Closing Electric Sliding Gate Motor 1000-1800KG

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP120

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

slide gate motor

,

electric sliding gate motor

Power Supply Range:
AC220V/110V±10% 50/60Hz
Max Loading Weight:
1500kg
Open(close) Speed:
V=12m/min
Rated Power:
200w
Working Temperature Of Motor:
-25 To +55 Celsius Degree
Output Gear Module:
M=4
Power Supply Range:
AC220V/110V±10% 50/60Hz
Max Loading Weight:
1500kg
Open(close) Speed:
V=12m/min
Rated Power:
200w
Working Temperature Of Motor:
-25 To +55 Celsius Degree
Output Gear Module:
M=4
Description

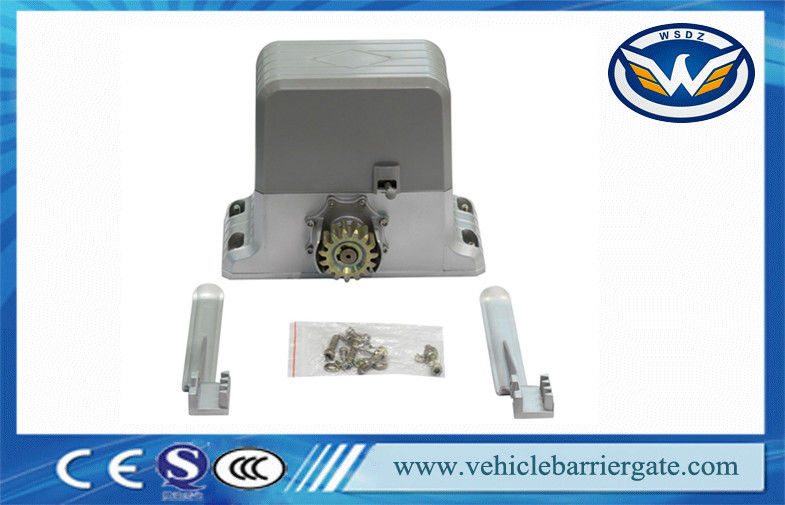

Wires / Remote Control Delay Closing Electric Sliding Gate Motor 1000-1800KG

Delay Closing Sliding Gate Motor Wires Control And Remote Control



Quick Detail:



Name: Slide Gate motor, home automation:
1. fascinating design
2. heavy duty

3. operating doors of 1000-1800KG





Functions and Features :





1) Integrated mechanical and electrical, all functions on one controller

2) Radio controller or lines to control open, close and stop functions

3) Magnetic limit switch, the door stops when it moves to the limit

4) Accurate limit braking

5) Electronic soft-start

6) Dialing switches to adjust the motor rotation in both directions

7) Open and close limits have a self-locking function

8) Intelligent operation - if an obstacle is detected when the door is closing, it will reverse to open, then after 10seconds it attempts to close automatically unless you press the stop keystroke

9) Movement indication - the indicator lights up when the door is moving

10) Optional line control or remote control(418MHZ)







Description:



1) Working temperature: -40 degrees - +55 degrees

2) Rated voltage: 220V(10%), 50Hz/60Hz; 110V(10%), 50Hz/60Hz

3) Rated power: 350W

4) Work mode: Sa = 25%

5) Relative humidity: 90%

6) Emote control distance: <=30M

7) Gear module: M = 4

8) Gear Number: Z = 22

9) Gear rpm: 48

10) Speed: 13. 4m/min

11) Torsion axis: 36Nm

12) Maximal pull: 930N

13) Maximum door weight: <=1,800kg

14) Main material: Aluminum alloy and steel



Others information of sliding gate opener:

  • Guarantee time: 1 year
  • Delivery deadline: 8 days delivery after receive your payment
  • Package: 1 set in a standard carton packing
  • Minimum order

Packing list

Name

Quantity

Unit

Remark

Sliding gate operator

1

set

Necessary

Remote control

2

pcs

Necessary

Internal hexangular bolt

4

pcs

M8*40

Internal hexangular bolt

4

pcs

M6*16

Left limit iron

1

pcs

Necessary

Right limit iron

1

pcs

Necessary

Base board

1

pcs

Necessary

Release key

2

pcs

Necessary

Manual

1

pcs

Necessary

Infrared photocell

1

set

Optional

Radio emitter

1

set

Optional
