Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP120
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Power Supply Range: |
AC220V/110V±10% 50/60Hz |
Max Loading Weight: |
1500kg |
Open(close) Speed: |
V=12m/min |
Rated Power: |
200w |
Working Temperature Of Motor: |
-25 To +55 Celsius Degree |
Output Gear Module: |
M=4 |
Power Supply Range: |
AC220V/110V±10% 50/60Hz |
Max Loading Weight: |
1500kg |
Open(close) Speed: |
V=12m/min |
Rated Power: |
200w |
Working Temperature Of Motor: |
-25 To +55 Celsius Degree |
Output Gear Module: |
M=4 |

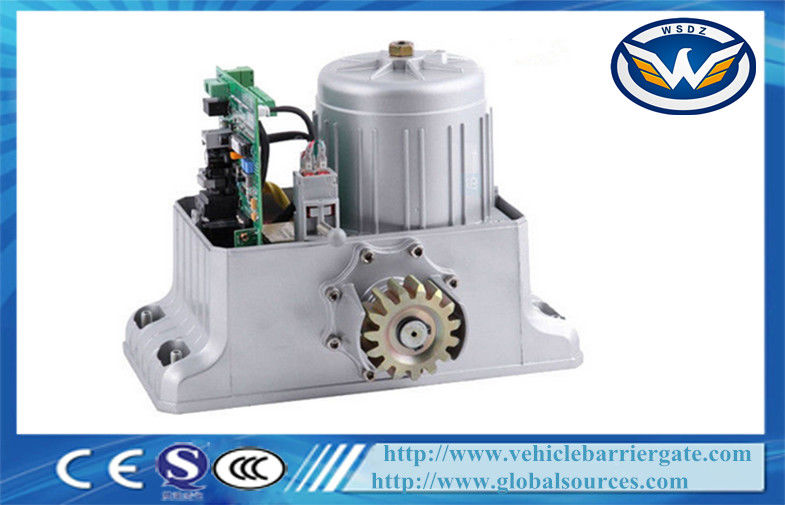

Sliding Gate operator Absorbed Power 594W Alarm Light Socket
specifications:
ModelItem |
WSTP120 |
|
Voltage |
220V± 10% |
110V± 10% |
Frequency |
50Hz |
60Hz |
Current |
2,7A |
5.8A |
Motor voltage |
AC 220V/110V |
|
Capacitor |
20μ F |
60μ F+14μ F |
Power |
350W |
|
Torque |
35nm |
|
Motor number |
M=4 |
|
Motor speed |
1350rpm |
1620rpm |
Gear speed |
58.8rpm |
70.2rpm |
Travel speed |
11m/min |
13.2m/min |
Working temperature |
-40°C~55°C |
|
Overload protection temperature |
130°C |
|
Motor making technique |
Die casting aluminum alloy |
|
Manual Release |
Yes |
|
Remote distance |
≥ 30m |
|
Net weight |
10kg |
|
Max, weight of gate |
1800kg |
Each kit includes:
Functions of sliding gate operators:
Sliding gate operators description:
Packing list |
|||
Name |
Quantity |
Unit |
Remark |
Sliding gate operator |
1 |
set |
Necessary |
Remote control |
2 |
pcs |
Necessary |
Internal hexangular bolt |
4 |
pcs |
M8*40 |
Internal hexangular bolt |
4 |
pcs |
M6*16 |
Left limit iron |
1 |
pcs |
Necessary |
Right limit iron |
1 |
pcs |
Necessary |
Base board |
1 |
pcs |
Necessary |
Release key |
2 |
pcs |
Necessary |
Manual |
1 |
pcs |
Necessary |
Infrared photocell |
1 |
set |
Optional |
Radio emitter |
1 |
set |
Optional |
