Product Details:
|
| Rated Voltage：: | DC24V | Drive Motor: | 4th DC Brushless Motor |
|---|---|---|---|
| Rated Speed: | 36r/min | Running Speed: | 1.2s-3s, 3s-8s |
| Product Name: | Automatic Barrier Gate Rfid Reader Car Parking System Parking Entrance Loop Sensor Barrier Gate | Rated Torque: | 47 N*m |
| High Light: | Automatic Barrier Gate 150W,IP54 Automatic Barrier Gate,Brushless Motor Car Parking Gate |
||

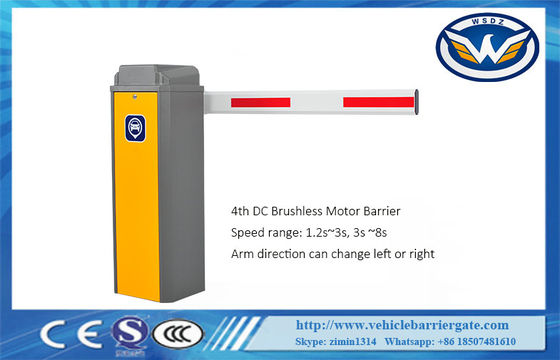

Automatic Barrier Gate Rfid Reader Car Parking System Parking Entrance Loop Sensor Barrier Gate
Product Overview:
Brushless DC motor is composed of motor body and driver. It is a typical mechatronic integration product.
It is characterized by small volume, low noise, high efficiency, wide speed regulation range and small
steady-state speed error. The fourth-generation reducer that dedicated to the barrier gate, a variety of
speed ratio can be selected, stable operation, customized gear transmission efficiency is higher, high
stability, more and more respected by the market.
Automatic Barrier Gate Technical parameters:
| Working temperature | -35~+65℃ |
| Power supply | 24V DC |
| Open/close speed | 2.8s to 6s |
| Rated power | 150W |
| Driving method | DC brushless motor |
| Output torque | 56.8N.m |
| Protection grade |
IP54 |
Automatic Barrier Gate Features:
1 The running speed can be adjusted from 3s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
Motor performance parameters:
| Motor type | Rated voltage(V) | No-load characteristic | ||||
| GDMW90/60-250-24-18S09C | 24 | No-load current(A) | No-load speed(/min) | Rated current(A) | Rated speed(r/min) | Rated torque(N*m) |
| ≤2.5 | 42 | 14.9 | 36 | 47 | ||
Matters needing attention:
1. According to the correct wiring method, in order to avoid the motor does not turn or burn the motor;
2. The motor should not be overloaded and blocked for a long time to avoid too high temperature rise;
3. The assembled gear reducer should not be disassembled casually, so as to avoid debris entering or noise
caused by poor gear meshing;
4. When the shaft of motor and gear reducer is connected with load, it can not be gravity knocked or squeezed,
so as not to cause internal deformation, serious noise or stuck phenomenon;
5. Do not drag the lead wire of the motor to avoid electric shock accident;
6. Avoid touching the rotating part when the motor is running, so as not to cause human injury; Motor housing
should be in good condition.
Automatic Barrier Gate FAQ:
Q1.How about payment terms our company provide?
A: T/T
Q2.Which is your min order?
A: 1 piece
Q3.Model color size and craft for all barrier gates can be customized?
A: Yes, we can, welcome OEM & ODM. We also can put logo of your company on product
