Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Features: |
Run Speed Adjustable, Battery Supported |
Operation Time: |
0.6,0.9,3,6sec |
Protection System(IP): |
IP55 |
Working Environment Temperature: |
-40 ℃ ~ +85 ℃ |
Product Name: |
WONSUN Servo Motor 24V Barrier Gate 200W DC Motor Vehicle Barrier Gate |
Driving Method: |
Servo Motor |
Features: |
Run Speed Adjustable, Battery Supported |
Operation Time: |
0.6,0.9,3,6sec |
Protection System(IP): |
IP55 |
Working Environment Temperature: |
-40 ℃ ~ +85 ℃ |
Product Name: |
WONSUN Servo Motor 24V Barrier Gate 200W DC Motor Vehicle Barrier Gate |
Driving Method: |
Servo Motor |

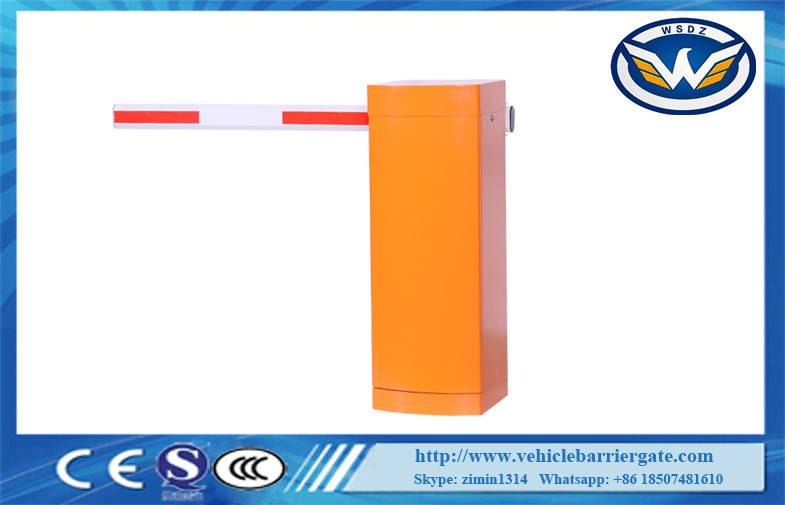

WONSUN Servo Motor 24V Barrier Gate 200W DC Motor Vehicle Barrier Gate
| Boom Type(meter) | Operation Time(seconds) | Boom Height(meter) |
| 80*45mm≥2.5m | 0.6S | 0.83m |
| 80*45mm≥3m | 0.9S | 0.83m |
| 100*45mm≥4.5m | 3S | 0.83m |
| 100*45mm≥6m | 6S | 0.83m |
| 80*45mm 90°boom≥3m | 1.8S | 0.83m |
| 80*45mm 90°boom≥3.5m | 3S | 0.83m |
| 80*45mm 90°boom≥5m | 6S | 0.83m |
| 80*45mm 180°boom≥3m | 1.8S | 0.83m |
| 80*45mm 180°boom≥4m | 6S | 0.83m |
| 80*45mm 180°boom≥5m | 6S | 0.83m |
| 100*45mm 2 fence boom≥3.5m | 3S | 0.83m, small vertical boom length is 0.8m, landing boom length 0.9m |
Vehicle Barrier Gate Functions and Features
1. Open and close speed adjustable
2. Arm direction Left and Right can change easily
3. When power off, manual open and close arm, and lock itself.
4. Wireless remote
5. Photocell I0 port output
6. Loop detector anti-collision I0 output
7. Open and close control input
8. 12V traffic light output
9. Traffic light signal output
10. Open and close limit signal output
11.Counting (fleet) input RS485 communication input
12. 24V battery input port
13. Delay close arm function(1-300 sec. Adjustable)
14. Open and close arm speed deceleration function
15. One-key setting arm type with corresponding speed
16. Arm auto reverse function ( Force adjustable)
17. Anti-collision alarm function (additional sensors and alarms are required)
When setting the function, please press the menu button on the control panel. The digital tube displays H00-00 or H00-other numbers. We correspond to the function parameter table code to enter the required function parameter setting. For example, H00-00 is the boom speed adjustment, and then press the confirm button Enter the parameter setting, the number will be displayed on the digital tube, and then press the up or down key to set the required open speed number, and then press the confirm button to complete the open speed setting.
The other function settings are the same as the example settings.
| MENU NO. | Parameter scale | Parameter name | Default | Unit | Remark |
| H00-00 | 10-100 | Maximum speed of open arm | 25 | Percentage; the default maximum speed of the motor is 2000RPM | |
| H00-01 | 10-100 | Maximum speed of close arm | 25 | Percentage; the default maximum speed of the motor is 2000RPM | |
| H00-02 | 5-40 |
Minimum speed of open arm |
5 | Percentage; the default maximum speed of the motor is 2000RPM | |
| H00-03 | 5-40 | Minimum speed of close arm | 5 | Percentage; the default maximum speed of the motor is 2000RPM | |
| H00-04 | 50-420 |
Open arm deceleration |
20.0 | The smaller the parameter, the faster the speed; 50 means 5.0 degrees |
| 1:EFF-01 | Check the motor or wiring. | Generally, the motor or the motor wire is not connected properly. |
| 2. EFF-02 | The voltage is lower than 22.0V | the switching power supply or the battery voltage is not enough |
| 3. EFF-03 | The load is too heavy or the drive board is damaged, and the motor wiring is wrong. | Check whether the motor wires are in good contact, and replace the drive. Or load |
| 4. EFF-04 | If the limit is not reached for 5 consecutive times | Reset the limit point, or eliminate the problem of the limit device |
| 5. EFF-05 | Occurs during self-inspection, or the motor is stuck or the load is too heavy |
FAQ:
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according
to quantity.We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union.
Q: Do you provide free samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pcs.
If you have any question, please contact us freely!
