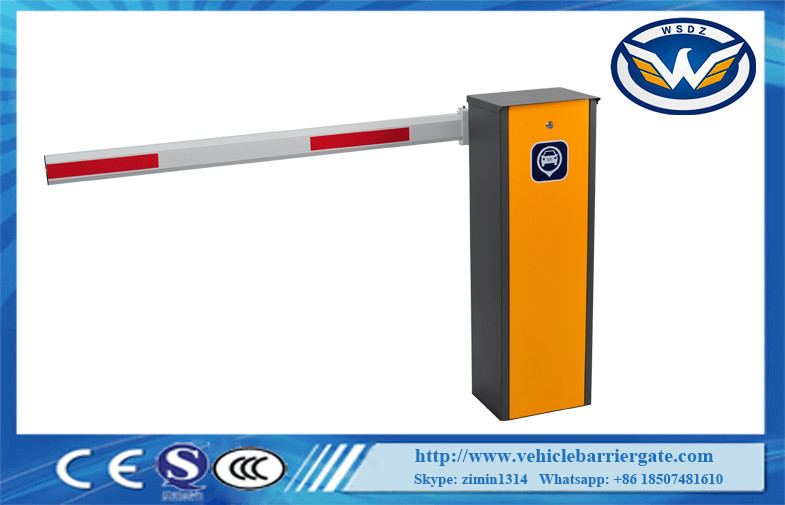

Anti Collision DC24V Heavy Duty Automatic Barrier Gate With 6m Retractable Arm

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-220B Automatic Barrier Gate

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: vehicle Barrier Gate Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

DC24V Heavy Duty Automatic Barrier Gate

,

Anti Collision Automatic Barrier Gate

,

6m Retractable Arm Automatic Barrier Gate

Running Speed:
2.5sec-6sec Speed Adjustable
Driving Method:
Dc Brushless Motor
Brand:
-30℃~+70℃
IP:
44
Rated Power::
150W
Remote Control Distance::
≤100M(in The Open Place)
Running Speed:
2.5sec-6sec Speed Adjustable
Driving Method:
Dc Brushless Motor
Brand:
-30℃~+70℃
IP:
44
Rated Power::
150W
Remote Control Distance::
≤100M(in The Open Place)
Description
Anti Collision DC24V Heavy Duty Automatic Barrier Gate With 6m Retractable Arm

Anti-collision DC24V Heavy Duty Automatic Barrier Gate With 6m Retractable Arm​

1.Product Overview

Thank you for purchasing the 5th generation brushless motor barrier gate from WONSUN. This product

adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control

speed regulation technology, left and right interchangeable quickly, no clutch design, more reliable quality,

more convenient to use, the movement adopts two-stage worm gear drive, Three-curved connection rod

structure, and the arm works fast and stable. Easy maintenance and long service life.





2. Selection of spring



The spring is stretchable one and

the specification is as follows:



Diameter 4.0MM green color

            Diameter 4.5MM red color

Diameter 5.5MM blue color

Diameter 6.8MM yellow color

       Diameter 7.0MM white color

3. Features

3.1 The running speed can be adjusted from 2.5s to 8s

3.2 Arm can be quickly interchanged.

3.3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

3.4 Curved crank arm three- link movement structure, the operation is stable

3.5 Wireless remote control control open/close

3.6 Auto reverse function(force adjustable)

3.7 Infrared photocells connector is available

3.8 Loop detector connector is available.

3.9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

3.10 Connector for traffic light(AC220V,power less than 40W)

3.11 Offering dry contact signal for car parking system(COM,NC,NO)

3.12 Auto-delay when closing(adjustable)

3.13 RS485 or CAN network communication interface(no need to install module)

3.14 Counting interface

3.15 24V backup battery interface(Can be charged by using solar energy)( optional)

3.16 Arm open when power off ( add backup battery) (Optional)

3.17 Anti-collision alarm device

4.Technical parameters

4.1 Working temperature(motor): -30℃~+70℃

4.2 Rated voltage:DC24V

4.3 Running speed:2.5s-8s

4.4 Rated current:9.5A

4.5 Rated power:150W

4.6 No-load speed:1850rpm

4.7 Rated speed:1400rpm

4.8 Rated torque:59.6N.m

4.9 Relative humidity:≥85%

4.10 Remote control distance:≤100M(in the open place)

4.11 IP Degree:IP44

4.12 Max length of arm:6M





5.The parameter for selecting the spring

Arm type Arm length Use of spring
Type Dimension(Wire Diameter*Length)
100*45 Straight arm 6m Tension spring 4.5+5.5
5m 4.0+5.5
4.5m 4.5+4.5
4m 4.5+4.0
3.5m 4.5
3m 4.5
80*45Straight arm 6m 5.5+4.0
5m 5.5+4.0
4.5m 4.5+4.5
4m 4.5+4.0
3.5m 4.5
3m 4.0
Two fence arm 4.5m 5.5+5.5
4m 4.5+5.5
3.5m 4.5+4.5
3m 4.5+4.5
90 degree arm 5m 5.5+4.5
4.5m 5.5+4.5
4m 4.5+4.5
3.5m 4.5+4.5
3m 4.5+4.0
Three fence arm 4.5m 5.5+6.8
4m 5.5+5.5
3.5m 4.5+5.5
3m 4.5+4.5
Remark:6.8 yellow,5.5 blue,4.5 red,4.0 green


(the parameter is based on the company’s arm)





Anti Collision DC24V Heavy Duty Automatic Barrier Gate With 6m Retractable Arm 0



Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
