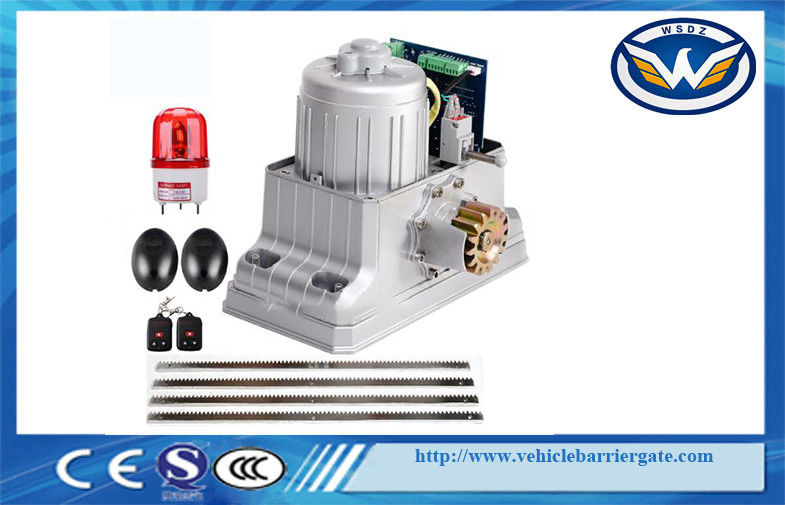

Automatic sliding door motor description
| Voltage |
220V± 10% |
110V± 10% |
| Frequency |
50Hz |
60Hz |
| Current |
2,7A |
5.8A |
| Motor voltage |
AC 220V/110V |
| Capacitor |
20μ F |
60μ F+14μ F |
| Power |
350W |
| Torque |
35nm |
| Motor number |
M=4 |
| Motor speed |
1350rpm |
1620rpm |
| Gear speed |
58.8rpm |
70.2rpm |
| Travel speed |
11m/min |
13.2m/min |
| Working temperature |
-40°C~55°C |
| Overload protection temperature |
130°C |
| Motor making technique |
Die casting aluminum alloy |
| Manual Release |
Yes |
| Remote distance |
≥ 30m |
| Net weight |
10kg |
| Max, weight of gate |
1800kg |
Functions of Sliding gate opener:
1) Integrated mechanical and electrical, all functions on one controller
2) Radio controller or lines to control open, close and stop functions
3) Magnetic limit switch, the door stops when it moves to the limit
4) Accurate limit braking
5) Electronic soft-start
6) Dialing switches to adjust the motor rotation in both directions
7) Open and close limits have a self-locking function
8) Intelligent operation - if an obstacle is detected when the door is closing, it will reverse to open,
then after 10seconds it attempts to close automatically unless you press the stop keystroke
9) Movement indication - the indicator lights up when the door is moving
10) Optional line control or remote control
Automatic sliding door motor Packaging& Shipping
| Packing list |
| Name |
Quantity |
Unit |
Remark |
| Sliding gate operator |
1 |
set |
Necessary |
| Remote control |
2 |
pcs |
Necessary |
| Internal hexangular bolt |
4 |
pcs |
M8*40 |
| Internal hexangular bolt |
4 |
pcs |
M6*16 |
| Left limit iron |
1 |
pcs |
Necessary |
| Right limit iron |
1 |
pcs |
Necessary |
| Base board |
1 |
pcs |
Necessary |
| Release key |
2 |
pcs |
Necessary |
| Manual |
1 |
pcs |
Necessary |
| Infrared photocell |
1 |
set |
Optional |
| Radio emitter |
1 |
set |
Optional
|
Automatic sliding door motor services:
1) Guarantee time: 1 year
2) Delivery deadline: 8 days delivery after receive your payment
3) Package: 1 set in a standard carton packing
4) Minimum order:1 set
Automatic sliding door motor FAQ:
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop
detector is right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check
whether it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same
with the code of the control panel.
Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact us freely.
